BF9.9 AX SAS (BABS) - Honda Outboard Engine, Made in Japan (SN: BABS-1400001 - BABS-1499999) CYLINDER HEAD Parts Diagram

Outboard Engine, Made in Japan

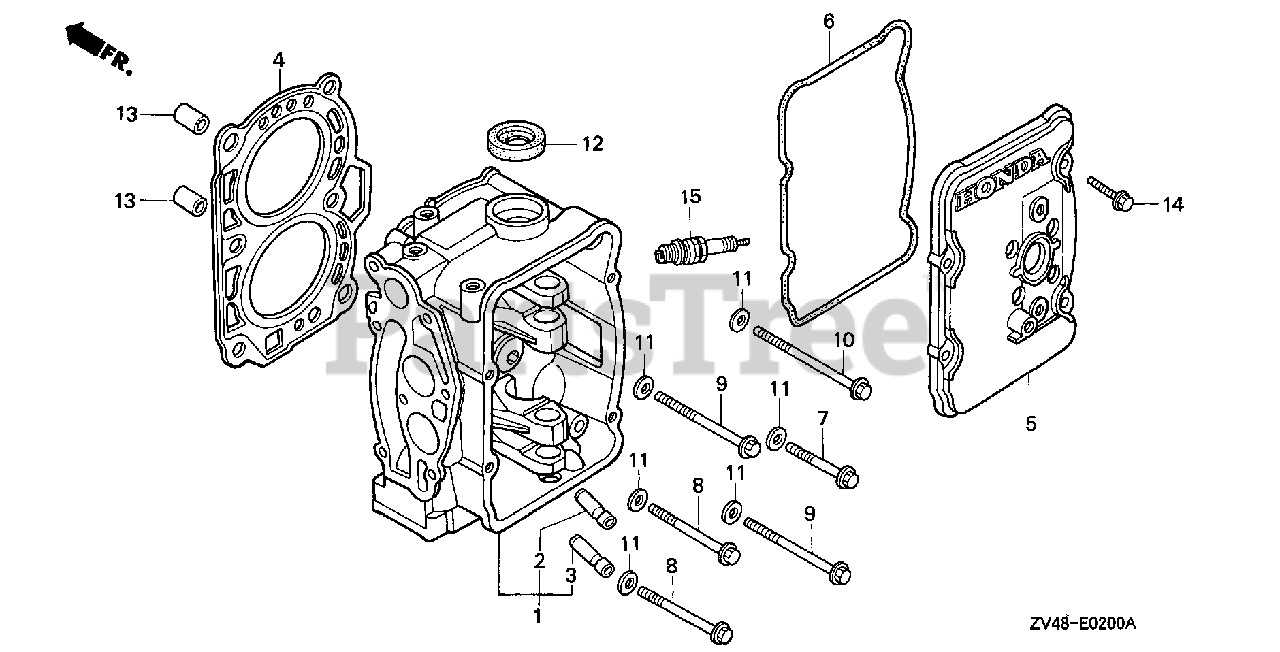

CYLINDER HEAD Parts Diagram

  • Title

1

Honda 12200-ZV4-010ZA

CYLINDER HEAD *NH8* (DARK GRAY)

$

$

Not available

2

Honda 12204-ZV4-315

GUIDE, VALVE (OVER SIZE)

$

$

Not available

3

Honda 12205-ZV4-315

GUIDE, EX. VALVE (OVER SIZE)

$

$

Not available

4

Honda 12251-ZV4-610

GASKET, CYLINDER HEAD

$82.99

$

Usually ships in 3-6 days

0

5

Honda 12301-ZV4-000ZA

COVER, CYLINDER HEAD *NH8* (DARK GRAY)

$

$

Not available

6

Honda 12391-ZV4-000

GASKET, HEAD COVER

$

$

Not available

7

Honda 90008-ZV4-000

BOLT, FLANGE (8X57)

$

$

Not available

8

Honda 90009-ZV4-000

BOLT, FLANGE (8X72)

$

$

Not available

9

Honda 90010-ZV4-000

BOLT, FLANGE (8X77)

$

$

Not available

10

Honda 90011-ZV4-000

BOLT, FLANGE (8X87)

$

$

Not available

11

Honda 90402-822-000

WASHER, HEAD (8MM)

$1.99

$

In Stock, Qty 5

0

12

Honda 91215-PHR-003

SEE PART DETAILS - PRI; OIL SEAL (18X30X7) (NOK)

$15.99

$

Usually ships in 3-6 days

0

13

Honda 94301-10160

PIN, DOWEL (10X16)

$3.49

$

In Stock, only 3 left!

0

14

Honda 95701-06022-02

BOLT, FLANGE (6X22)

$1.99

$

Usually ships in 3-6 days

0

15

Honda 98066-55716

SPARK PLUG (DR-5HS) (NGK)

$5.49

$

In Stock, Qty 18

0

15

Honda 98066-55726

SPARK PLUG (X16FSR-U) (DENSO)

$3.49

$

Usually ships in 3-6 days

0
