BF9.9 AX SA (BABS) - Honda Outboard Engine, Made in Japan (SN: BABS-1400001 - BABS-1499999) PROPELLER SHAFT + PROPELLER Parts Diagram

Outboard Engine, Made in Japan

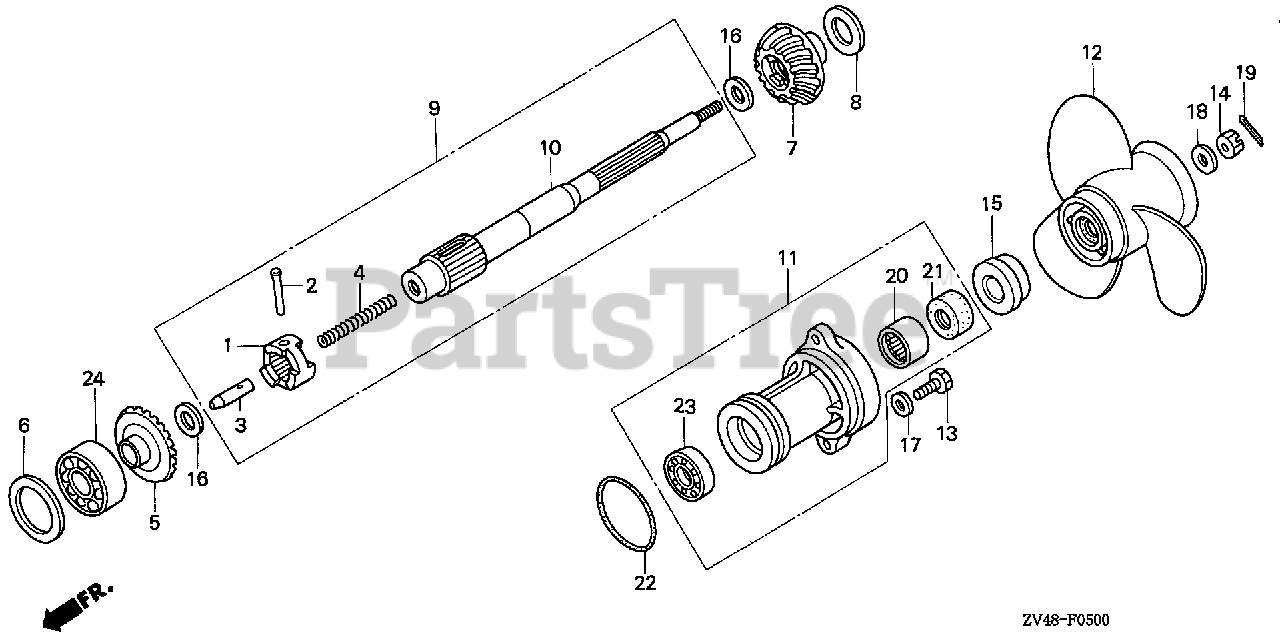

PROPELLER SHAFT + PROPELLER Parts Diagram

  • Title
1

Honda 24101-ZV4-300

SHIFTER, CLUTCH

$

$

Not available

2

Honda 24102-935-300

PIN, SHIFTER (4X35)

$4.99

$

In Stock, only 1 left!

0

3

Honda 24122-ZV4-300

SLIDER, SHIFT

$

$

Not available

4

Honda 24123-ZV1-300

SPRING, SHIFT

$6.99

$

Usually ships in 3-6 days

0

5

Honda 41145-ZV4-000

GEAR, FR. BEVEL (27T)

$

$

Not available

6

Honda 41146-ZV4-000

SHIM (40MM) (0.08MM) (A)

$

$

Not available

6

Honda 41147-ZV4-000

SHIM (40MM) (0.10MM) (B)

$

$

Not available

6

Honda 41148-ZV4-000

SHIM (40MM) (0.12MM) (C)

$

$

Not available

6

Honda 41149-ZV4-000

SHIM (40MM) (0.15MM) (D)

$

$

Not available

7

Honda 41151-ZV4-000

GEAR, RR. BEVEL (27T)

$

$

Not available

8

Honda 41157-ZV4-000

SHIM A, GEAR (0.10MM)

$

$

Not available

8

Honda 41158-ZV4-000

SHIM B, GEAR (0.15MM)

$

$

Not available

9

Honda 41160-ZV4-000

SHAFT, PROPELLER

$

$

Not available

10

Honda 41161-ZV4-300

SHAFT, PROPELLER

$

$

Not available

11

Honda 41200-ZV4-040ZB

SEE PART DETAILS - PRI; HOLDER ASSY., PROPELLER SHAFT *NH282MU* (OYSTER SILVER METALLIC-U)

$

$

Not available

12

Honda 58130-ZV4-030ZB

SEE PART DETAILS - PRI; PROPELLER, THREE-BLADE (9-1/2X9-1/2) *NH283* (STIN GRAY)

$199.99

$

Usually ships in 3-6 days

0

13

Honda 90124-ZV4-000

BOLT, HEX. (6X20)

$2.99

$

In Stock, Qty 5

0

14

Honda 90301-ZV4-000

NUT, CASTLE (10MM)

$7.99

$

In Stock, only 1 left!

0

15

Honda 90501-ZV4-000

WASHER, PROPELLER THRUST

$

$

Not available

16

Honda 90503-921-020

WASHER (17MM)

$8.49

$

Usually ships in 3-6 days

0

17

Honda 90506-ZV4-000

WASHER, PLAIN (6MM)

$3.49

$

Usually ships in 3-6 days

0

18

Honda 90513-921-000

WASHER (10MM)

$2.99

$

In Stock, only 1 left!

0

19

Honda 90758-ZV4-000

PIN, SPLIT (3MM)

$2.49

$

In Stock, only 1 left!

0

20

Honda 91053-ZV4-003

BEARING, NEEDLE (17X23X12)

$

$

Not available

21

Honda 91251-935-004

SEAL, WATER (17MM) (NOK)

$17.99

$

In Stock, only 1 left!

0

22

Honda 91351-ZV4-003

O-RING (58X3) (ARAI)

$3.99

$

Usually ships in 3-6 days

0

23

Honda 96100-60050-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6005)

$15.99

$

Usually ships in 3-6 days

0

24

Honda 96100-62050-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6205)

$25.99

$

In Stock, only 1 left!

0
