BF9.9 AW LAS (BABL) - Honda Outboard Engine, Made in Japan (SN: BABL-1300001 - BABL-9999999) FUEL TANK (AM/AW) Parts Diagram

Outboard Engine, Made in Japan

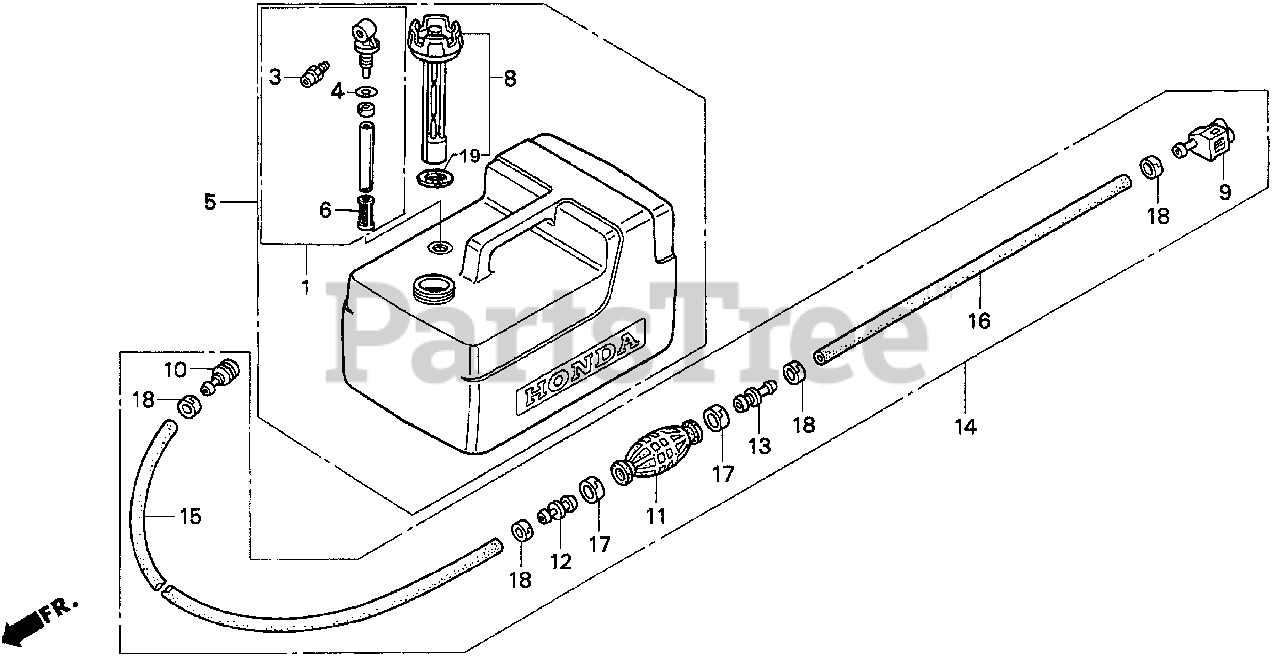

FUEL TANK (AM/AW) Parts Diagram

  • Title
1

Honda 16900-ZV4-A21

SEE PART DETAILS - SUP; JOINT ASSY., FUEL
(Superseded to 16900-ZV4-A22)

$37.99

$

Usually ships in 3-6 days

0

3

Honda 16977-ZV5-A00

FITTING, QUICK DISCONNECT

$19.99

$

Usually ships in 3-6 days

0

4

Honda 16979-ZV5-900

SEE PART DETAILS - SUP; O-RING

$0.99

$

Usually ships in 3-6 days

0

5

Honda 17500-ZV4-A21

SEE PART DETAILS - SUP; TANK ASSY., FUEL
(Superseded to 17500-ZZ5-003)

$231.99

$

Usually ships in 3-6 days

0

5

Honda 17500-ZV4-A22

SEE PART DETAILS - SUP; TANK ASSY., FUEL
(Superseded to 17500-ZZ5-003)

$231.99

$

Usually ships in 3-6 days

0

6

Honda 17583-ZV5-900

SEE PART DETAILS - SUP; FILTER, FUEL
(Superseded to 17583-ZV5-901)

$2.99

$

In Stock, only 1 left!

0

8

Honda 17620-ZV4-A20

SEE PART DETAILS - SUP; CAP, FUEL FILLER

$

$

Currently unavailable

9

Honda 17650-ZV4-005

SEE PART DETAILS - SUP; CONNECTOR ASSY. A, FUEL
(Superseded to 04104-ZW9-010)

$67.99

$

Usually ships in 3-6 days

0

10

Honda 17660-ZV5-A00

SEE PART DETAILS - SUP; CONNECTOR, FUEL
(Superseded to 17660-ZW9-003)

$42.99

$

Usually ships in 3-6 days

0

11

Honda 17661-921-000

SEE PART DETAILS - SUP; PRIMER BULB
(Superseded to 17661-921-010)

$17.99

$

Usually ships in 3-6 days

0

12

Honda 17665-ZV5-000

VALVE, IN.

$15.99

$

Usually ships in 3-6 days

0

13

Honda 17680-ZV4-000

VALVE, OUTLET

$15.99

$

Usually ships in 3-6 days

0

14

Honda 04101-ZW9-000

SEE PART DETAILS - SUP; TUBE ASSY., FUEL
(Superseded to 04101-ZW9-010)

$122.99

$

Usually ships in 3-6 days

0

14

Honda 17700-ZV5-010

SEE PART DETAILS - SUP; TUBE ASSY., FUEL
(Superseded to 04101-ZW9-010)

$122.99

$

Usually ships in 3-6 days

0

15

Honda 17701-ZV5-000

TUBE, FUEL LONG (7.5X2000)

$62.99

$

Usually ships in 3-6 days

0

16

Honda 17702-ZV4-000

TUBE, FUEL SHORT

$12.99

$

Usually ships in 3-6 days

0

17

Honda 17703-921-000

SEE PART DETAILS - SUP; BAND, TUBE CLIP (20MM)
(Superseded to 17703-921-010)

$4.99

$

Usually ships in 3-6 days

0

18

Honda 17704-ZV4-000

SEE PART DETAILS - SUP; BAND, TUBE CLIP (12.5MM)
(Superseded to 17704-ZV4-010)

$2.99

$

Usually ships in 3-6 days

0

18

Honda 17704-ZV4-010

SEE PART DETAILS - PRI; BAND, TUBE CLIP (12.5MM)

$2.99

$

Usually ships in 3-6 days

0

19

Honda 17624-ZV4-A20

GASKET, FUEL CAP
(Superseded to 17624-ZV5-902)

$8.99

$

Usually ships in 3-6 days

0
