BF9.9 AM SAS (BABS) - Honda Outboard Engine, Made in Japan (SN: BABS-1200001 - BABS-9999999) CARBURETOR Parts Diagram

Outboard Engine, Made in Japan

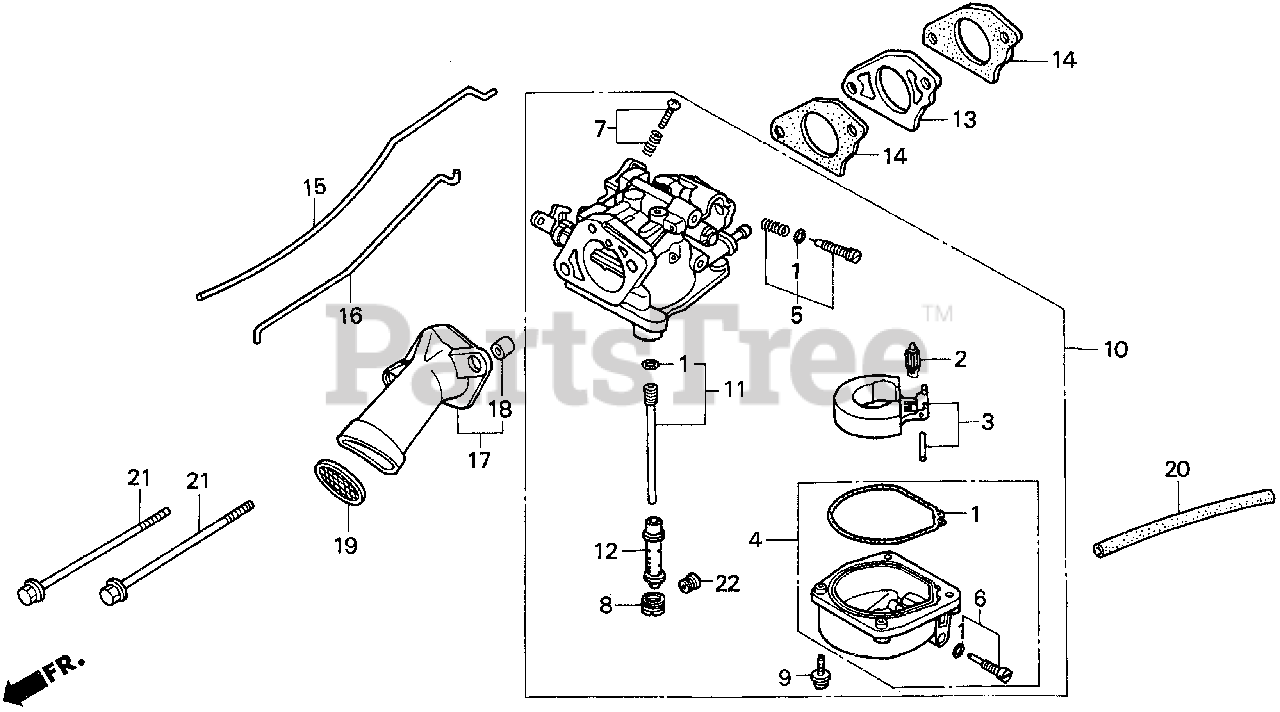

CARBURETOR Parts Diagram

  • Title

1

Honda 16010-ZV4-005

GASKET SET

$21.99

$

In Stock, Qty 6

0

2

Honda 16011-ZV4-005

VALVE SET, FLOAT

$43.99

$

In Stock, only 2 left!

0

3

Honda 16013-ZV4-005

FLOAT SET

$45.99

$

In Stock, only 2 left!

0

4

Honda 16015-ZV4-650

CHAMBER SET, FLOAT

$

$

Not available

5

Honda 16016-ZV4-005

SCREW SET

$

$

Not available

6

Honda 16024-881-A00

SEE PART DETAILS - SUP; SCREW SET, DRAIN
(Superseded to 16024-ZY3-000)

$17.99

$

Usually ships in 3-6 days

0

7

Honda 16028-ZV4-650

SCREW SET

$14.99

$

Usually ships in 3-6 days

0

8

Honda 16071-ZV4-005

SCREW, PLUG

$9.49

$

Usually ships in 3-6 days

0

9

Honda 16081-ZV4-650

SCREW-WASHER

$4.99

$

Usually ships in 3-6 days

0

10

Honda 16100-ZV6-650

SEE PART DETAILS - SUP; CARBURETOR ASSY.

$

$

Currently unavailable

11

Honda 16150-ZV6-015

JET SET (#48)

$

$

Not available

12

Honda 16166-ZV6-005

NOZZLE, MAIN

$

$

Not available

13

Honda 16211-ZV4-000

INSULATOR, CARBURETOR

$

$

Not available

14

Honda 16221-ZV4-610

SEE PART DETAILS - PRI; GASKET, CARBURETOR

$4.49

$

In Stock, only 2 left!

0

15

Honda 16593-ZV4-000

ROD, THROTTLE

$

$

Not available

16

Honda 16622-ZV4-000

ROD, CHOKE

$

$

Not available

17

Honda 17201-ZV4-010

GUIDE, AIR

Note: Use from Engine SN 1207986 to 1217652.

$

$

Not available

17

Honda 17201-ZV4-A50

GUIDE, AIR

Note: Use from Engine SN 1217653.

$

$

Not available

17

Honda 17201-ZV4-000

GUIDE ASSY., AIR

Note: Use up to Engine SN 1207985.

$

$

Not available

18

Honda 17202-ZV4-300

COLLAR, DISTANCE

$2.99

$

Usually ships in 3-6 days

0

19

Honda 17203-ZV4-000

TRAP, FLAME

$9.99

$

Usually ships in 3-6 days

0

20

Honda 95001-35003-60M

BULK HOSE, FUEL (3.5X3000) (3.5X100)

Note: Use up to Engine SN 1207692.

$32.99

$

In Stock, only 2 left!

0

20

Honda 95003-05008-60M

BULK HOSE, VINYL (3.5X6.5X8000) (3.5X6.5X100)

Note: Use from Engine SN 1207693.

$30.99

$

In Stock, only 2 left!

0

21

Honda 95801-06095-02

BOLT, FLANGE (6X95)

$2.99

$

Usually ships in 3-6 days

0

22

Honda 99101-GHB-1020

JET, MAIN (#102)

$9.99

$

In Stock, only 1 left!

0

22

Honda 99101-GHB-0980

JET, MAIN (#98)

$9.99

$

Usually ships in 3-6 days

0

22

Honda 99101-GHB-1000

JET, MAIN (#100)

$10.99

$

Usually ships in 3-6 days

0
