BF9.9 AK SAS (BABS) - Honda Outboard Engine, Made in Japan (SN: BABS-1100001 - BABS-9999999) FUEL TANK (AH/AK) Parts Diagram

Outboard Engine, Made in Japan

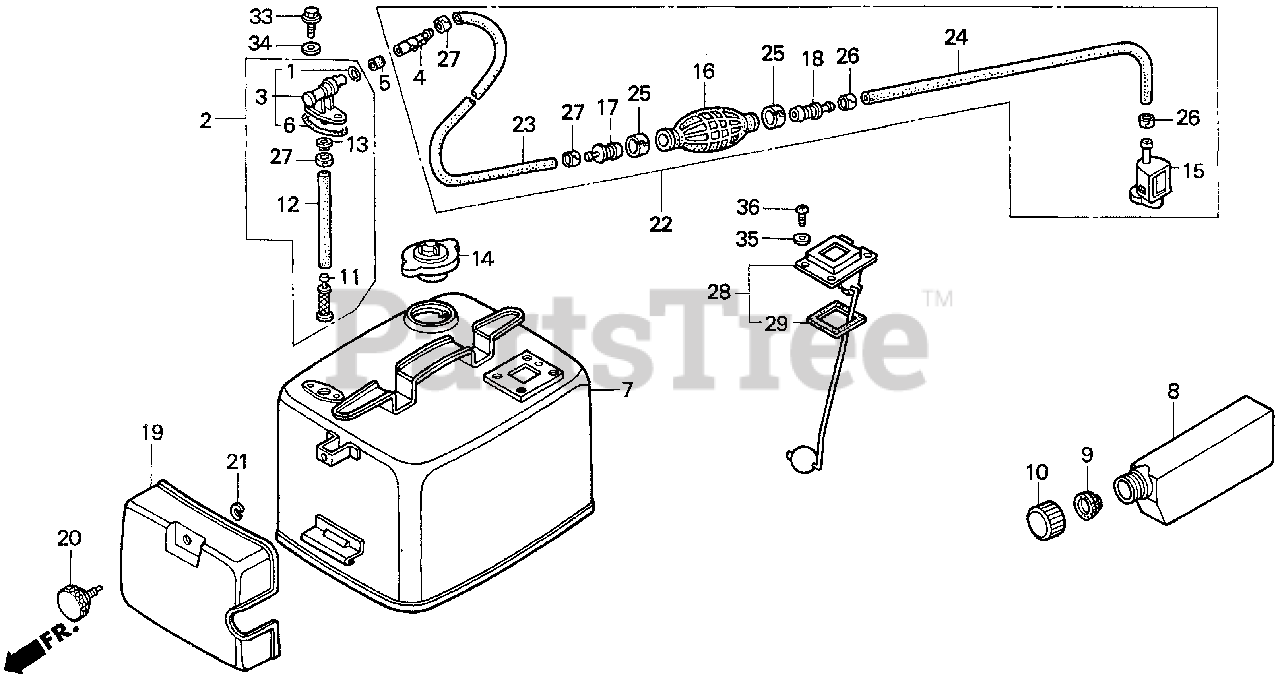

FUEL TANK (AH/AK) Parts Diagram

  • Title

1

Honda 16075-935-006

O-RING

$

$

Not available

2

Honda 16900-881-010

SEE PART DETAILS - PRI; JOINT A, FUEL

$

$

Not available

3

Honda 16951-935-006

JOINT A, FUEL CONSENT

$

$

Not available

4

Honda 16952-935-016

JOINT B, FUEL CONSENT

$

$

Not available

5

Honda 16953-935-000

ABSORBER, FUEL

$5.49

$

In Stock, only 2 left!

0

6

Honda 16962-865-010

RING, PETCOCK SEAL

$

$

Not available

7

Honda 17500-881-020ZA

TANK, FUEL *R8* (BRIGHT RED)

$

$

Currently unavailable

8

Honda 17570-921-000

TANK, OIL

$

$

Not available

9

Honda 17572-801-810

CAP, SUB-TANK (INNER)

$

$

Not available

10

Honda 17573-801-810

CAP, SUB-TANK

$

$

Currently unavailable

11

Honda 17583-881-000

FILTER, FUEL

$

$

Not available

12

Honda 17611-935-000

TUBE (INNER)

$

$

Not available

13

Honda 17612-881-000

SEAL (INNER)

$4.49

$

Usually ships in 3-6 days

0

14

Honda 17620-881-053

SEE PART DETAILS - PRI; CAP, FUEL FILLER

$

$

Not available

15

Honda 17650-ZV4-005

SEE PART DETAILS - SUP; CONNECTOR ASSY. A, FUEL
(Superseded to 04104-ZW9-010)

$67.99

$

Usually ships in 3-6 days

0

16

Honda 17661-921-000

SEE PART DETAILS - SUP; PRIMER BULB
(Superseded to 17661-921-010)

$17.99

$

Usually ships in 3-6 days

0

17

Honda 17670-921-000

VALVE, IN.

$

$

Not available

18

Honda 17680-ZV4-000

VALVE, OUTLET

$15.99

$

Usually ships in 3-6 days

0

19

Honda 17690-881-000

BOX, TOOL

$

$

Not available

20

Honda 17698-921-000

LATCH, TOOL BOX

$

$

Not available

21

Honda 17699-921-000

STOPPER, LATCH

$

$

Not available

22

Honda 04101-ZW9-660

SEE PART DETAILS - SUP; TUBE ASSY., FUEL

$

$

Currently unavailable

22

Honda 17700-ZV4-800

SEE PART DETAILS - SUP; TUBE ASSY., FUEL
(Superseded to 04101-ZW9-661)

$158.99

$

Usually ships in 3-6 days

0

23

Honda 17701-881-000

TUBE, FUEL LONG

$

$

Not available

24

Honda 17702-ZV4-000

TUBE, FUEL SHORT

$12.99

$

Usually ships in 3-6 days

0

25

Honda 17703-921-000

SEE PART DETAILS - SUP; BAND, TUBE CLIP (20MM)
(Superseded to 17703-921-010)

$4.99

$

Usually ships in 3-6 days

0

26

Honda 17704-ZV4-000

SEE PART DETAILS - SUP; BAND, TUBE CLIP (12.5MM)
(Superseded to 17704-ZV4-010)

$2.99

$

Usually ships in 3-6 days

0

26

Honda 17704-ZV4-010

SEE PART DETAILS - PRI; BAND, TUBE CLIP (12.5MM)

$2.99

$

Usually ships in 3-6 days

0

27

Honda 17704-921-000

BAND, TUBE CLIP (11MM)

$

$

Not available

28

Honda 17800-ZV1-611

METER ASSY., FUEL

$

$

Not available

29

Honda 17803-GC3-003

GASKET, FUEL METER

$11.99

$

Usually ships in 3-6 days

0

33

Honda 90120-881-010

SEE PART DETAILS - SUP; BOLT, FLANGE (6X16)

$

$

Not available

34

Honda 90445-700-000

GASKET, FIBER (6MM)

$1.99

$

In Stock, Qty 7

0

35

Honda 90540-881-000

GASKET, FIBER (5MM)

$1.99

$

Usually ships in 3-6 days

0

36

Honda 93500-05010-4J

SCREW, PAN (5X10)

$1.99

$

Usually ships in 3-6 days

0
