BF8 DK3 LHA (BAAJ) - Honda Outboard Engine, Made in Japan (SN: BAAJ-1800001 - BAAJ-9999999) PROPELLER SHAFT@PROPELLER Parts Diagram

Outboard Engine, Made in Japan

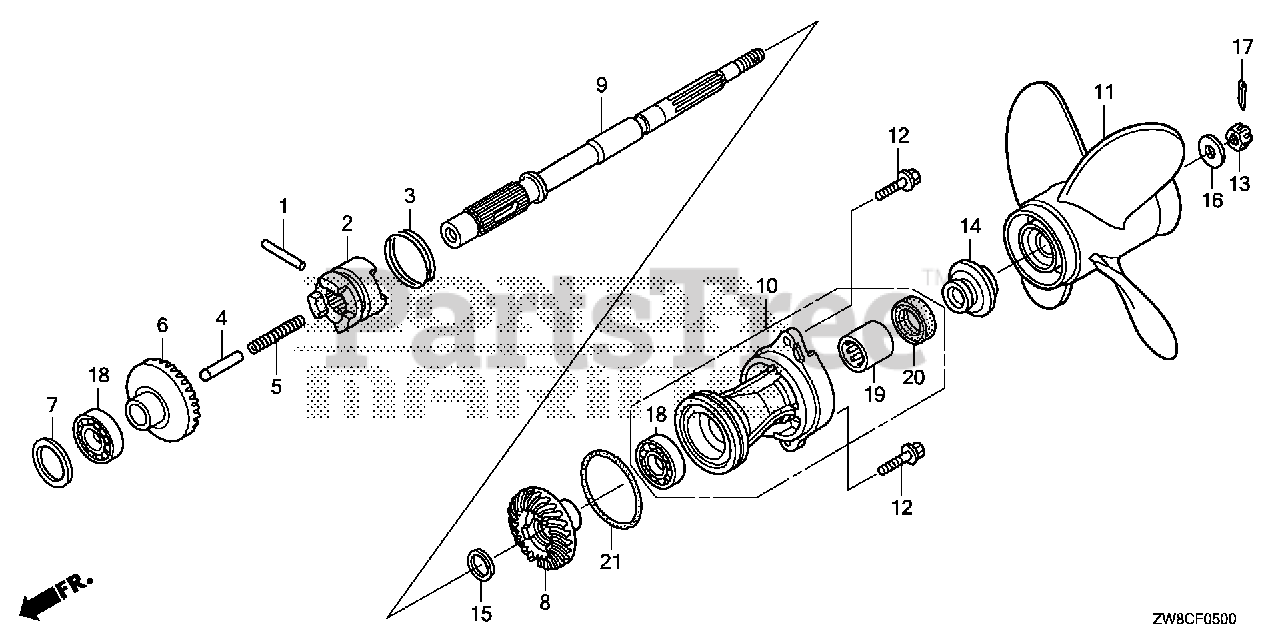

PROPELLER SHAFT@PROPELLER Parts Diagram

  • Title

1

Honda 14126-Z0H-003

ROLLER (4X29.8)

$1.49

$

In Stock, Qty 6

0

2

Honda 24101-ZW9-000

SHIFTER, CLUTCH

$68.99

$

Usually ships in 3-6 days

0

3

Honda 24103-ZV7-000

RING, CROSS PIN

$2.49

$

Usually ships in 3-6 days

0

4

Honda 24122-ZW9-000

SLIDER, SHIFT

$10.99

$

Usually ships in 3-6 days

0

5

Honda 24123-ZV1-300

SPRING, SHIFT

$6.49

$

Usually ships in 3-6 days

0

6

Honda 41140-ZW9-000

GEAR, FR. BEVEL

$170.99

$

Usually ships in 3-6 days

0

7

Honda 41146-ZW9-000

SHIM A (40MM)

$4.49

$

Usually ships in 3-6 days

0

7

Honda 41147-ZW9-000

SHIM B (40MM)

$4.49

$

Usually ships in 3-6 days

0

7

Honda 41148-ZW9-000

SHIM C (40MM)

$4.49

$

Usually ships in 3-6 days

0

8

Honda 41151-ZW9-000

GEAR, RR. BEVEL

$161.99

$

Usually ships in 3-6 days

0

9

Honda 41161-ZW9-010

SHAFT, PROPELLER

$221.99

$

Usually ships in 3-6 days

0

10

Honda 41200-ZW9-020ZB

HOLDER ASSY., PROPELLER SHAFT *NHB14M* (AQUA MARINE SILVER METALLIC)

$124.99

$

Usually ships in 3-6 days

0

11

Honda 58130-ZW9-B23ZA

SEE PART DETAILS - PRI; PROPELLER, FOUR BLADES (10X6-1/2 HT) *NH283* (STIN GRAY)

Note: (Optional).

$142.99

$

Usually ships in 3-6 days

0

11

Honda 58130-ZW9-V02ZA

SEE PART DETAILS - PRI; PROPELLER, FOUR BLADES (9-1/4X7) *NH283*

Note: (Optional).

$151.99

$

Usually ships in 3-6 days

0

11

Honda 58130-ZW9-V12ZA

SEE PART DETAILS - PRI; PROPELLER, FOUR BLADES (9-1/4X8) *NH283* (STIN GRAY)

$151.99

$

Usually ships in 3-6 days

0

11

Honda 58130-ZW9-V22ZA

SEE PART DETAILS - PRI; PROPELLER, FOUR BLADES (9-1/4X9) *NH283* (STIN GRAY)

Note: (Optional).

$151.99

$

Usually ships in 3-6 days

0

11

Honda 58130-ZW9-V32ZA

SEE PART DETAILS - PRI; PROPELLER, FOUR BLADES (9-1/4X10) *NH283*

Note: (Optional).

$151.99

$

Usually ships in 3-6 days

0

12

Honda 90105-ZW9-000

BOLT, FLANGE (6X20) (ENGINE NO.)

$3.99

$

Usually ships in 3-6 days

0

13

Honda 90301-ZV4-000

NUT, CASTLE (10MM)

$6.99

$

In Stock, only 1 left!

0

14

Honda 90501-ZW9-C00

WASHER, PROPELLER THRUST

$23.99

$

Usually ships in 3-6 days

0

15

Honda 90503-ZW9-000

WASHER (18MM)

$7.49

$

Usually ships in 3-6 days

0

16

Honda 90513-921-000

WASHER (10MM)

$2.99

$

Usually ships in 3-6 days

0

17

Honda 90758-ZV4-000

PIN, COTTER (3MM)

$1.99

$

In Stock, only 1 left!

0

18

Honda 91051-ZY1-C01

BEARING, RADIAL BALL (25X47X12)

$15.99

$

Usually ships in 3-6 days

0

19

Honda 91072-KT7-003

BEARING, NEEDLE (17X24X20) (NTN)

$26.99

$

Usually ships in 3-6 days

0

20

Honda 91252-ZW9-003

SEAL, WATER (17MM)

$16.99

$

Usually ships in 3-6 days

0

21

Honda 91352-ZW9-003

SEE PART DETAILS - PRI; O-RING (59.4X3.1)

$4.49

$

Usually ships in 3-6 days

0
