BF8 AW XA (BZBC) - Honda Outboard Engine, Made in Japan (SN: BZBC-1300001 - BZBC-9999999) FUEL TANK (2) Parts Diagram

Outboard Engine, Made in Japan

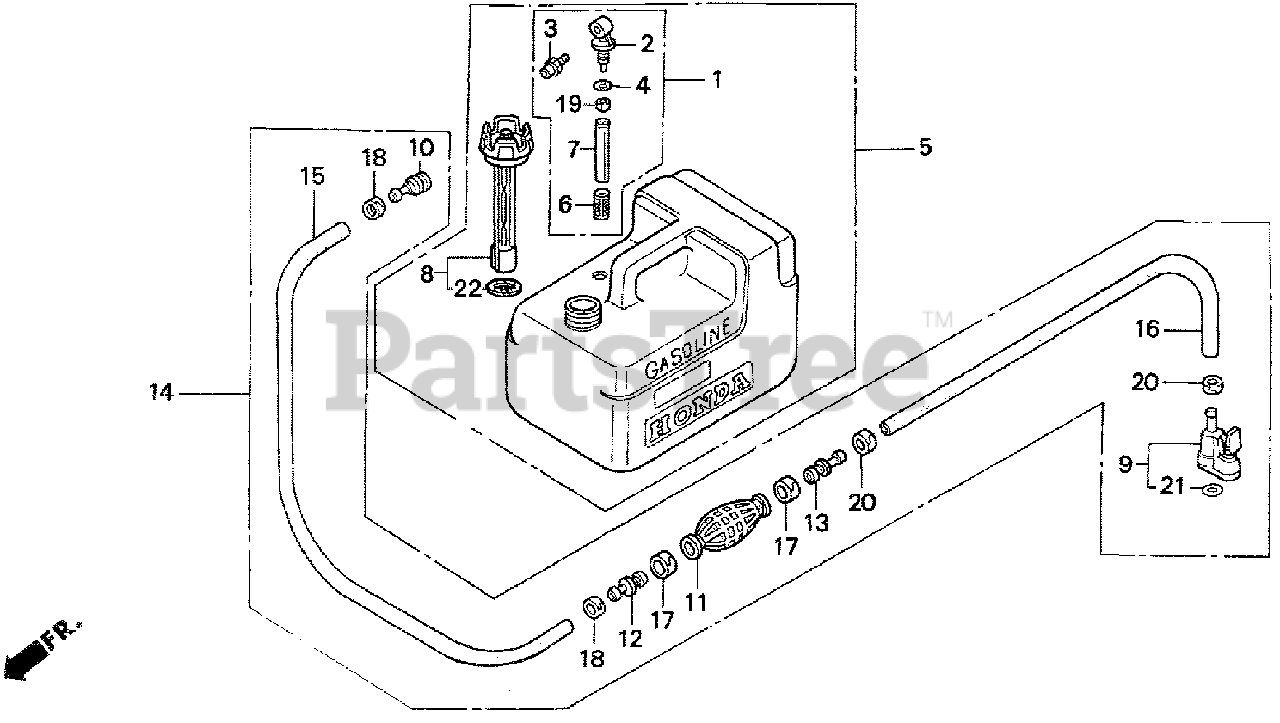

FUEL TANK (2) Parts Diagram

  • Title
1

Honda 16900-ZV4-A21

SEE PART DETAILS - SUP; JOINT ASSY., FUEL
(Superseded to 16900-ZV4-A22)

$37.99

$

Usually ships in 3-6 days

0

3

Honda 16977-ZV5-A00

FITTING, QUICK DISCONNECT

$19.99

$

Usually ships in 3-6 days

0

4

Honda 16979-ZV5-900

SEE PART DETAILS - SUP; O-RING

$0.99

$

Usually ships in 3-6 days

0

5

Honda 17500-ZV4-A21

SEE PART DETAILS - SUP; TANK ASSY., FUEL
(Superseded to 17500-ZZ5-003)

$231.99

$

Usually ships in 3-6 days

0

5

Honda 17500-ZV4-A22

SEE PART DETAILS - SUP; TANK ASSY., FUEL
(Superseded to 17500-ZZ5-003)

$231.99

$

Usually ships in 3-6 days

0

6

Honda 17583-ZV5-900

SEE PART DETAILS - SUP; FILTER, FUEL
(Superseded to 17583-ZV5-901)

$2.99

$

In Stock, only 1 left!

0

8

Honda 17620-ZV4-A20

SEE PART DETAILS - SUP; CAP, FUEL FILLER

$

$

Currently unavailable

9

Honda 17650-921-003ZB

SEE PART DETAILS - PRI; CONNECTOR, FUEL *NH1* (BLACK)

$48.99

$

Usually ships in 3-6 days

0

10

Honda 17660-ZV5-A00

SEE PART DETAILS - SUP; CONNECTOR, FUEL
(Superseded to 17660-ZW9-003)

$42.99

$

Usually ships in 3-6 days

0

11

Honda 17661-921-000

SEE PART DETAILS - SUP; PRIMER BULB
(Superseded to 17661-921-010)

$17.99

$

Usually ships in 3-6 days

0

12

Honda 17665-ZV5-000

VALVE, IN.

$15.99

$

Usually ships in 3-6 days

0

13

Honda 17680-921-000

VALVE, OUTLET

$12.99

$

Usually ships in 3-6 days

0

14

Honda 17700-881-C03ZA

SEE PART DETAILS - PRI; TUBE, FUEL *NH1* (BLACK)

$143.99

$

Usually ships in 3-6 days

0

15

Honda 17701-ZV5-000

TUBE, FUEL LONG (7.5X2000)

$62.99

$

Usually ships in 3-6 days

0

16

Honda 17702-921-000

TUBE, FUEL SHORT

$9.99

$

Usually ships in 3-6 days

0

17

Honda 17703-921-000

SEE PART DETAILS - SUP; BAND, TUBE CLIP (20MM)
(Superseded to 17703-921-010)

$4.99

$

Usually ships in 3-6 days

0

18

Honda 17704-ZV4-000

SEE PART DETAILS - SUP; BAND, TUBE CLIP (12.5MM)
(Superseded to 17704-ZV4-010)

$2.99

$

Usually ships in 3-6 days

0

18

Honda 17704-ZV4-010

SEE PART DETAILS - PRI; BAND, TUBE CLIP (12.5MM)

$2.99

$

Usually ships in 3-6 days

0

20

Honda 17704-921-000

BAND, TUBE CLIP (11MM)

$

$

Not available

21

Honda 91353-921-310

O-RING (5.5X3)

$2.49

$

In Stock, only 1 left!

0

22

Honda 17624-ZV4-A20

GASKET, FUEL CAP
(Superseded to 17624-ZV5-902)

$8.99

$

Usually ships in 3-6 days

0
