BF8 AW XA (BZBC) - Honda Outboard Engine, Made in Japan (SN: BZBC-1300001 - BZBC-9999999) EXTENSION CASE Parts Diagram

Outboard Engine, Made in Japan

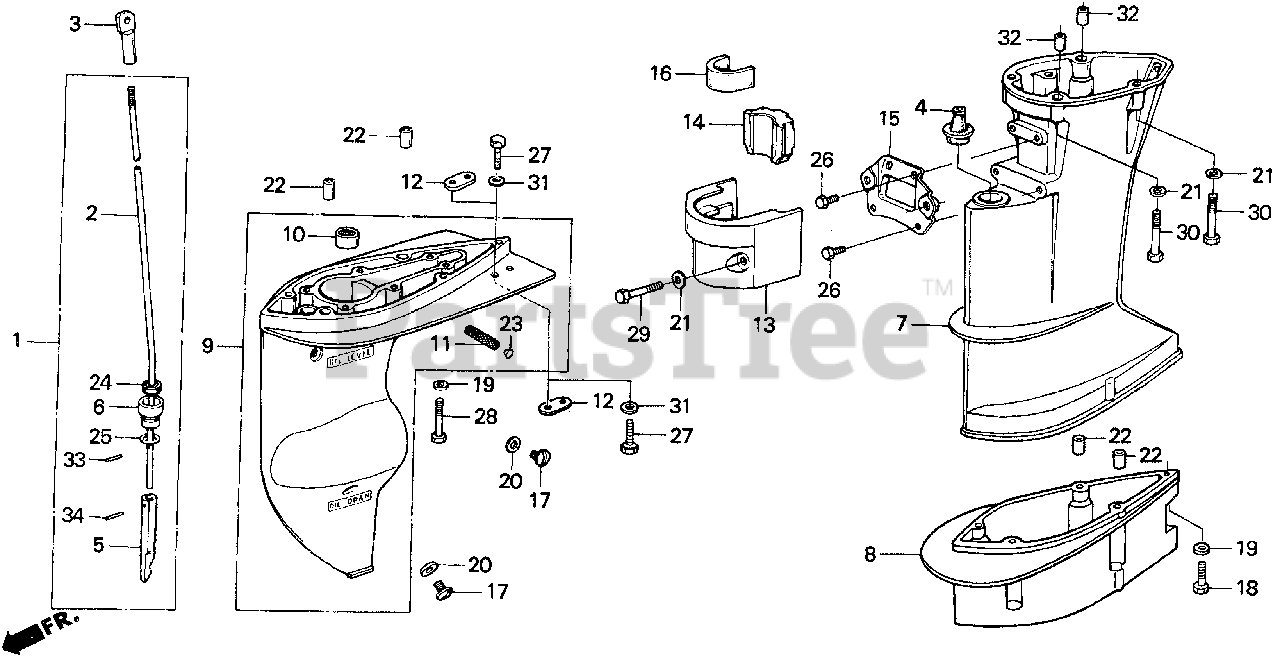

EXTENSION CASE Parts Diagram

  • Title

1

Honda 24310-881-D70

ROD, SHIFT (UL)

$

$

Not available

2

Honda 24311-881-D70

ROD, SHIFT (UL)

$60.99

$

Usually ships in 3-6 days

0

3

Honda 24312-881-000

JOINT, SHIFT ROD

$38.99

$

Usually ships in 3-6 days

0

4

Honda 24313-921-003

GROMMET, ROD

$

$

Not available

5

Honda 24341-ZV4-300

ROD, PUSH

$

$

Not available

6

Honda 24343-881-300

HOLDER, SEAL

$32.99

$

Usually ships in 3-6 days

0

7

Honda 40201-881-942ZB

CASE, EXTENSION *NH282MU* (L) (OYSTER SILVER METALLIC-U)

$467.99

$

Usually ships in 3-6 days

0

8

Honda 40202-881-D70ZA

SEPARATOR, EXTENSION *NH282MU* (UL) (OYSTER SILVER METALLIC-U)

$

$

Not available

9

Honda 41100-881-A00ZB

CASE, GEAR *NH282MU* (OYSTER SILVER METALLIC-U)

$

$

Not available

10

Honda 41103-935-003

BEARING, NEEDLE (15X21X16)

$14.99

$

Usually ships in 3-6 days

0

11

Honda 41104-921-320

SCREEN, WATER

$11.99

$

Usually ships in 3-6 days

0

12

Honda 41106-ZV4-650

METAL, ANODE
(Superseded to 41106-ZVA-000)

$22.99

$

Usually ships in 3-6 days

0

13

Honda 50121-881-842ZB

HOUSING, SETTING (LOWER) *NH282MU* (OYSTER SILVER METALLIC-U)

$

$

Not available

14

Honda 50151-881-D70

RUBBER A, MOUNTING (LOWER)

$34.99

$

Usually ships in 3-6 days

0

15

Honda 50152-881-000

PLATE, SETTING (LOWER)

$

$

Not available

16

Honda 50153-881-D70

RUBBER B, MOUNTING (LOWER)

$

$

Not available

17

Honda 90105-ZV4-650

BOLT, OIL CHECK (8X8)
(Superseded to 90105-ZVA-000)

$5.99

$

In Stock, only 2 left!

0

18

Honda 90111-881-000

BOLT, HEX. (6X32)

$4.49

$

Usually ships in 3-6 days

0

19

Honda 90504-921-010

WASHER, PLAIN (6MM)

$1.99

$

In Stock, only 1 left!

0

19

Honda 90506-ZV4-000

WASHER, PLAIN (6MM)

$3.49

$

Usually ships in 3-6 days

0

20

Honda 90507-921-000

WASHER, NYLON (8MM)

$1.49

$

In Stock, Qty 6

0

21

Honda 90507-ZV4-000

WASHER, PLAIN (8MM)

$3.49

$

Usually ships in 3-6 days

0

22

Honda 94301-08100

SEE PART DETAILS - PRI; PIN A, DOWEL (8X10)

$2.99

$

Usually ships in 3-6 days

0

23

Honda 90855-921-300

PLUG, SEALING (10MM)

$3.99

$

In Stock, only 1 left!

0

24

Honda 91253-921-003

SEAL, WATER (6MM)

$16.99

$

Usually ships in 3-6 days

0

25

Honda 91303-377-000

O-RING (13.8X2.5)

$4.99

$

Usually ships in 3-6 days

0

26

Honda 90105-881-000

BOLT, HEX. (6X12)

$2.99

$

Usually ships in 3-6 days

0

27

Honda 90101-ZV1-000

BOLT, HEX. (6X18)

$3.99

$

Usually ships in 3-6 days

0

28

Honda 90120-ZV4-000

SEE PART DETAILS - SUP; BOLT, HEX. (6X40)
(Superseded to 90120-ZV4-010)

$3.49

$

Usually ships in 3-6 days

0

29

Honda 90116-881-000

BOLT, HEX. (8X40)

$5.99

$

Usually ships in 3-6 days

0

30

Honda 90123-ZV4-000

BOLT, HEX. (8X50)

$

$

Not available

31

Honda 90506-ZV4-000

WASHER, PLAIN (6MM)

$3.49

$

Usually ships in 3-6 days

0

32

Honda 94301-10140

PIN A, DOWEL (10X14)

$3.49

$

Usually ships in 3-6 days

0

33

Honda 94305-25122

PIN, SPRING (2.5X12)

$2.49

$

Usually ships in 3-6 days

0

34

Honda 96220-25118

ROLLER (2.5X11.8)

$0.99

$

Usually ships in 3-6 days

0
