BF8 AK0 SA (BZBC) - Honda Outboard Engine, Made in Japan (SN: BZBC-2100001 - BZBC-9999999) RECOIL STARTER Parts Diagram

Outboard Engine, Made in Japan

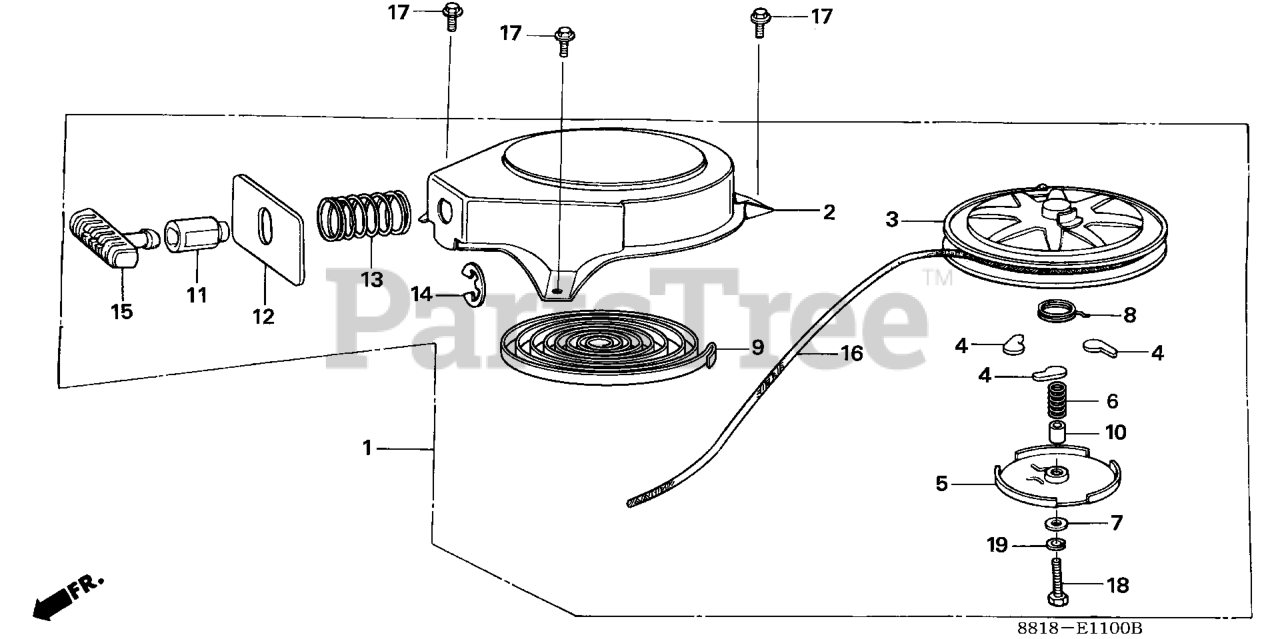

RECOIL STARTER Parts Diagram

  • Title
1

Honda 28400-881-016

SEE PART DETAILS - PRI; STARTER ASSY., RECOIL

$

$

Not available

2

Honda 28401-881-016

SEE PART DETAILS - PRI; CASE, RECOIL STARTER

$

$

Not available

3

Honda 28421-935-000

PULLEY, RECOIL STARTER

$36.99

$

Usually ships in 3-6 days

0

4

Honda 28441-848-650

RATCHET, STARTER

$

$

Not available

5

Honda 28443-935-000

PLATE, FRICTION

$32.99

$

Usually ships in 3-6 days

0

6

Honda 28444-921-000

SPRING, FRICTION

$4.99

$

In Stock, only 1 left!

0

$3.49

$

Usually ships in 3-6 days

0

8

Honda 28447-935-000

SPRING, SETTING

$

$

Not available

9

Honda 28451-921-000

SPRING, RECOIL STARTER

$

$

Not available

$

$

Not available

11

Honda 28454-921-000

GUIDE, ROPE

$

$

Not available

12

Honda 28455-881-006

PLATE, SEAL

$

$

Not available

13

Honda 28456-921-000

SPRING, SEAL PLATE

$

$

Not available

$

$

Not available

15

Honda 28461-921-010

GRIP, STARTER

$

$

Not available

16

Honda 28471-921-000

SEE PART DETAILS - PRI; ROPE, RECOIL STARTER (#4X65") (NA USE ALT:08540-ZG921-11)

$

$

Not available

17

Honda 90056-ZY3-000

BOLT, FLANGE (6X12)
(Superseded to 90056-ZY9-M01)

$1.99

$

Usually ships in 3-6 days

0

18

Honda 92201-06025-0H

BOLT, HEX. (6X25)

$2.49

$

Usually ships in 3-6 days

0

19

Honda 94111-06000

SEE PART DETAILS - PRI; WASHER, SPRING (6MM)

$1.49

$

In Stock, only 1 left!

0
