BF8 AK0 LA (BZBC) - Honda Outboard Engine, Made in Japan (SN: BZBC-2100001 - BZBC-9999999) OIL PUMP Parts Diagram

Outboard Engine, Made in Japan

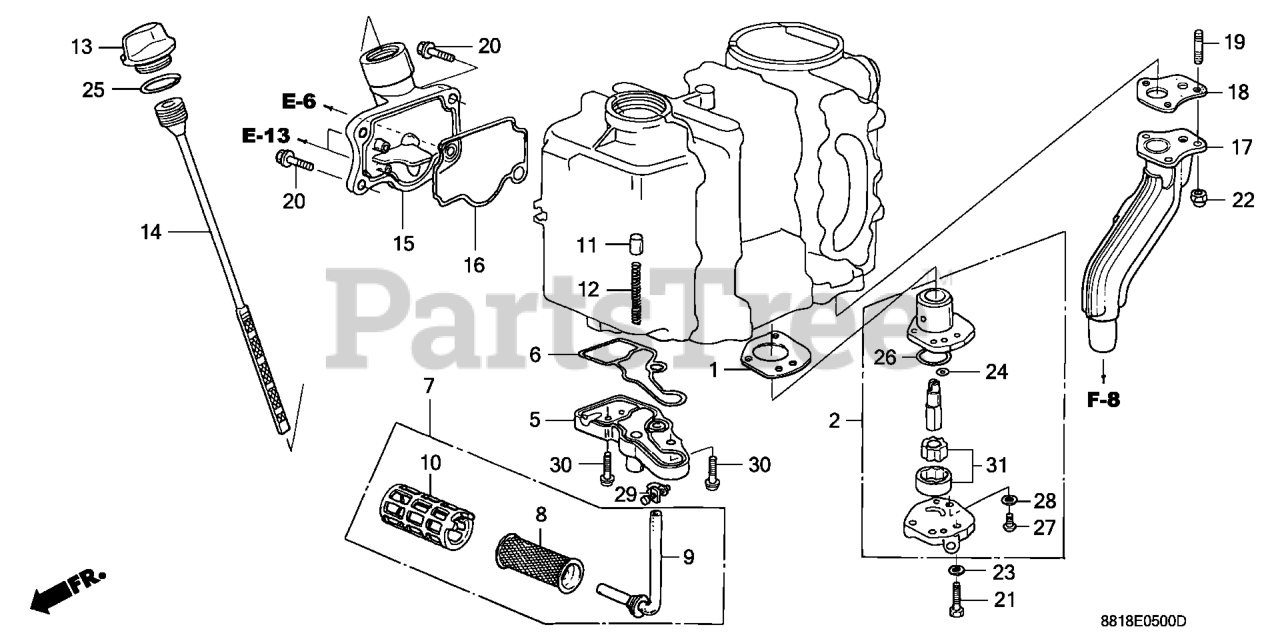

OIL PUMP Parts Diagram

  • Title

1

Honda 15112-881-000

GASKET, PUMP BODY

$

$

Not available

2

Honda 15200-881-003

PUMP ASSY., OIL

Note: Use up to Engine SN 1309490.

$

$

Not available

2

Honda 15200-881-003ZA

PUMP ASSY., OIL *NH282MU* (OYSTER SILVER METALLIC-U)

Note: Use from Engine SN 1309491.

$

$

Not available

3

Honda 15331-881-000

ROTOR, OIL PUMP (INNER)

$

$

Not available

4

Honda 15332-881-000

ROTOR, OIL PUMP (OUTER)

$

$

Not available

5

Honda 15410-881-000

FLANGE, OIL FILTER

$22.99

$

Usually ships in 3-6 days

0

6

Honda 15412-881-000

GASKET, OIL FILTER

$10.99

$

Usually ships in 3-6 days

0

7

Honda 15420-881-010

FILTER ASSY., OIL

$

$

Not available

8

Honda 15421-881-000

FILTER, OIL

$

$

Not available

9

Honda 15422-881-010

TUBE, OIL

$

$

Not available

10

Honda 15423-ZV4-000

SEE PART DETAILS - PRI; HOLDER, OIL FILTER

$

$

Not available

11

Honda 15473-881-000

VALVE, CHECK

$11.99

$

Usually ships in 3-6 days

0

12

Honda 15474-881-000

SPRING, VALVE (Honda Code 0497495).

$5.99

$

Usually ships in 3-6 days

0

13

Honda 15611-921-000

SEE PART DETAILS - PRI; CAP, OIL (Honda Code 0282806).

$13.99

$

Usually ships in 3-6 days

0

14

Honda 15612-921-000

DIPSTICK, OIL

$

$

Not available

15

Honda 15620-881-000

SEE PART DETAILS - PRI; BODY, OIL FILLER

$

$

Not available

16

Honda 15622-881-000

GASKET, OIL FILLER BODY

$10.99

$

In Stock, Qty 7

0

17

Honda 18201-881-741

SEE PART DETAILS - PRI; PIPE, EX.

$

$

Not available

18

Honda 18211-881-850

SEE PART DETAILS - PRI; GASKET, EX. PIPE Use from Engine SN 1204900.

$

$

Not available

19

Honda 90009-881-741

SEE PART DETAILS - PRI; BOLT, STUD (6X22)

$

$

Not available

20

Honda 90030-ZY3-000

BOLT, FLANGE (6X22)

$1.49

$

Usually ships in 3-6 days

0

21

Honda 90016-ZY3-000

BOLT, FLANGE (6X28)
(Superseded to 90016-ZZ5-M01)

$1.99

$

Usually ships in 3-6 days

0

22

Honda 90202-ZV0-000

NUT, CAP (6MM)

$3.99

$

Usually ships in 3-6 days

0

23

Honda 90478-700-000

WASHER A (6MM)

$0.99

$

Usually ships in 3-6 days

0

24

Honda 91306-PJ4-000

SEE PART DETAILS - PRI; O-RING (6.8X1.9)

$4.99

$

Usually ships in 3-6 days

0

25

Honda 91301-805-000

SEE PART DETAILS - PRI; O-RING (26X2.7) (Honda Code 0065185).

$4.99

$

Usually ships in 3-6 days

0

26

Honda 91315-935-003

O-RING (25X1.0)

$

$

Not available

27

Honda 93500-05010-0A

SEE PART DETAILS - PRI; SCREW, PAN (5X10) (Honda Code 0156976).

$1.49

$

In Stock, Qty 8

0

28

Honda 94101-05000

SEE PART DETAILS - PRI; WASHER, PLAIN (5MM) (Honda Code 0059055).

$1.49

$

In Stock, only 3 left!

0

29

Honda 95002-41050-08

SEE PART DETAILS - PRI; CLIP, TUBE (10.5MM)

$3.49

$

In Stock, Qty 7

0

30

Honda 96300-06022-09

BOLT, FLANGE (6X22)

$1.99

$

Usually ships in 3-6 days

0

31

Honda 15021-881-000

ROTOR SET, OIL PUMP

$32.99

$

Usually ships in 3-6 days

0
