BF8 AK0 LA (BZBC) - Honda Outboard Engine, Made in Japan (SN: BZBC-2100001 - BZBC-9999999) ENGINE COVER@OIL CASE Parts Diagram

Outboard Engine, Made in Japan

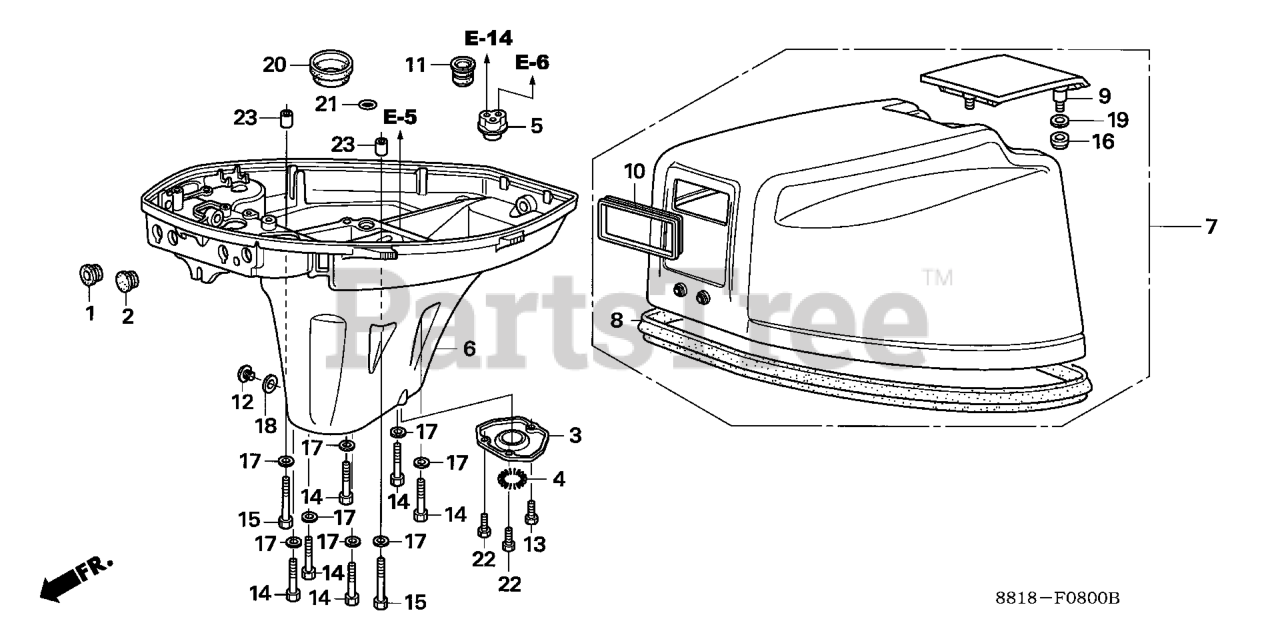

ENGINE COVER@OIL CASE Parts Diagram

  • Title

1

Honda 17914-881-300

GROMMET A, WIRE

$3.99

$

Usually ships in 3-6 days

0

2

Honda 17918-881-000

GROMMET C, OIL CASE

$

$

Not available

3

Honda 18221-881-000

PLATE, EX.

$

$

Not available

4

Honda 18222-881-000

BAND, EX. SEAL

$6.99

$

Usually ships in 3-6 days

0

5

Honda 19262-921-000

MANIFOLD, TUBE

$

$

Not available

6

Honda 40101-881-A04ZB

CASE, OIL *NH282MU* (OYSTER SILVER METALLIC-U)

$1000.99

$

Usually ships in 3-6 days

0

7

Honda 63100-881-842ZB

SEE PART DETAILS - PRI; COVER, ENGINE *NH282MU* (OYSTER SILVER METALLIC-U)

$521.99

$

Usually ships in 3-6 days

0

8

Honda 63102-881-840

SEAL, ENGINE COVER

$

$

Not available

9

Honda 63105-881-840

HANDLE, TILT

$

$

Not available

10

Honda 63109-881-310

SEE PART DETAILS - PRI; SEAL, RECOIL

$

$

Not available

11

Honda 82873-881-010

GROMMET, WATER CHECK

$5.99

$

Usually ships in 3-6 days

0

12

Honda 90105-ZVA-000

SEE PART DETAILS - PRI; BOLT, OIL CHECK

$5.99

$

In Stock, only 2 left!

0

12

Honda 90105-ZV4-650

SEE PART DETAILS - SUP; BOLT, OIL CHECK (8X8)
(Superseded to 90105-ZVA-000)

$5.99

$

In Stock, only 2 left!

0

13

Honda 90106-881-000

BOLT, HEX. (6X12)

$3.49

$

Usually ships in 3-6 days

0

14

Honda 90111-881-000

BOLT, HEX. (6X32)

$3.99

$

Usually ships in 3-6 days

0

15

Honda 90120-ZV4-010

SEE PART DETAILS - PRI; BOLT, HEX. (6X40)

$3.49

$

Usually ships in 3-6 days

0

16

Honda 90304-881-010

SEE PART DETAILS - PRI; NUT (6MM)

$6.49

$

Usually ships in 3-6 days

0

17

Honda 90506-ZV4-000

WASHER, PLAIN (6MM) Use up to Frame SN 4800342.

$3.49

$

Usually ships in 3-6 days

0

18

Honda 90507-921-000

WASHER, NYLON (8MM)

$1.49

$

In Stock, Qty 6

0

19

Honda 90512-921-010

SEE PART DETAILS - PRI; WASHER (6MM)

$1.49

$

Usually ships in 3-6 days

0

20

Honda 91255-881-004

SEE PART DETAILS - PRI; SEAL, COUPLING (25X40X22)

$

$

Not available

21

Honda 91305-PE2-003

O-RING (9.8X1.9)

$3.49

$

Usually ships in 3-6 days

0

22

Honda 92101-06012-4J

SEE PART DETAILS - PRI; BOLT, HEX. (6X12)

$2.49

$

Usually ships in 3-6 days

0

23

Honda 94301-08140

SEE PART DETAILS - PRI; PIN A, DOWEL (8X14) (Honda Code 0069310).

$2.99

$

In Stock, Qty 8

0
