BF8 A3 LA (BZBC) - Honda Outboard Engine, Made in Japan (SN: BZBC-1700001 - BZBC-1799999) OIL PUMP Parts Diagram

Outboard Engine, Made in Japan

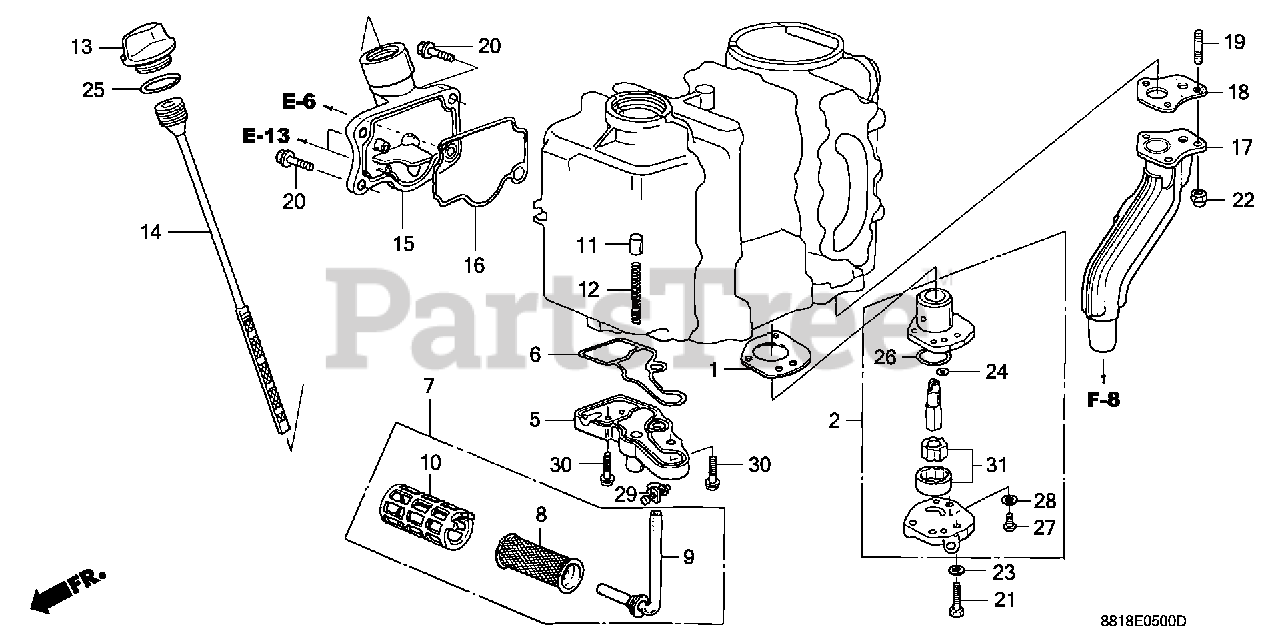

OIL PUMP Parts Diagram

  • Title
1

Honda 15112-881-000

GASKET, PUMP BODY

$

$

Not available

2

Honda 15200-881-003

PUMP ASSY., OIL

$

$

Not available

3

Honda 15331-881-000

ROTOR, OIL PUMP (INNER)

$

$

Not available

4

Honda 15332-881-000

ROTOR, OIL PUMP (OUTER)

$

$

Not available

5

Honda 15410-881-000

FLANGE, OIL FILTER

$24.99

$

Usually ships in 3-6 days

0

6

Honda 15412-881-000

GASKET, OIL FILTER

$10.99

$

Usually ships in 3-6 days

0

7

Honda 15420-881-010

FILTER ASSY., OIL

$

$

Not available

8

Honda 15421-881-000

FILTER, OIL

$

$

Not available

9

$

$

Not available

10

Honda 15423-ZV4-000

SEE PART DETAILS - PRI; HOLDER, OIL FILTER

$

$

Not available

10

Honda 15423-881-000

SEE PART DETAILS - SUP; HOLDER, OIL FILTER
(Superseded to 15423-ZV4-000)

$

$

Not available

11

Honda 15473-881-000

VALVE, CHECK

$12.99

$

Usually ships in 3-6 days

0

12

Honda 15474-881-000

SPRING, CHECK VALVE

$6.49

$

Usually ships in 3-6 days

0

13

Honda 15611-921-000

CAP, OIL (YELLOW)

$14.99

$

Usually ships in 3-6 days

0

14

Honda 15612-921-000

DIPSTICK, OIL

$

$

Not available

15

Honda 15620-881-000

BODY, OIL FILTER

$

$

Not available

16

Honda 15622-881-000

GASKET, OIL FILLER BODY

$11.99

$

In Stock, Qty 7

0

17

$

$

Not available

18

Honda 18211-881-850

SEE PART DETAILS - PRI; GASKET, EX. PIPE

$

$

Not available

19

Honda 90009-881-741

SEE PART DETAILS - PRI; BOLT, STUD (6X22)

$

$

Not available

20

Honda 90025-ZY3-000

BOLT, FLANGE (6X22)

$1.99

$

Usually ships in 3-6 days

0

21

Honda 90016-ZY3-000

BOLT, FLANGE (6X28)
(Superseded to 90016-ZZ5-M01)

$2.49

$

Usually ships in 3-6 days

0

22

Honda 90202-ZV0-000

NUT, CAP (6MM)

$3.99

$

Usually ships in 3-6 days

0

23

Honda 90478-700-000

WASHER A (6MM)

$0.99

$

Usually ships in 3-6 days

0

24

Honda 91306-PJ4-000

O-RING (6.8X1.9)

$4.99

$

Usually ships in 3-6 days

0

25

Honda 91301-805-000

O-RING (26X2.7)

$5.49

$

In Stock, Qty 10

0

26

Honda 91315-935-003

O-RING (25X1.0)

$

$

Not available

27

Honda 93500-05010-0A

SCREW, PAN (5X10)

$1.49

$

In Stock, Qty 8

0

28

Honda 94101-05000

WASHER, PLAIN (5MM)

$1.49

$

In Stock, only 3 left!

0

29

Honda 95002-41050-08

CLAMP, TUBE (D10.5)

$3.49

$

In Stock, Qty 7

0

30

Honda 90025-ZY3-000

BOLT, FLANGE (6X22)

$1.99

$

Usually ships in 3-6 days

0

31

Honda 15021-881-000

ROTOR SET, OIL PUMP

$34.99

$

Usually ships in 3-6 days

0
