BF75 Z LA (BF75) - Honda Marine Engine, Made in Japan (SN: BF75-1100001 - BF75-1103130) FUEL TANK + SUB TANK Parts Diagram

Marine Engine, Made in Japan

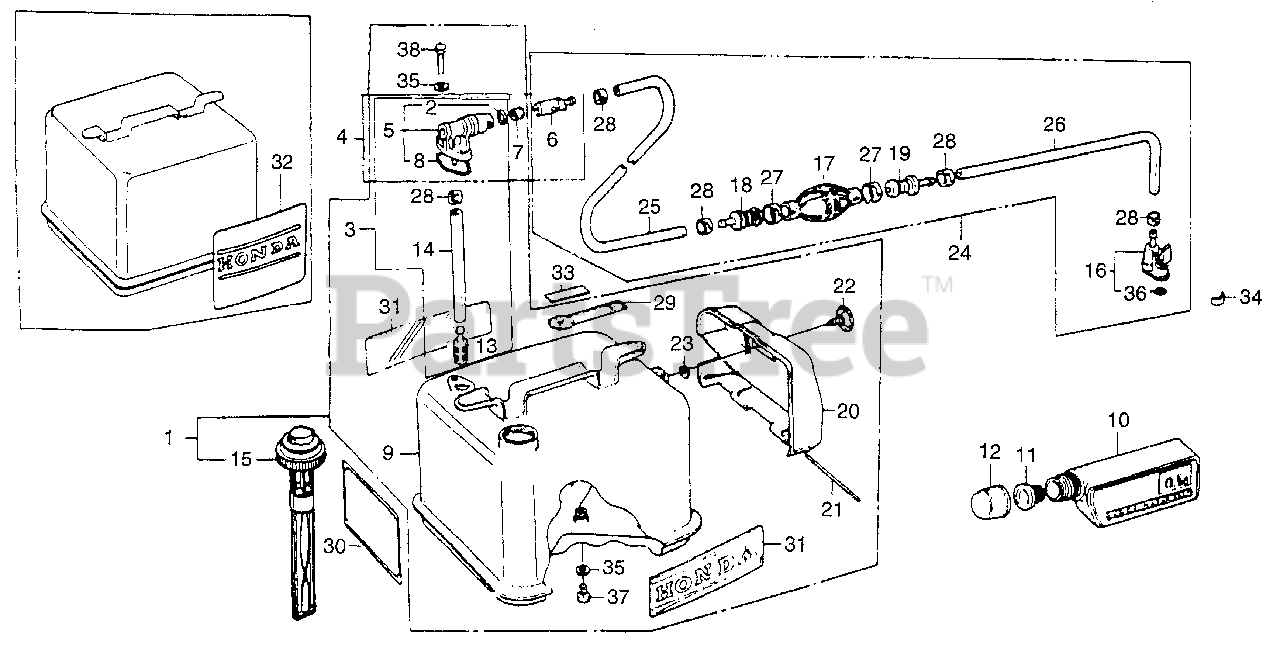

FUEL TANK + SUB TANK Parts Diagram

  • Title

1

Honda 061C7-881-711H

SEE PART DETAILS - PRI; TANK KIT, FUEL *R8* (BRIGHT RED) (NOT AVAILABLE)

$450.99

$

Usually ships in 3-6 days

0

2

Honda 16075-935-006

O-RING

$

$

Not available

3

Honda 16900-881-010

SEE PART DETAILS - PRI; JOINT A, FUEL

$

$

Not available

4

Honda 16950-935-016

SEE PART DETAILS - PRI; JOINT, FUEL CONSENT

$

$

Currently unavailable

5

Honda 16951-935-006

JOINT A, FUEL CONSENT

$

$

Not available

6

Honda 16952-935-016

SEE PART DETAILS - PRI; JOINT B, FUEL CONSENT

$

$

Not available

7

Honda 16953-935-000

ABSORBER, FUEL

$5.49

$

In Stock, only 2 left!

0

8

Honda 16962-865-010

RING, PETCOCK SEAL

$

$

Not available

9

Honda 17500-881-000H

TANK, FUEL *R8* (BRIGHT RED)

$

$

Currently unavailable

10

Honda 17570-921-000

SEE PART DETAILS - PRI; TANK, OIL

$

$

Not available

11

Honda 17572-801-810

CAP, SUB-TANK (INNER)

$

$

Not available

12

Honda 17573-801-810

SEE PART DETAILS - PRI; CAP, SUB-TANK

$

$

Currently unavailable

13

Honda 17583-881-000

FILTER, FUEL

$

$

Not available

14

Honda 17611-935-000

TUBE (INNER)

$

$

Not available

15

Honda 17620-921-153

CAP, FUEL FILLER (NOT AVAILABLE)

$

$

Currently unavailable

16

Honda 17650-921-003ZB

SEE PART DETAILS - PRI; CONNECTOR, FUEL *NH1* (BLACK)

$52.99

$

Usually ships in 3-6 days

0

17

Honda 17661-921-000

SEE PART DETAILS - SUP; BULB, PRIMER
(Superseded to 17661-921-010)

$18.99

$

Usually ships in 3-6 days

0

18

Honda 17670-921-000

VALVE, IN.

$

$

Not available

19

Honda 17680-921-000

VALVE, OUTLET

$13.99

$

Usually ships in 3-6 days

0

20

Honda 17696-921-010

BOX, TOOL

$

$

Not available

21

Honda 17697-921-000

BAR (3X150) (NOT AVAILABLE)

$

$

Currently unavailable

22

Honda 17698-921-000

LATCH, TOOL BOX

$

$

Not available

23

Honda 17699-921-000

STOPPER, LATCH

$

$

Not available

24

Honda 17700-935-000B

SEE PART DETAILS - PRI; TUBE, FUEL *B9* (ATLANTIS BLUE) (NOT AVAILABLE)

$

$

Currently unavailable

25

Honda 17701-921-000

TUBE, FUEL LONG

$

$

Not available

26

Honda 17702-921-000

TUBE, FUEL SHORT

$10.99

$

Usually ships in 3-6 days

0

27

Honda 17703-921-000

SEE PART DETAILS - SUP; BAND, TUBE CLIP (20MM)
(Superseded to 17703-921-010)

$4.99

$

Usually ships in 3-6 days

0

28

Honda 17704-921-000

BAND, TUBE CLIP (11MM)

$

$

Not available

29

Honda 87571-881-670

MARK, TANK CAUTION (ENGLISH/FRENCH)

Note: Use from Frame SN 1010105.

$

$

Currently unavailable

32

Honda 87573-881-670

SEE PART DETAILS - SUP; MARK, TANK (ENGLISH)

$

$

Currently unavailable

35

Honda 90445-700-000

GASKET, FIBER (6MM)

$1.99

$

In Stock, Qty 7

0

36

Honda 91353-921-310

O-RING (5.5X3)

$2.49

$

In Stock, only 1 left!

0

37

Honda 92101-06012-4J

SEE PART DETAILS - PRI; BOLT, HEX. (6X12)

$2.99

$

Usually ships in 3-6 days

0

38

Honda 92101-06016-0B

SEE PART DETAILS - PRI; BOLT, HEX. (6X16)

$1.99

$

Usually ships in 3-6 days

0
