BF75 SA (BF75) - Honda Marine Engine, Made in Japan (SN: BF75-1000002 - BF75-1013304) FUEL PUMP + FUEL PUMP COVER Parts Diagram

Marine Engine, Made in Japan

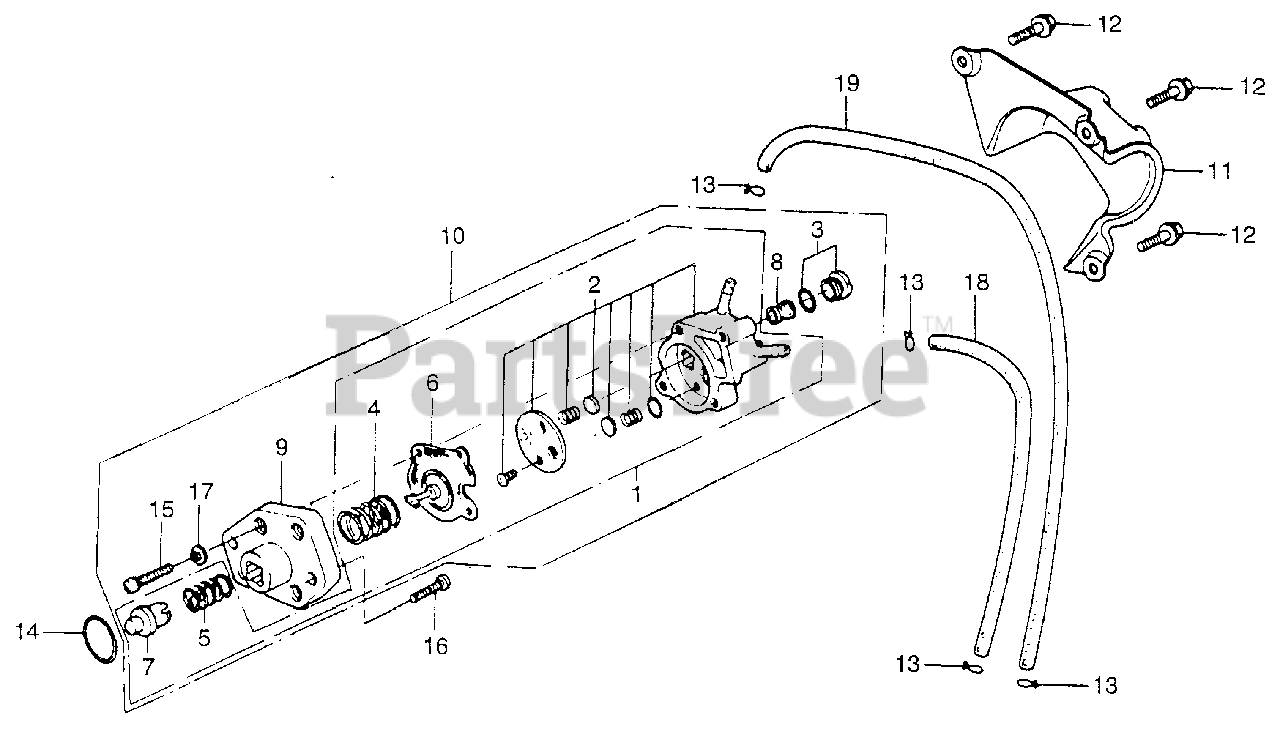

FUEL PUMP + FUEL PUMP COVER Parts Diagram

  • Title

1

Honda 16010-935-308

PARTS SET, FUEL PUMP (NOT AVAILABLE)

Note: Use up to Engine SN 1003549.

$

$

Currently unavailable

2

Honda 16015-935-014

SEE PART DETAILS - PRI; BODY SET, PUMP (NOT AVAILABLE)

$

$

Currently unavailable

3

Honda 16016-935-004

BOLT SET, HOLDING

$23.99

$

Usually ships in 3-6 days

0

4

Honda 16050-935-014

SEE PART DETAILS - PRI; SPRING, DIAPHRAGM (NOT AVAILABLE)

$

$

Currently unavailable

5

Honda 16051-935-014

SEE PART DETAILS - PRI; SPRING, PUSH ROD (NOT AVAILABLE)

$

$

Currently unavailable

6

Honda 16181-935-014

SEE PART DETAILS - PRI; DIAPHRAGM (NOT AVAILABLE)

$

$

Currently unavailable

7

Honda 16182-935-014

SEE PART DETAILS - PRI; ROD, PUSH

$22.99

$

Usually ships in 3-6 days

0

8

Honda 16194-935-004

SCREEN, FUEL STRAINER

$9.49

$

In Stock, only 1 left!

0

9

Honda 16195-935-004

BODY (LOWER) (N/A: SEE ASSEMBLY)

$

$

Currently unavailable

10

Honda 16700-935-325

SEE PART DETAILS - PRI; PUMP ASSY., FUEL (NOT AVAILABLE)

$

$

Not available

11

Honda 16722-881-000

COVER, FUEL PUMP

$

$

Currently unavailable

12

Honda 90123-881-000

BOLT, FLANGE (6X28)

$

$

Not available

13

Honda 90602-921-000

CLIP, TUBE (B8)

$1.99

$

Usually ships in 3-6 days

0

14

Honda 91351-MG7-003

SEE PART DETAILS - PRI; O-RING (20.8X2.4)

$3.49

$

In Stock, only 2 left!

0

15

Honda 93500-04020-0H

SEE PART DETAILS - PRI; SCREW, PAN (4X20)

$1.49

$

Usually ships in 3-6 days

0

16

Honda 93500-06020-0H

SEE PART DETAILS - PRI; SCREW, PAN (6X20)

$1.49

$

Usually ships in 3-6 days

0

17

Honda 94111-04800

WASHER, SPRING (4MM)

$1.49

$

Usually ships in 3-6 days

0

18

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (4.5X320)

$54.99

$

In Stock, only 4 left!

0

19

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (4.5X400)

$54.99

$

In Stock, only 4 left!

0
