BF75 DK4 LRTA (BBAJ) - Honda Marine Engine, Made in Japan (SN: BBAJ-1300001 - BBAJ-9999999) STARTER CABLE Parts Diagram

Marine Engine, Made in Japan

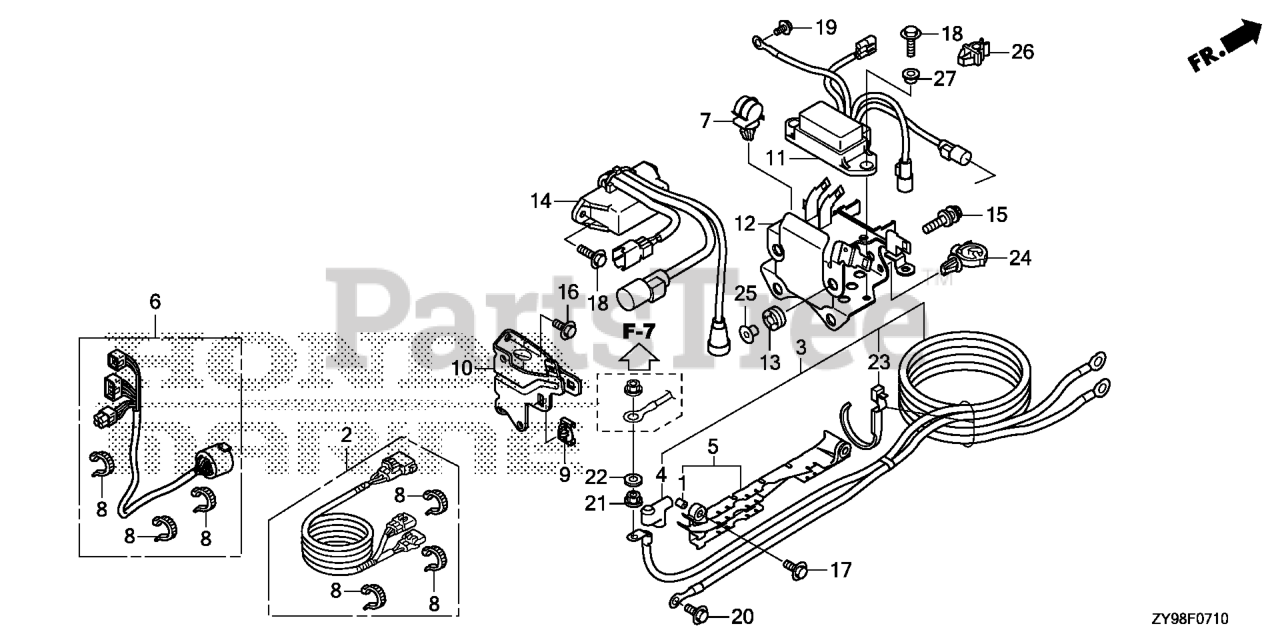

STARTER CABLE Parts Diagram

  • Title

1

Honda 17202-ZV5-310

SEE PART DETAILS - PRI; COLLAR, DISTANCE (6.5X11X7.5)

$3.49

$

Usually ships in 3-6 days

0

1

Honda 17202-ZY9-M01

COLLAR, DISTANCE (6.5X11X7.5)

$3.49

$

Usually ships in 3-6 days

0

3

Honda 32410-ZY9-000

CABLE ASSY., STARTER

$581.99

$

Usually ships in 3-6 days

0

4

Honda 32411-ZY3-003

COVER, STARTER TERMINAL

$19.99

$

Usually ships in 3-6 days

0

5

Honda 32418-ZY9-000

HOLDER, STARTER CABLE

$49.99

$

Usually ships in 3-6 days

0

5

Honda 32418-ZY9-030

HOLDER COMP

$50.99

$

Usually ships in 3-6 days

0

7

Honda 32660-MJ6-710

CLAMP, WIRE

$5.49

$

In Stock, only 1 left!

0

9

Honda 38216-ZY3-003

CLIP, CONNECTOR HOLDER (B)

$3.49

$

Usually ships in 3-6 days

0

10

Honda 38217-ZY9-000

BRACKET, FUSE BOX

$19.99

$

Usually ships in 3-6 days

0

10

Honda 38217-ZY9-010

BRACKET, FUSE BOX

$22.99

$

Usually ships in 3-6 days

0

11

Honda 38550-ZY9-003

RELAY ASSY., POWER TILT

$436.99

$

Usually ships in 3-6 days

0

12

Honda 38552-ZY9-000

BRACKET, RELAY

$87.99

$

Usually ships in 3-6 days

0

13

Honda 38553-ZY9-003

GROMMET, RELAY BRACKET

$6.49

$

Usually ships in 3-6 days

0

14

Honda 38580-ZY9-023

RELAY ASSY., MAIN

$312.99

$

Usually ships in 3-6 days

0

15

Honda 90003-ZZ5-M00

BOLT-WASHER (6X27) (CT200)

Note: Use up to Frame SN 1310371.

$3.99

$

Usually ships in 3-6 days

0

15

Honda 90003-ZZ5-M01

BOLT-WASHER (6X27)

Note: Use from Frame SN 1310372.

$3.99

$

Usually ships in 3-6 days

0

16

Honda 90011-ZZ5-M01

BOLT, FLANGE (6X14) (CT200)

$1.99

$

Usually ships in 3-6 days

0

17

Honda 90018-ZZ5-M00

BOLT, FLANGE (6X20)
(Superseded to 90018-ZZ5-M01)

$2.49

$

Usually ships in 3-6 days

0

17

Honda 90018-ZZ5-M01

BOLT, FLANGE (6X20)

$2.49

$

Usually ships in 3-6 days

0

18

Honda 90021-ZZ5-M01

BOLT, FLANGE (6X14)

Note: Use from Frame SN 1310376.

$1.99

$

Usually ships in 3-6 days

0

19

Honda 90105-ZZ5-M00

BOLT, FLANGE (6X12)

$1.99

$

Usually ships in 3-6 days

0

20

Honda 90107-ZY3-000

BOLT, FLANGE (8X18)

$0.99

$

Usually ships in 3-6 days

0

21

Honda 90203-ZW1-000

NUT-WASHER (8MM)

$3.49

$

Usually ships in 3-6 days

0

22

Honda 90405-ZY3-000

WASHER, PLAIN (8MM)

$0.99

$

Usually ships in 3-6 days

0

23

Honda 90651-KV6-003

BAND, WIRE (165MM) (BLACK)

$4.99

$

Usually ships in 3-6 days

0

24

Honda 90683-SA0-003

CLIP, WIRE HARNESS (25MM) (Honda Code 1226265).

$13.99

$

Usually ships in 3-6 days

0

25

Honda 91503-ZY9-M00

COLLAR, MODULE IGNITION CONTROL CASE (CDI)

Note: Use up to Frame SN 1310375.

$3.49

$

Usually ships in 3-6 days

0

25

Honda 91503-ZY9-M01

COLR, CDI UNIT CASE
(Superseded to 91551-ZVL-010)

Note: Use from Frame SN 1310376.

$3.49

$

Usually ships in 3-6 days

0

25

Honda 91551-ZVL-010

COLLAR (12X6.5)

Note: Use from Frame SN 1310376.

$3.49

$

Usually ships in 3-6 days

0

26

Honda 91531-SZ5-003

CLIP, TUBE (3.5)

$6.49

$

Usually ships in 3-6 days

0

27

Honda 91555-ZZ0-M00

COLLAR, P.T.T. RELAY

Note: Use up to Frame SN 1310371.

$4.99

$

Usually ships in 3-6 days

0

27

Honda 91555-ZZ0-M01

COLLAR, PTT RELAY

Note: Use from Frame SN 1310372.

$5.49

$

Usually ships in 3-6 days

0
