BF75 DK4 LRTA (BBAJ) - Honda Marine Engine, Made in Japan (SN: BBAJ-1300001 - BBAJ-9999999) FUEL TANK Parts Diagram

Marine Engine, Made in Japan

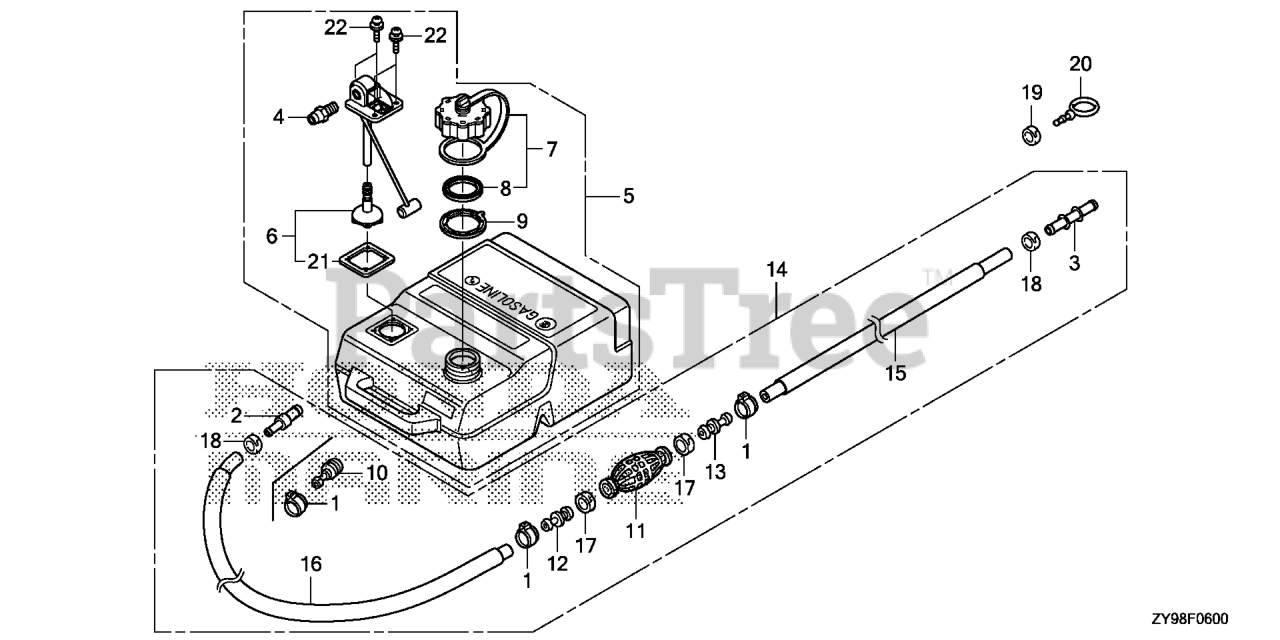

FUEL TANK Parts Diagram

  • Title

1

Honda 16897-ZW9-003

CLAMP, FUEL TUBE (14.0) (CONNECTOR TYPE)

Note: (Optional)

$7.49

$

Usually ships in 3-6 days

0

2

Honda 16966-MR1-000

JOINT, FUEL TUBE (JOINT TYPE)

Note: (Optional)

$11.99

$

Usually ships in 3-6 days

0

3

Honda 16966-MR5-000

JOINT, FUEL TUBE

$11.99

$

Usually ships in 3-6 days

0

4

Honda 16977-ZV5-A00

FITTING, QUICK DISCONNECT Use from Frame SN 1205705.

Note: (Optional)

$21.99

$

Usually ships in 3-6 days

0

5

Honda 17500-ZZ5-711

SEE PART DETAILS - PRI; TANK ASSY., FUEL

Note: (Optional)

$264.99

$

Usually ships in 3-6 days

0

6

Honda 17580-ZZ5-003

FILTER KIT, FUEL

Note: (Optional)

$46.99

$

Usually ships in 3-6 days

0

7

Honda 17620-ZZ5-003

CAP, FUEL FILLER

Note: (Optional)

$49.99

$

Usually ships in 3-6 days

0

8

Honda 17624-ZZ5-003

GASKET, FUEL CAP

Note: (Optional)

$4.49

$

Usually ships in 3-6 days

0

9

Honda 17625-ZZ5-003

RETAINER, PRESSURE RELIEF

Note: (Optional)

$2.49

$

Usually ships in 3-6 days

0

10

Honda 17660-ZW9-003

SEE PART DETAILS - PRI; CONNECTOR, FUEL (CONNECTOR TYPE)

$47.99

$

Usually ships in 3-6 days

0

11

Honda 17661-ZW9-900

BULB, PRIMER

$68.99

$

Usually ships in 3-6 days

0

12

Honda 17665-ZV5-000

VALVE, IN.

$17.99

$

Usually ships in 3-6 days

0

12

Honda 17665-ZX2-003

VALVE, IN.

Note: (Optional)

$16.99

$

Usually ships in 3-6 days

0

13

Honda 17680-ZV4-000

VALVE, OUTLET

$17.99

$

Usually ships in 3-6 days

0

13

Honda 17680-ZX2-003

VALVE, OUTLET

Note: (Optional)

$14.99

$

Usually ships in 3-6 days

0

14

Honda 17700-ZX2-C02

TUBE, FUEL TANK

Note: (Optional)

$277.99

$

Usually ships in 3-6 days

0

14

Honda 17700-ZY9-E05

TUBE, FUEL TANK

$225.99

$

Usually ships in 3-6 days

0

15

Honda 17701-ZX2-A00

TUBE, FUEL LONG (75)

Note: (Optional) Use from Frame SN 1300325.

$114.99

$

Usually ships in 3-6 days

0

15

Honda 17701-ZY9-E04

SEE PART DETAILS - PRI; TUBE, FUEL LONG (7.3X2000)

Note: (Optional) Use up to Frame SN 1300324.

$138.99

$

Usually ships in 3-6 days

0

15

Honda 17702-ZY9-E04

TUBE, FUEL SHORT

Note: Use up to Frame SN 1300312.

$33.99

$

Usually ships in 3-6 days

0

15

Honda 17702-ZY9-E05

TUBE (75)

Note: Use from Frame SN 1300313.

$27.99

$

Usually ships in 3-6 days

0

16

Honda 17701-ZX2-A00

TUBE, FUEL LONG (75)

Note: Use from Frame SN 1300313.

$114.99

$

Usually ships in 3-6 days

0

16

Honda 17701-ZY9-E04

SEE PART DETAILS - PRI; TUBE, FUEL LONG (7.3X2000)

Note: Use up to Frame SN 1300312.

$138.99

$

Usually ships in 3-6 days

0

16

Honda 17702-ZY9-E04

TUBE, FUEL SHORT

Note: (Optional) Use up to Frame SN 1300324.

$33.99

$

Usually ships in 3-6 days

0

16

Honda 17702-ZY9-E05

TUBE (75)

Note: (Optional) Use from Frame SN 1300325.

$27.99

$

Usually ships in 3-6 days

0

17

Honda 17703-921-010

SEE PART DETAILS - PRI; BAND, TUBE CLIP (20MM)

$5.49

$

Usually ships in 3-6 days

0

18

Honda 17704-ZV4-010

SEE PART DETAILS - PRI; BAND, TUBE CLIP (12.5MM)

$3.49

$

Usually ships in 3-6 days

0

19

Honda 17704-ZV4-010

SEE PART DETAILS - PRI; BAND, TUBE CLIP (12.5MM)

$3.49

$

Usually ships in 3-6 days

0

20

Honda 17738-ZY3-000

PLUG, FUEL TUBE

$14.99

$

Usually ships in 3-6 days

0

21

Honda 17742-ZZ5-003

GASKET, FUEL PICK-UP

Note: (Optional)

$6.49

$

Usually ships in 3-6 days

0

22

Honda 17743-ZZ5-003

BOLT-WASHER (5MM) (SEAL)

Note: (Optional)

$4.49

$

Usually ships in 3-6 days

0
