BF75 DK3 LRTA (BBAJ) - Honda Marine Engine, Made in Japan (SN: BBAJ-1200001 - BBAJ-1299999) STARTER CABLE Parts Diagram

Marine Engine, Made in Japan

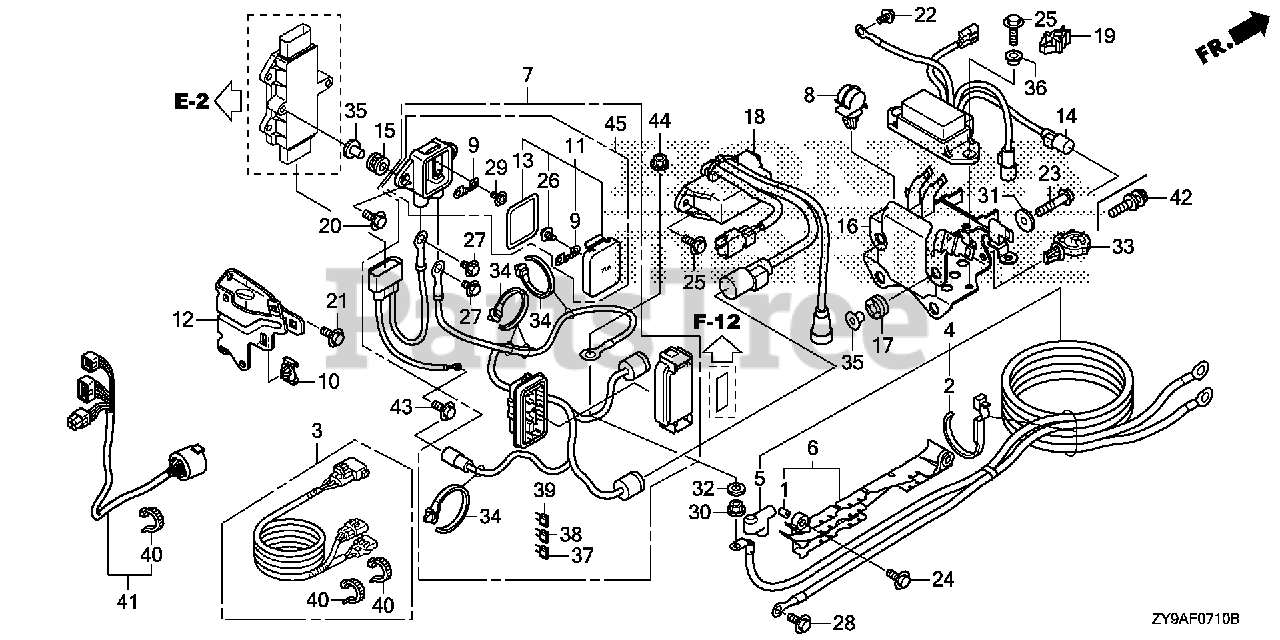

STARTER CABLE Parts Diagram

  • Title
1

Honda 17202-ZV5-310

SEE PART DETAILS - PRI; COLLAR, DISTANCE (6.5X11X7.5)

$2.99

$

Usually ships in 3-6 days

0

2

Honda 32121-HA0-003

BAND, WIRE

Note: Use up to Frame SN 1200026.

$10.99

$

Usually ships in 3-6 days

0

2

Honda 90651-KV6-003

BAND, WIRE (165MM) (BLACK)

Note: Use from Frame SN 1200027.

$4.99

$

Usually ships in 3-6 days

0

4

Honda 32410-ZY9-000

CABLE ASSY., STARTER

$519.99

$

Usually ships in 3-6 days

0

5

Honda 32411-ZY3-003

COVER, STARTER TERMINAL

$18.99

$

Usually ships in 3-6 days

0

6

Honda 32418-ZY9-000

HOLDER, STARTER CABLE

$43.99

$

Usually ships in 3-6 days

0

8

Honda 32660-MJ6-710

CLAMP, WIRE

$4.99

$

In Stock, only 1 left!

0

10

Honda 38216-ZY3-003

CLIP, CONNECTOR HOLDER (B)

$2.99

$

Usually ships in 3-6 days

0

12

Honda 38217-ZY9-000

BRACKET, FUSE BOX

$19.99

$

Usually ships in 3-6 days

0

14

Honda 38550-ZY9-003

RELAY ASSY., POWER TILT

$390.99

$

Usually ships in 3-6 days

0

16

Honda 38552-ZY9-000

BRACKET, RELAY

$78.99

$

Usually ships in 3-6 days

0

17

Honda 38553-ZY9-003

GROMMET, RELAY BRACKET

$5.99

$

Usually ships in 3-6 days

0

18

Honda 38580-ZY9-013

RELAY ASSY., MAIN
(Superseded to 38580-ZY9-023)

$279.99

$

Usually ships in 3-6 days

0

18

Honda 38580-ZY9-023

RELAY ASSY., MAIN

$279.99

$

Usually ships in 3-6 days

0

19

Honda 91531-SZ5-003

CLIP, TUBE (3.5)

$5.99

$

Usually ships in 3-6 days

0

21

Honda 90011-ZW9-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X14) (CT200)

$2.49

$

In Stock, only 1 left!

0

22

Honda 90013-ZW9-000

BOLT, FLANGE (6X12)

$1.99

$

Usually ships in 3-6 days

0

24

Honda 90018-ZW5-000

BOLT, FLANGE (6X20)

$2.49

$

Usually ships in 3-6 days

0

25

Honda 90021-ZY3-000

BOLT, FLANGE (6X14)
(Superseded to 90021-ZZ5-M01)

$1.99

$

Usually ships in 3-6 days

0

28

Honda 90107-ZY3-000

BOLT, FLANGE (8X18)

$0.99

$

Usually ships in 3-6 days

0

30

Honda 90203-ZW1-000

NUT-WASHER (8MM)

$3.49

$

Usually ships in 3-6 days

0

32

Honda 90405-ZY3-000

WASHER, PLAIN (8MM)

$0.99

$

Usually ships in 3-6 days

0

33

Honda 90683-SA0-003

CLIP, WIRE HARNESS (25MM) (Honda Code 1226265).

$12.99

$

Usually ships in 3-6 days

0

35

Honda 91553-ZV5-010

SEE PART DETAILS - PRI; COLLAR, MODULE IGNITION CONTROL CASE (CDI)

$3.99

$

Usually ships in 3-6 days

0

36

Honda 91555-ZY9-000

COLLAR, P.T.T. RELAY

$5.99

$

Usually ships in 3-6 days

0

42

Honda 90003-ZW2-000

BOLT-WASHER (6X27) (CT200)

$3.49

$

Usually ships in 3-6 days

0
