BF75 DK0 LRTA (BBAJ) - Honda Marine Engine, Made in Japan (SN: BBAJ-1000001 - BBAJ-9999999) SILENCER CASE@THROTTLE BODY Parts Diagram

Marine Engine, Made in Japan

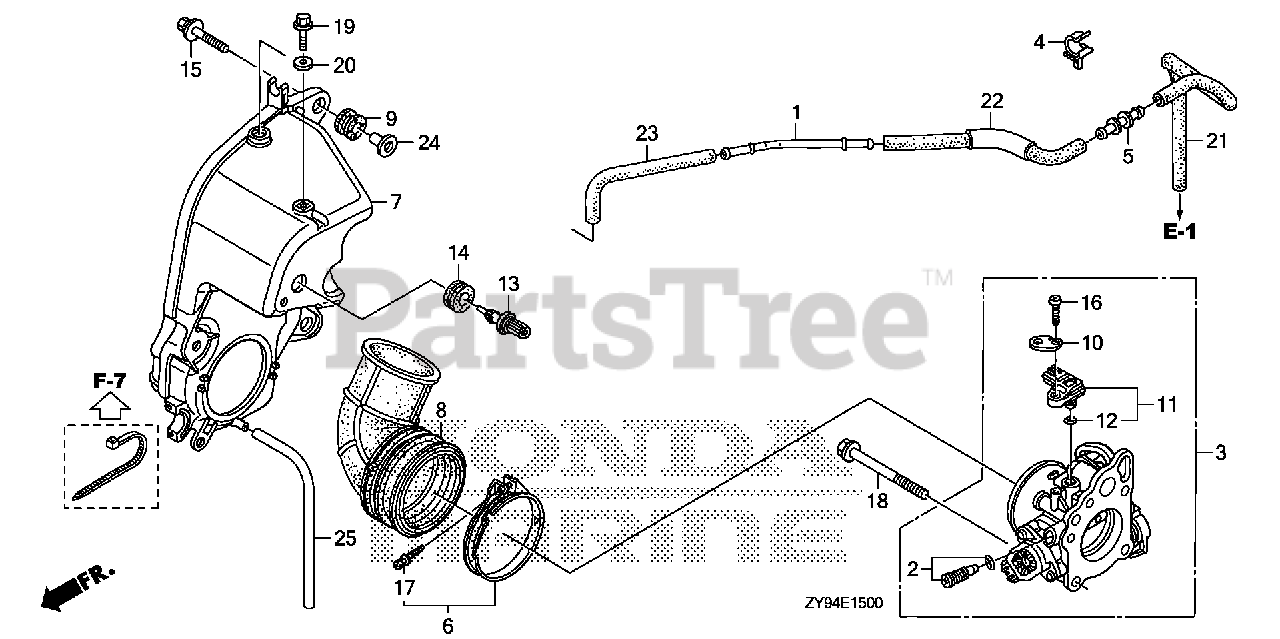

SILENCER CASE@THROTTLE BODY Parts Diagram

  • Title

1

Honda 15171-ZY9-000

PIPE, BREATHER

$9.49

$

Usually ships in 3-6 days

0

2

Honda 16016-ZY6-003

SCREW SET

$8.99

$

Usually ships in 3-6 days

0

3

Honda 16400-ZY9-003

BODY ASSY., THROTTLE

$565.99

$

Usually ships in 3-6 days

0

4

Honda 16896-ZY9-003

CLAMP B, FUEL TUBE

$3.99

$

Usually ships in 3-6 days

0

5

Honda 16966-MR5-000

JOINT, FUEL TUBE

$10.99

$

Usually ships in 3-6 days

0

6

Honda 17315-ZY9-000

BAND, AIR FLOW
(Superseded to 17315-ZY9-M01)

$16.99

$

Usually ships in 3-6 days

0

7

Honda 17371-ZY9-000

CASE, MUFFLER

$265.99

$

Usually ships in 3-6 days

0

8

Honda 17374-ZY9-000

GROMMET, MUFFLER

$44.99

$

Usually ships in 3-6 days

0

9

Honda 30419-ZY9-003

GROMMET, ELECTRONIC PARTS CASE

$5.99

$

Usually ships in 3-6 days

0

10

Honda 32128-ZY3-000

BRACKET, SENSOR WIRE

$4.99

$

Usually ships in 3-6 days

0

11

Honda 37830-PNC-003

SENSOR ASSY., MAP

$165.99

$

Usually ships in 3-6 days

0

12

Honda 37835-PGK-A01

O-RING

$12.99

$

Usually ships in 3-6 days

0

13

Honda 37880-PLC-004

SENSOR ASSY., AIR TEMPERATURE (MATSUSHITA DENSHI)

$86.99

$

Usually ships in 3-6 days

0

14

Honda 37881-P2A-000

GROMMET, TA SENSOR

$6.99

$

Usually ships in 3-6 days

0

15

Honda 90003-ZW2-000

BOLT-WASHER (6X27) (CT200)
(Superseded to 90003-ZZ5-M01)

$3.99

$

Usually ships in 3-6 days

0

16

Honda 90006-ZY6-000

SCREW, PAN (5X18)

$3.99

$

Usually ships in 3-6 days

0

17

Honda 90017-ZY9-000

BOLT-WASHER (5X30)

$4.99

$

Usually ships in 3-6 days

0

18

Honda 90127-ZV1-010

SEE PART DETAILS - PRI; BOLT, FLANGE (8X60)
(Superseded to 90027-ZY9-M01)

$3.99

$

Usually ships in 3-6 days

0

19

Honda 90169-ZW4-000

BOLT, FLANGE (6X25) (SH)

$2.49

$

Usually ships in 3-6 days

0

20

Honda 90508-ZY3-000

WASHER, PLAIN (6MM)
(Superseded to 90508-ZZ5-M01)

$2.99

$

Usually ships in 3-6 days

0

21

Honda 91403-ZY9-000

TUBE A, BREATHER

$6.99

$

Usually ships in 3-6 days

0

22

Honda 91404-ZY9-000

TUBE B, BREATHER

$5.99

$

Usually ships in 3-6 days

0

23

Honda 91405-ZY9-000

TUBE C, BREATHER

$7.99

$

Usually ships in 3-6 days

0

24

Honda 91553-ZV5-010

SEE PART DETAILS - PRI; COLLAR, MODULE IGNITION CONTROL CASE (CDI)

$3.99

$

Usually ships in 3-6 days

0

25

Honda 95003-07008-60M

BULK HOSE, VINYL (4X7X8000) (95003-07(95003-07001-60M) (CARBURETOR NO.)

$36.99

$

Usually ships in 3-6 days

0
