BF75 DK0 LRTA (BBAJ) - Honda Marine Engine, Made in Japan (SN: BBAJ-1000001 - BBAJ-9999999) FUEL TANK Parts Diagram

Marine Engine, Made in Japan

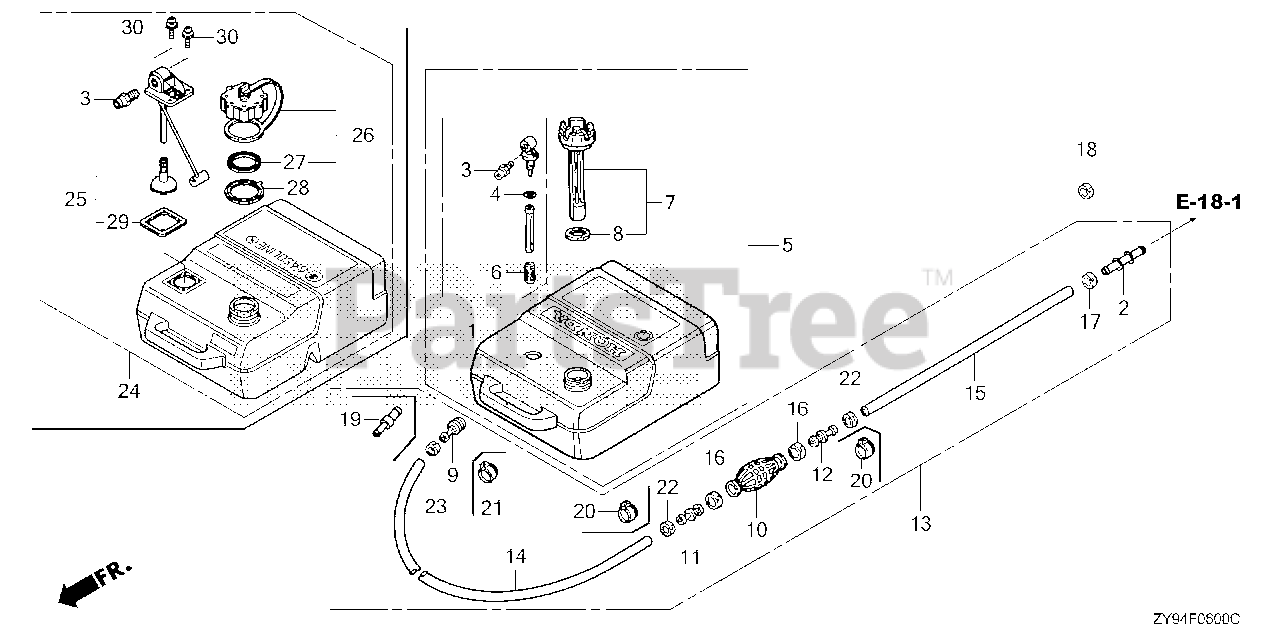

FUEL TANK Parts Diagram

  • Title

1

Honda 16900-ZV5-902

SEE PART DETAILS - PRI; JOINT ASSY., FUEL Use from Frame SN 1300962.

Note: (Optional).

$39.99

$

Usually ships in 3-6 days

0

2

Honda 16966-MR5-000

JOINT, FUEL TUBE

Note: Use from Frame SN 1001774.

$10.99

$

Usually ships in 3-6 days

0

2

Honda 16966-MR5-000

JOINT, FUEL TUBE

Note: Use up to Frame SN 1001773.

$10.99

$

Usually ships in 3-6 days

0

3

Honda 16977-ZV5-A00

FITTING, QUICK DISCONNECT Use from Frame SN 1205705.

Note: (Optional).

$20.99

$

Usually ships in 3-6 days

0

4

Honda 16979-ZV5-901

SEE PART DETAILS - PRI; O-RING Use from Frame SN 1300962.

Note: (Optional).

$0.99

$

Usually ships in 3-6 days

0

5

Honda 17500-ZZ5-711

SEE PART DETAILS - PRI; TANK ASSY., FUEL

Note: (Optional).Use up to Frame SN 1000686.

$253.99

$

Usually ships in 3-6 days

0

5

Honda 17500-ZZ5-711

SEE PART DETAILS - PRI; TANK ASSY., FUEL

Note: (Optional).Use from Frame SN 1000687.

$253.99

$

Usually ships in 3-6 days

0

6

Honda 17583-ZV5-901

SEE PART DETAILS - PRI; FILTER, FUEL

Note: (Optional).

$2.99

$

Usually ships in 3-6 days

0

7

Honda 17620-ZV5-903

SEE PART DETAILS - PRI; CAP, FUEL FILLER

Note: (Optional).Use from Frame SN 1005432.

$

$

Not available

7

Honda 17620-ZV5-902

SEE PART DETAILS - SUP; CAP, FUEL FILLER

Note: (Optional).Use up to Frame SN 1005431.

$

$

Currently unavailable

8

Honda 17624-ZV5-902

GASKET, FUEL CAP

Note: (Optional).

$9.49

$

Usually ships in 3-6 days

0

9

Honda 17660-ZW9-003

SEE PART DETAILS - PRI; CONNECTOR, FUEL (CONNECTOR TYPE)

Note: Use from Frame SN 1001774.

$45.99

$

Usually ships in 3-6 days

0

9

Honda 17660-ZW9-003

SEE PART DETAILS - PRI; CONNECTOR, FUEL (CONNECTOR TYPE)

Note: Use up to Frame SN 1001773.

$45.99

$

Usually ships in 3-6 days

0

10

Honda 17661-ZW9-900

BULB, PRIMER

Note: Use from Frame SN 1006400.

$65.99

$

Usually ships in 3-6 days

0

10

Honda 17661-921-010

SEE PART DETAILS - PRI; BULB, PRIMER

Note: Use up to Frame SN 1001773.

$18.99

$

Usually ships in 3-6 days

0

10

Honda 17661-921-010

SEE PART DETAILS - PRI; BULB, PRIMER

Note: Use from Frame SN 1001774 to 1006399.

$18.99

$

Usually ships in 3-6 days

0

11

Honda 17665-ZV5-000

VALVE, IN.

Note: Use from Frame SN 1001774.

$17.99

$

Usually ships in 3-6 days

0

11

Honda 17665-ZV5-000

VALVE, IN.

Note: Use up to Frame SN 1001773.

$17.99

$

Usually ships in 3-6 days

0

12

Honda 17680-ZV4-000

VALVE, OUTLET

Note: Use from Frame SN 1001774.

$17.99

$

Usually ships in 3-6 days

0

12

Honda 17680-ZV4-000

VALVE, OUTLET

Note: Use up to Frame SN 1001773.

$17.99

$

Usually ships in 3-6 days

0

13

Honda 17700-ZY3-C03

TUBE ASSY., FUEL TANK (JOINT TYPE)(FKM)

Note: (Optional).Use from Frame SN 1004813 to 1005434.

$222.99

$

Usually ships in 3-6 days

0

13

Honda 17700-ZY3-C03

TUBE ASSY., FUEL TANK (JOINT TYPE)(FKM)

Note: (Optional).Use from Frame SN 1005435.

$222.99

$

Usually ships in 3-6 days

0

13

Honda 17700-ZY3-010

TUBE ASSY., FUEL (JOINT TYPE)

Note: (Optional).Use up to Frame SN 1004812.

$115.99

$

Usually ships in 3-6 days

0

13

Honda 17700-ZY9-E05

TUBE, FUEL TANK

Note: Use from Frame SN 1005135.

$216.99

$

Usually ships in 3-6 days

0

13

Honda 17700-ZY9-E05

TUBE, FUEL TANK

Note: Use from Frame SN 1005435.

$216.99

$

Usually ships in 3-6 days

0

13

Honda 17700-ZY9-000

TUBE ASSY., FUEL TANK (CONNECTOR TYPE)

Note: Use from Frame SN 1001774 to 1005134.

$

$

Not available

13

Honda 17700-ZY9-000

TUBE ASSY., FUEL TANK (CONNECTOR TYPE)

Note: Use up to Frame SN 1001773.

$

$

Not available

14

Honda 17701-ZV5-000

TUBE, FUEL LONG (7.3X2000) (CONNECTOR TYPE)

Note: Use from Frame SN 1001774 to 1005134.

$64.99

$

Usually ships in 3-6 days

0

14

Honda 17701-ZV5-000

TUBE, FUEL LONG (7.3X2000) (CONNECTOR TYPE)

Note: Use up to Frame SN 1001773.

$64.99

$

Usually ships in 3-6 days

0

14

Honda 17701-ZY9-E02

TUBE, FUEL LONG (7.3X2000) (CONNECTOR TYPE)
(Superseded to 17701-ZY9-E04)

Note: Use from Frame SN 1005435 to 1006399.

$132.99

$

Usually ships in 3-6 days

0

14

Honda 17701-ZY9-E04

SEE PART DETAILS - PRI; TUBE, FUEL LONG (7.3X2000)

Note: Use from Frame SN 1005135 to 1005434.

$132.99

$

Usually ships in 3-6 days

0

14

Honda 17701-ZY9-E04

SEE PART DETAILS - PRI; TUBE, FUEL LONG (7.3X2000)

Note: Use from Frame SN 1005435.

$132.99

$

Usually ships in 3-6 days

0

14

Honda 17701-ZY9-E04

SEE PART DETAILS - PRI; TUBE, FUEL LONG (7.3X2000)

Note: Use from Frame SN 1006400.

$132.99

$

Usually ships in 3-6 days

0

14

Honda 17702-ZV4-000

TUBE, FUEL SHORT (6.3X500) (CONNECTOR TYPE)

Note: (Optional).Use up to Frame SN 1005134.

$13.99

$

Usually ships in 3-6 days

0

14

Honda 17702-ZY9-E02

TUBE, FUEL SHORT (7.3X500) (CONNECTOR TYPE)

Note: (Optional).Use from Frame SN 1005435.

$32.99

$

Usually ships in 3-6 days

0

14

Honda 17702-ZY9-E03

TUBE, FUEL SHORT (CONNECTOR TYPE)
(Superseded to 17702-ZY9-E04)

Note: (Optional).Use from Frame SN 1005135 to 1005434.

$33.99

$

Usually ships in 3-6 days

0

15

Honda 17701-ZV5-000

TUBE, FUEL LONG (7.3X2000) (CONNECTOR TYPE)

Note: (Optional).Use up to Frame SN 1004812.

$64.99

$

Usually ships in 3-6 days

0

15

Honda 17701-ZY9-E02

TUBE, FUEL LONG (7.3X2000) (CONNECTOR TYPE)
(Superseded to 17701-ZY9-E04)

Note: (Optional).Use from Frame SN 1005435.

$132.99

$

Usually ships in 3-6 days

0

15

Honda 17701-ZY9-E04

SEE PART DETAILS - PRI; TUBE, FUEL LONG (7.3X2000)

Note: (Optional).Use from Frame SN 1005135.

$132.99

$

Usually ships in 3-6 days

0

15

Honda 17701-ZY9-E04

SEE PART DETAILS - PRI; TUBE, FUEL LONG (7.3X2000)

Note: (Optional).Use from Frame SN 1004813 to 1005434.

$132.99

$

Usually ships in 3-6 days

0

15

Honda 17701-ZY9-E04

SEE PART DETAILS - PRI; TUBE, FUEL LONG (7.3X2000)

Note: (Optional).Use from Frame SN 1016262.

$132.99

$

Usually ships in 3-6 days

0

15

Honda 17702-ZV4-000

TUBE, FUEL SHORT (6.3X500) (CONNECTOR TYPE)

Note: Use from Frame SN 1001774 to 1005134.

$13.99

$

Usually ships in 3-6 days

0

15

Honda 17702-ZV4-000

TUBE, FUEL SHORT (6.3X500) (CONNECTOR TYPE)

Note: Use up to Frame SN 1001773.

$13.99

$

Usually ships in 3-6 days

0

15

Honda 17702-ZY9-E02

TUBE, FUEL SHORT (7.3X500) (CONNECTOR TYPE)

Note: Use from Frame SN 1005435 to 1006399.

$32.99

$

Usually ships in 3-6 days

0

15

Honda 17702-ZY9-E03

TUBE, FUEL SHORT (CONNECTOR TYPE)
(Superseded to 17702-ZY9-E04)

Note: Use from Frame SN 1005135 to 1005434.

$33.99

$

Usually ships in 3-6 days

0

15

Honda 17702-ZY9-E03

TUBE, FUEL SHORT (CONNECTOR TYPE)
(Superseded to 17702-ZY9-E04)

Note: Use from Frame SN 1006400.

$33.99

$

Usually ships in 3-6 days

0

16

Honda 17703-921-010

SEE PART DETAILS - PRI; BAND, TUBE CLIP (20MM)

Note: Use from Frame SN 1001774.

$4.99

$

Usually ships in 3-6 days

0

16

Honda 17703-921-010

SEE PART DETAILS - PRI; BAND, TUBE CLIP (20MM)

Note: Use up to Frame SN 1001773.

$4.99

$

Usually ships in 3-6 days

0

17

Honda 17704-ZV4-010

SEE PART DETAILS - PRI; BAND, TUBE CLIP (12.5MM)

Note: Use from Frame SN 1001774.

$3.49

$

Usually ships in 3-6 days

0

17

Honda 17704-ZV4-010

SEE PART DETAILS - PRI; BAND, TUBE CLIP (12.5MM)

$3.49

$

Usually ships in 3-6 days

0

18

Honda 17704-ZV4-010

SEE PART DETAILS - PRI; BAND, TUBE CLIP (12.5MM)

$3.49

$

Usually ships in 3-6 days

0

19

Honda 16966-MR1-000

JOINT, FUEL TUBE (JOINT TYPE)

Note: (Optional).

$10.99

$

Usually ships in 3-6 days

0

20

Honda 16895-ZW9-900

CLAMP, FUEL TUBE (CONNECTOR TYPE)

Note: Use from Frame SN 1005135 to 1006399.

$5.49

$

Usually ships in 3-6 days

0

20

Honda 16897-ZW9-003

CLAMP, FUEL TUBE (14.0) (CONNECTOR TYPE)

Note: Use from Frame SN 1006400.

$7.49

$

Usually ships in 3-6 days

0

21

Honda 16895-ZW9-900

CLAMP, FUEL TUBE (CONNECTOR TYPE)

Note: Use from Frame SN 1005135 to 1006399.

$5.49

$

Usually ships in 3-6 days

0

21

Honda 16897-ZW9-003

CLAMP, FUEL TUBE (14.0) (CONNECTOR TYPE)

Note: Use from Frame SN 1006400.

$7.49

$

Usually ships in 3-6 days

0

22

Honda 17704-ZV4-010

SEE PART DETAILS - PRI; BAND, TUBE CLIP (12.5MM)

Note: Use up to Frame SN 1005134.

$3.49

$

Usually ships in 3-6 days

0

22

Honda 17704-ZV4-010

SEE PART DETAILS - PRI; BAND, TUBE CLIP (12.5MM)

Note: Use from Frame SN 1005135.

$3.49

$

Usually ships in 3-6 days

0

23

Honda 17704-ZV4-010

SEE PART DETAILS - PRI; BAND, TUBE CLIP (12.5MM)

Note: Use up to Frame SN 1005134.

$3.49

$

Usually ships in 3-6 days

0

23

Honda 17704-ZV4-010

SEE PART DETAILS - PRI; BAND, TUBE CLIP (12.5MM)

Note: Use from Frame SN 1005135.

$3.49

$

Usually ships in 3-6 days

0

24

Honda 17500-ZZ5-711

SEE PART DETAILS - PRI; TANK ASSY., FUEL

Note: (Optional).

$253.99

$

Usually ships in 3-6 days

0

25

Honda 17580-ZZ5-003

FILTER KIT, FUEL

Note: (Optional).

$44.99

$

Usually ships in 3-6 days

0

26

Honda 17620-ZZ5-003

CAP, FUEL FILLER

Note: (Optional).

$47.99

$

Usually ships in 3-6 days

0

27

Honda 17624-ZZ5-003

GASKET, FUEL CAP

Note: (Optional).

$4.49

$

Usually ships in 3-6 days

0

28

Honda 17625-ZZ5-003

RETAINER, PRESSURE RELIEF

Note: (Optional).

$1.99

$

Usually ships in 3-6 days

0

29

Honda 17742-ZZ5-003

GASKET, FUEL PICK-UP

Note: (Optional).

$6.49

$

Usually ships in 3-6 days

0

30

Honda 17743-ZZ5-003

BOLT-WASHER (5MM) (SEAL)

Note: (Optional).

$4.49

$

Usually ships in 3-6 days

0
