BF75 DK0 LHTA (BBAJ) - Honda Marine Engine, Made in Japan (SN: BBAJ-1000001 - BBAJ-9999999) REMOTE CONTROL (TOP MOUNT DUAL TYPE) (L.) Parts Diagram

Marine Engine, Made in Japan

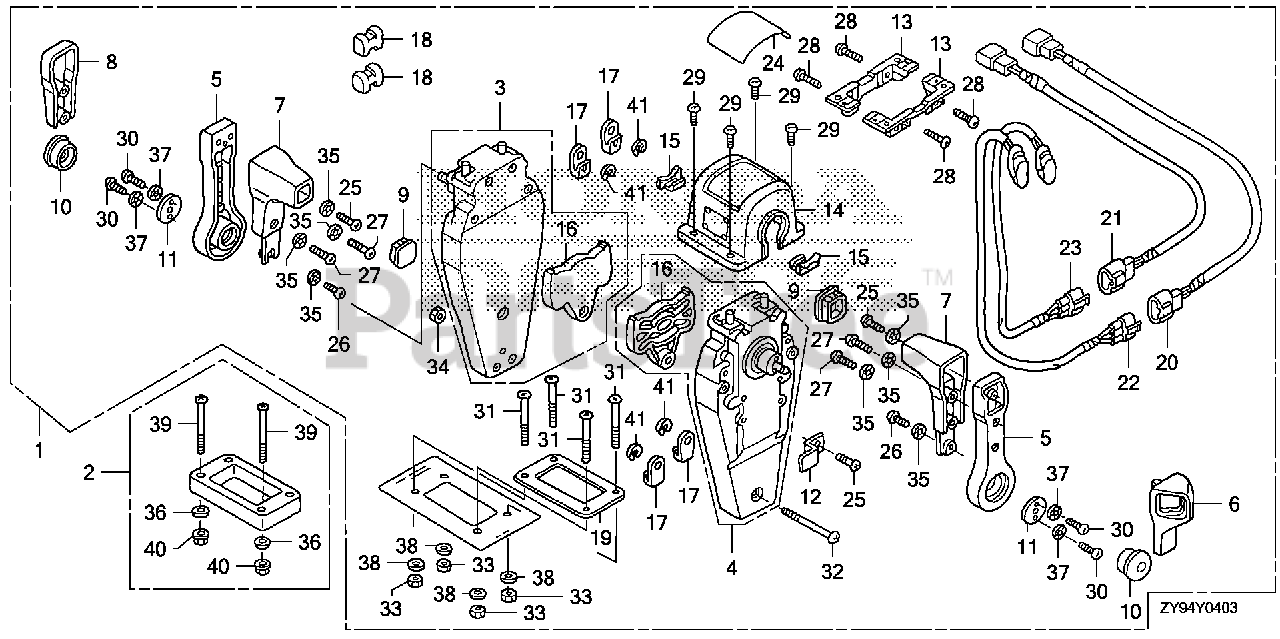

REMOTE CONTROL (TOP MOUNT DUAL TYPE) (L.) Parts Diagram

  • Title

1

Honda 06240-ZW5-U70

SEE PART DETAILS - PRI; BOX KIT, L. REMOTE CONTROL (TOP MOUNT DUAL)

Note: (Optional).

$

$

Not available

2

Honda 06241-ZW5-U10

SEE PART DETAILS - PRI; SPACER KIT, REMOTE CONTROL BOX (TOP MOUNT DUAL)

Note: (Optional).

$52.99

$

Usually ships in 3-6 days

0

3

Honda 24810-ZW5-U01

SEE PART DETAILS - PRI; HOUSING ASSY., L. (INNER) (TOP MOUNT)

Note: (Optional).

$563.99

$

Usually ships in 3-6 days

0

4

Honda 24810-ZW5-U11

SEE PART DETAILS - PRI; HOUSING ASSY., R. (INNER) (TOP MOUNT)

Note: (Optional).

$563.99

$

Usually ships in 3-6 days

0

5

Honda 24811-ZW5-U01

SEE PART DETAILS - PRI; HANDLE, REMOTE CONTROL

Note: (Optional).

$125.99

$

Usually ships in 3-6 days

0

6

Honda 24812-ZW5-U11

SEE PART DETAILS - PRI; COVER, R. GRIP

Note: (Optional).

$18.99

$

Usually ships in 3-6 days

0

7

Honda 24813-ZW5-U01

SEE PART DETAILS - PRI; GRIP, REMOTE CONTROL HANDLE

Note: (Optional).

$16.99

$

Usually ships in 3-6 days

0

8

Honda 24813-ZW5-U21

SEE PART DETAILS - PRI; COVER, DUAL GRIP

Note: (Optional).

$7.49

$

Usually ships in 3-6 days

0

9

Honda 24814-ZW5-U01

SEE PART DETAILS - PRI; CAP, GRIP

Note: (Optional).

$4.99

$

Usually ships in 3-6 days

0

10

Honda 24816-ZW5-U01

SEE PART DETAILS - PRI; BUTTON, THROTTLE

Note: (Optional).

$10.99

$

Usually ships in 3-6 days

0

11

Honda 24817-ZW5-U01

PLATE, HANDLE

Note: (Optional).

$42.99

$

Usually ships in 3-6 days

0

12

Honda 24818-ZW5-U01

PLATE, CABLE CLAMP

Note: (Optional).

$10.99

$

Usually ships in 3-6 days

0

13

Honda 24819-ZW5-U01

BRACKET, REMOTE CONTROL HOUSING

Note: (Optional).

$14.99

$

Usually ships in 3-6 days

0

14

Honda 24820-ZW5-U21

HOUSING, DUAL REMOTE CONTROL BOX

Note: (Optional).

$40.99

$

Usually ships in 3-6 days

0

15

Honda 24825-ZW5-U01

SEE PART DETAILS - PRI; HOUSING, LEAD

Note: (Optional).

$3.99

$

Usually ships in 3-6 days

0

16

Honda 24826-ZW5-U01

SEE PART DETAILS - PRI; PLATE, DWELL

Note: (Optional).

$19.99

$

Usually ships in 3-6 days

0

17

Honda 24831-ZW5-U01

TERMINAL, CABLE

Note: (Optional).

$11.99

$

In Stock, only 2 left!

0

18

Honda 24832-ZW5-U01

SPACER, CABLE CLAMP

Note: (Optional).

$4.99

$

Usually ships in 3-6 days

0

19

Honda 24834-ZW5-U21

GASKET, DUAL

Note: (Optional).

$11.99

$

Usually ships in 3-6 days

0

20

Honda 32530-ZW7-U00

SUB-HARNESS ASSY., POWER TRIM-TILT (A)

Note: (Optional).

$35.99

$

Usually ships in 3-6 days

0

21

Honda 32530-ZW7-U10

SUB-HARNESS ASSY., POWER TRIM-TILT (B)

Note: (Optional).

$35.99

$

Usually ships in 3-6 days

0

22

Honda 35370-ZW5-U02

SWITCH ASSY., POWER TRIM-TILT (A)

Note: (Optional).

$71.99

$

Usually ships in 3-6 days

0

23

Honda 35370-ZW5-U12

SEE PART DETAILS - PRI; SWITCH ASSY., POWER TRIM-TILT

Note: (Optional).

$71.99

$

Usually ships in 3-6 days

0

24

Honda 87703-ZW5-U22

SEE PART DETAILS - PRI; MARK, REMOTE CONTROL (DUAL)

Note: (Optional).

$12.99

$

Usually ships in 3-6 days

0

25

Honda 90101-ZW5-U00

SEE PART DETAILS - PRI; SCREW, PAN (5X16)

Note: (Optional).

$3.49

$

Usually ships in 3-6 days

0

26

Honda 90102-ZW5-U00

SEE PART DETAILS - PRI; SCREW, PAN (5X10)

Note: (Optional).

$3.49

$

Usually ships in 3-6 days

0

27

Honda 90103-ZW5-U01

SCREW, PAN (5X20)

Note: (Optional).

$4.49

$

Usually ships in 3-6 days

0

28

Honda 90104-ZW5-U00

SCREW, PAN (5X18)

Note: (Optional).

$1.99

$

Usually ships in 3-6 days

0

29

Honda 90105-ZW5-U01

SEE PART DETAILS - PRI; SCREW, PAN (4X10)

Note: (Optional).

$3.49

$

Usually ships in 3-6 days

0

30

Honda 90106-ZW5-U00

SCREW, PAN (6X18)

Note: (Optional).

$3.49

$

Usually ships in 3-6 days

0

31

Honda 90107-ZW5-U00

SCREW, PAN (5X40)

Note: (Optional).

$1.49

$

Usually ships in 3-6 days

0

32

Honda 90108-ZW5-U00

SCREW, PAN (5X55)

Note: (Optional).

$1.99

$

Usually ships in 3-6 days

0

33

Honda 90301-ZW5-U00

NUT, HEX. (5MM)

Note: (Optional).

$1.99

$

Usually ships in 3-6 days

0

34

Honda 90302-ZW5-U21

NUT, HEX. (5MM)

Note: (Optional).

$1.99

$

Usually ships in 3-6 days

0

35

Honda 90501-ZW5-U00

SEE PART DETAILS - PRI; WASHER, LOCK (5MM)

Note: (Optional).

$1.49

$

Usually ships in 3-6 days

0

36

Honda 90502-ZV4-000

WASHER, PLAIN (5MM)

Note: (Optional).

$3.99

$

In Stock, only 2 left!

0

37

Honda 90502-ZW5-U00

WASHER, LOCK (6MM)

Note: (Optional).

$2.49

$

Usually ships in 3-6 days

0

38

Honda 90503-ZW5-U00

WASHER, PLAIN (5MM)

Note: (Optional).

$0.99

$

Usually ships in 3-6 days

0

39

Honda 93500-05065-4J

SCREW, PAN (5X65)

Note: (Optional).

$3.49

$

Usually ships in 3-6 days

0

40

Honda 94001-05490-0S

NUT, HEX. (5MM)

Note: (Optional).

$1.49

$

Usually ships in 3-6 days

0

41

Honda 94540-06029

E-RING (6MM)

Note: (Optional).

$3.99

$

Usually ships in 3-6 days

0
