BF75 DK0 LHTA (BBAJ) - Honda Marine Engine, Made in Japan (SN: BBAJ-1000001 - BBAJ-9999999) REMOTE CONTROL (PANEL MOUNT) Parts Diagram

Marine Engine, Made in Japan

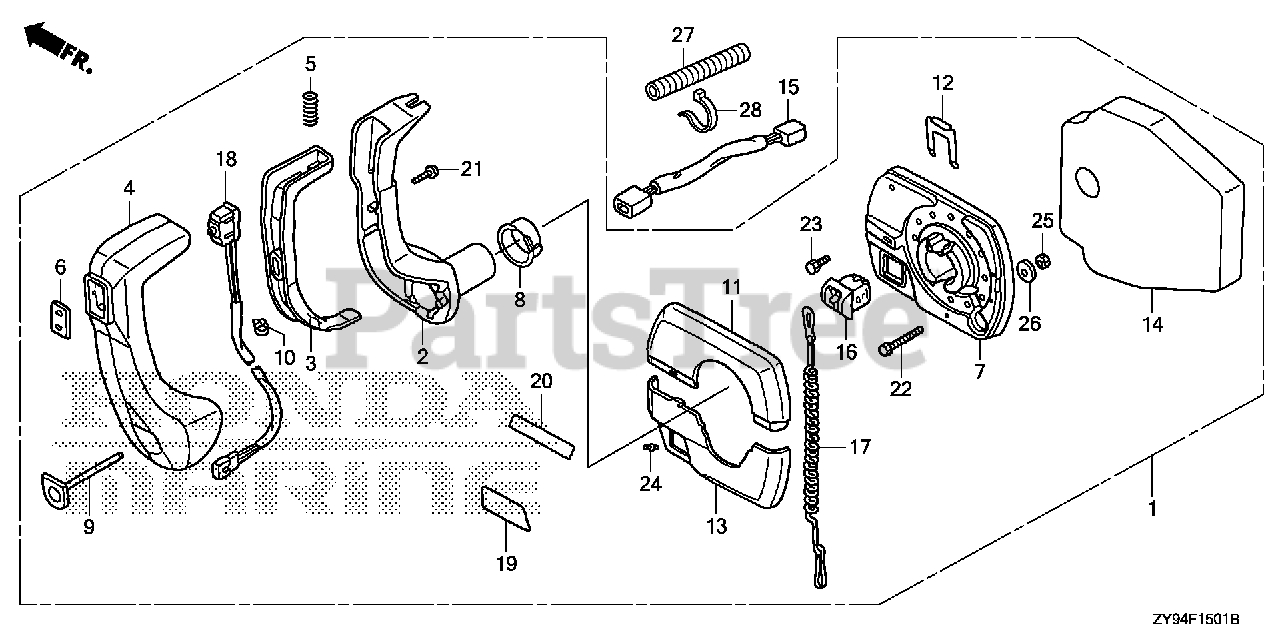

REMOTE CONTROL (PANEL MOUNT) Parts Diagram

  • Title

1

Honda 24800-ZW1-V21

BOX ASSY., REMOTE CONTROL (PANEL MOUNT) (NA USE ALT:06240-ZW7-U00)

Note: (Optional).

$

$

Currently unavailable

2

Honda 24811-ZW1-V21

HANDLE, REMOTE CONTROL

Note: (Optional).

$112.99

$

Usually ships in 3-6 days

0

3

Honda 24812-ZW1-V21

LEVER, HANDLE LOCK

Note: (Optional).

$7.49

$

Usually ships in 3-6 days

0

4

Honda 24813-ZW1-V21

GRIP, REMOTE CONTROL HANDLE

Note: (Optional).

$27.99

$

Usually ships in 3-6 days

0

5

Honda 24816-ZW1-V21

SPRING, REMOTE CONTROL HANDLE

Note: (Optional).

$2.49

$

Usually ships in 3-6 days

0

6

Honda 24819-ZW1-V21

COVER, GRIP

Note: (Optional).

$4.49

$

Usually ships in 3-6 days

0

7

Honda 24820-ZW1-V21

HOUSING ASSY., REMOTE CONTROL BOX (A)

Note: (Optional).

$21.99

$

Usually ships in 3-6 days

0

8

Honda 24821-ZW1-003

BUSHING Use up to Frame SN 4000953.

Note: (Optional).

$3.49

$

Usually ships in 3-6 days

0

9

Honda 24822-ZW1-V21

BUTTON, THROTTLE

Note: (Optional).

$19.99

$

Usually ships in 3-6 days

0

10

Honda 24829-ZW1-003

BAND B, CABLE Use up to Frame SN 4000953.

Note: (Optional).

$0.99

$

Usually ships in 3-6 days

0

11

Honda 24830-ZW1-V21

HOUSING ASSY., REMOTE CONTROL BOX (B)

Note: (Optional).

$10.99

$

Usually ships in 3-6 days

0

12

Honda 24834-ZW1-003

RETAINER

Note: (Optional).

$3.99

$

Usually ships in 3-6 days

0

13

Honda 24836-ZW1-V21

HOUSING, REMOTE CONTROL BOX (C)

Note: (Optional).

$16.99

$

Usually ships in 3-6 days

0

14

Honda 24870-ZW1-V21

HOUSING ASSY. (INNER) (PANEL MOUNT)

Note: (Optional).

$226.99

$

Usually ships in 3-6 days

0

15

Honda 32167-ZW5-650

HARNESS ASSY., POWER TRIM-TILT Use from Frame SN 4000954.

Note: (Optional).

$30.99

$

Usually ships in 3-6 days

0

16

Honda 35180-ZW1-003

SWITCH ASSY., EMERGENCY STOP

Note: (Optional).

$

$

Not available

17

Honda 35182-ZW1-003

WIRE, EMERGENCY

Note: (Optional).

$24.99

$

Usually ships in 3-6 days

0

18

Honda 35370-ZW1-V01

SWITCH ASSY., POWER TRIM-TILT (A) Use up to Frame SN 4000953.

Note: (Optional).

$135.99

$

Usually ships in 3-6 days

0

19

Honda 87705-ZW1-003

MARK, REMOTE CONTROL (A)(PANEL)

Note: (Optional).

$6.49

$

Usually ships in 3-6 days

0

20

Honda 87706-ZW1-003

MARK, REMOTE CONTROL (B)(FOR STARBOARD)

Note: (Optional).

$8.99

$

Usually ships in 3-6 days

0

20

Honda 87707-ZW1-003

MARK, REMOTE CONTROL (C)(FOR PORT)

Note: (Optional).

$10.99

$

Usually ships in 3-6 days

0

21

Honda 90136-ZW1-003

SCREW A (NOT AVAILABLE)

Note: (Optional).

$

$

Currently unavailable

22

Honda 90137-ZW1-003

SCREW B

Note: (Optional).

$1.99

$

Usually ships in 3-6 days

0

23

Honda 90138-ZW1-003

SCREW C

Note: (Optional).

$

$

Not available

24

Honda 90131-ZW1-003

SCREW SET (1/4-20X16") Use up to Frame SN 4000953.

Note: (Optional).

$1.49

$

Usually ships in 3-6 days

0

25

Honda 90314-ZW1-003

NUT (1/4X20)

Note: (Optional).

$

$

Not available

26

Honda 90551-ZW1-003

WASHER

Note: (Optional).

$1.99

$

Usually ships in 3-6 days

0
