BF75 DK0 LHTA (BBAJ) - Honda Marine Engine, Made in Japan (SN: BBAJ-1000001 - BBAJ-9999999) MAIN WIRE HARNESS Parts Diagram

Marine Engine, Made in Japan

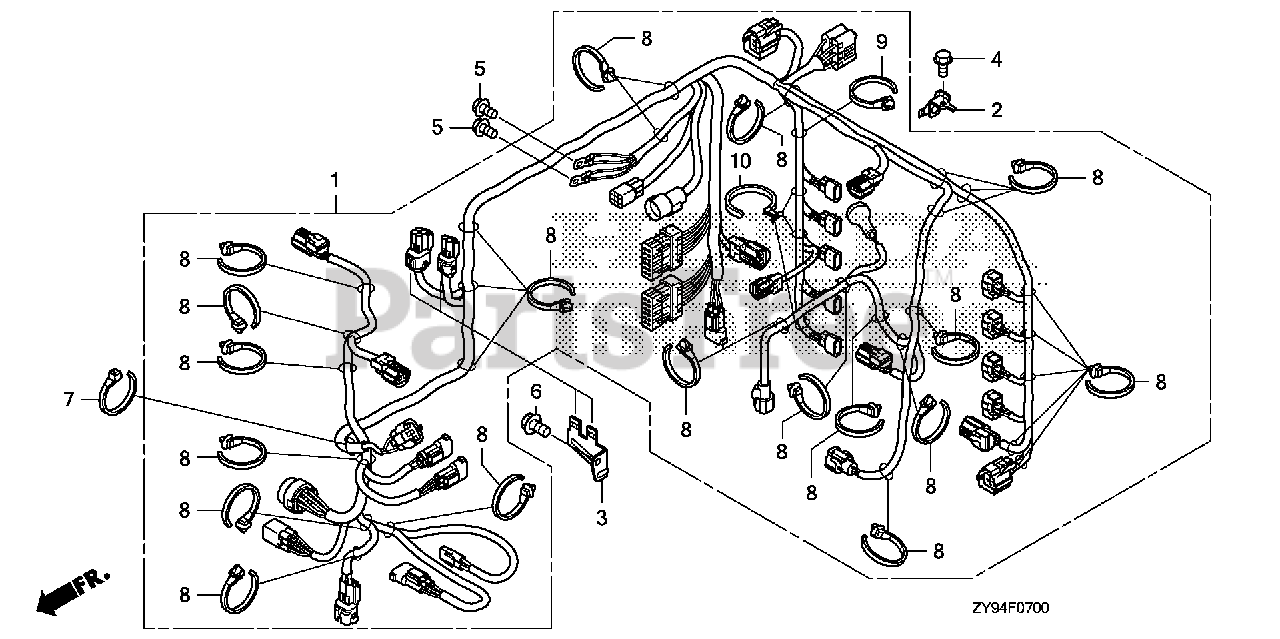

MAIN WIRE HARNESS Parts Diagram

  • Title

1

Honda 32100-ZY9-A00

WIRE HARNESS ASSY., MAIN

Note: Use from Frame SN 1005214.

$942.99

$

Usually ships in 3-6 days

0

1

Honda 32100-ZY9-000

WIRE HARNESS ASSY., MAIN

Note: Use up to Frame SN 1005213.

$1060.99

$

Usually ships in 3-6 days

0

2

Honda 32101-ZY9-000

BRACKET A, CONNECTOR

$17.99

$

Usually ships in 3-6 days

0

3

Honda 32103-ZY9-000

BRACKET C, CONNECTOR

$7.99

$

Usually ships in 3-6 days

0

4

Honda 90011-ZW9-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X14) (CT200)

$2.49

$

Usually ships in 3-6 days

0

5

Honda 90013-ZW9-000

BOLT, FLANGE (6X12)

$2.49

$

Usually ships in 3-6 days

0

6

Honda 90014-ZW9-000

BOLT, FLANGE (6X10)
(Superseded to 90103-ZZ0-M01)

$1.99

$

Usually ships in 3-6 days

0

7

Honda 90652-ZY9-003

BAND, WIRE HARNESS

$4.49

$

Usually ships in 3-6 days

0

8

Honda 91541-S0A-003

CLIP, HARNESS BAND (145MM) (BLACK)

$5.49

$

In Stock, only 1 left!

0

9

Honda 91551-SW5-003

CLIP, HARNESS BAND (151MM) (BROWN)

$8.99

$

Usually ships in 3-6 days

0

10

Honda 91558-SJ6-003

STRAP, HARNESS (30) (107.5MM) (BLACK)

$4.99

$

Usually ships in 3-6 days

0
