BF75 DK0 LHTA (BBAJ) - Honda Marine Engine, Made in Japan (SN: BBAJ-1000001 - BBAJ-9999999) GEAR CASE Parts Diagram

Marine Engine, Made in Japan

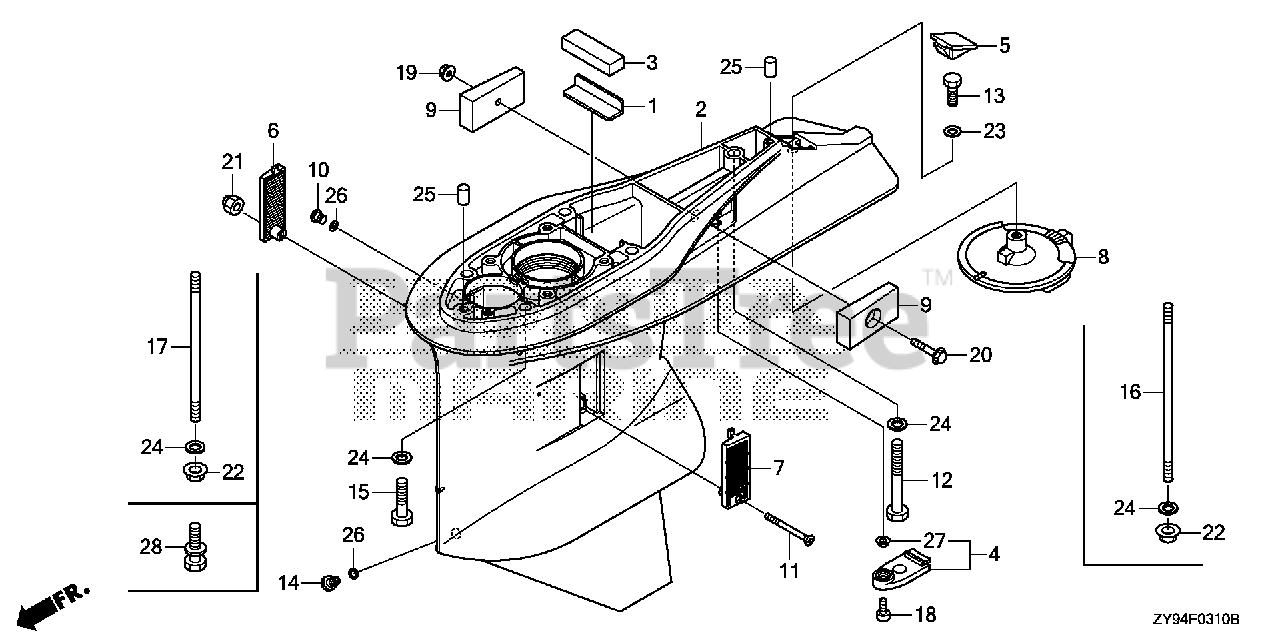

GEAR CASE Parts Diagram

  • Title
1

Honda 19286-ZW1-B00

PLATE, RUBBER SETTING

$8.99

$

Usually ships in 3-6 days

0

2

Honda 41101-ZY9-H00ZC

CASE, GEAR *NH282MU* (OYSTER SILVER METALLIC-U)

$1233.99

$

Usually ships in 3-6 days

0

3

Honda 41102-ZW1-B00

GROMMET, GEAR CASE

$8.99

$

Usually ships in 3-6 days

0

4

Honda 41102-ZZ0-000

COVER B, GEAR CASE

$12.99

$

Usually ships in 3-6 days

0

5

Honda 41103-ZZ0-000

GROMMET, GEAR CASE

$13.99

$

Usually ships in 3-6 days

0

6

Honda 41104-ZZ0-000

SCREEN, R. WATER

$9.99

$

Usually ships in 3-6 days

0

7

Honda 41105-ZZ0-000

SCREEN, L. WATER

$9.99

$

Usually ships in 3-6 days

0

8

Honda 41107-ZZ0-000ZA

TAB, TRIM *NH282MU* (OYSTER SILVER METALLIC-U)

$59.99

$

Usually ships in 3-6 days

0

9

Honda 41109-ZW1-B00

METAL, ANODE

$24.99

$

Usually ships in 3-6 days

0

10

Honda 90101-ZW9-003

BOLT, OIL CHECK

$3.99

$

Usually ships in 3-6 days

0

11

Honda 90101-ZZ0-000

SCREW, FLAT (5X55)

$3.49

$

Usually ships in 3-6 days

0

12

Honda 90104-ZW1-900

BOLT, HEX. (10X80)

$17.99

$

Usually ships in 3-6 days

0

13

Honda 90115-ZV5-000

BOLT, HEX. (8X25)

$4.99

$

Usually ships in 3-6 days

0

14

Honda 90120-ZY3-000

BOLT, DRAIN PLUG

$19.99

$

Usually ships in 3-6 days

0

15

Honda 90123-ZV5-010

SEE PART DETAILS - PRI; BOLT, HEX. (10X40)

$8.49

$

Usually ships in 3-6 days

0

18

Honda 90133-ZY3-000

BOLT, SOCKET (6X16)

$3.99

$

Usually ships in 3-6 days

0

19

Honda 90205-ZY1-000

NUT, SELF-LOCK (6MM)

$6.49

$

Usually ships in 3-6 days

0

20

Honda 90225-HW1-670

BOLT, FLANGE (6X35)

$2.99

$

In Stock, only 1 left!

0

21

Honda 90302-ZV4-000

NUT, SELF-LOCK (5MM)

$6.99

$

Usually ships in 3-6 days

0

23

Honda 90507-ZV4-000

WASHER, PLAIN (8MM) Use up to Frame SN 4800712.

$2.99

$

Usually ships in 3-6 days

0

24

Honda 90563-ZV5-000

WASHER, PLAIN (10MM)

$3.49

$

Usually ships in 3-6 days

0

25

Honda 90756-ZV5-000

PIN, DOWEL (6X10)

$3.99

$

Usually ships in 3-6 days

0

26

Honda 91301-ZW4-003

O-RING (6.9X1.45)

$1.49

$

In Stock, only 2 left!

0

27

Honda 91556-ZY3-000

COLLAR, DISTANCE (6.5X9X3)

$3.49

$

Usually ships in 3-6 days

0
