BF75 DK0 LHTA (BBAJ) - Honda Marine Engine, Made in Japan (SN: BBAJ-1000001 - BBAJ-9999999) CONTROL PANEL (SINGLE) (2-LED) Parts Diagram

Marine Engine, Made in Japan

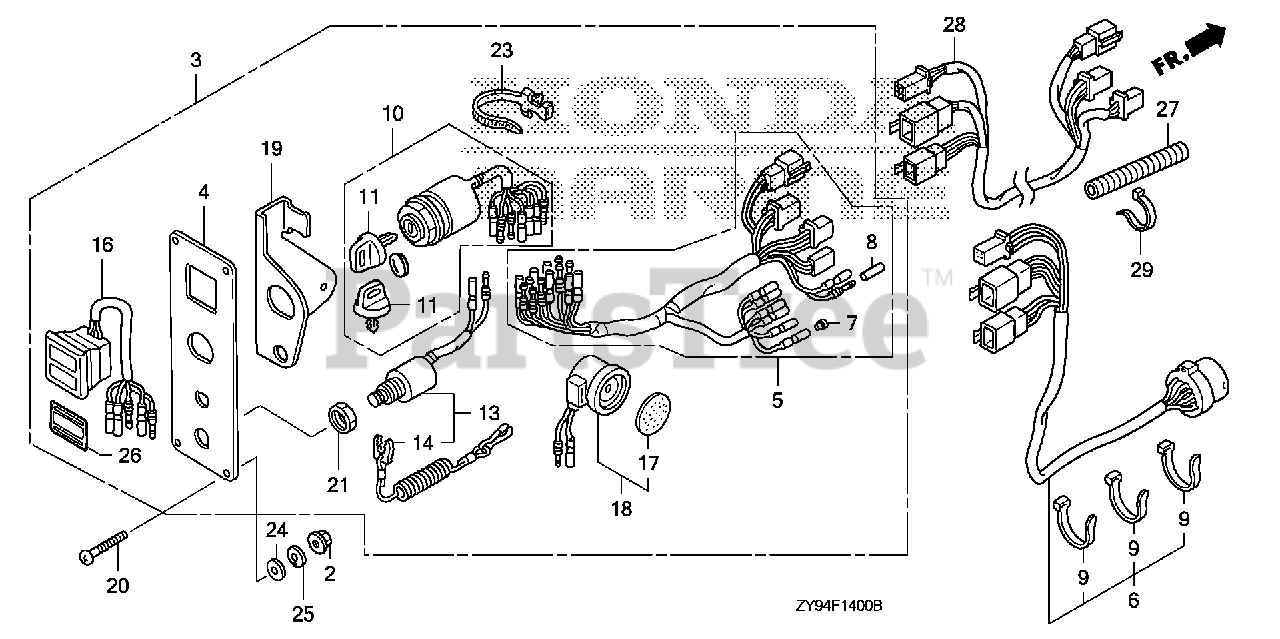

CONTROL PANEL (SINGLE) (2-LED) Parts Diagram

  • Title

2

Honda 18334-MT8-770

NUT, FLANGE (5MM) DUAL QTY = (8) (SINGLE)

Note: (Optional).

$2.49

$

Usually ships in 3-6 days

0

3

Honda 32340-ZW5-505

PANEL ASSY., CONTROL (2-LED)
(Superseded to 32340-ZW5-506)

Note: (Optional).

$289.99

$

Usually ships in 3-6 days

0

3

Honda 32340-ZW5-506

PANEL ASSY., CONTROL (2-LED)

Note: (Optional).

$289.99

$

Usually ships in 3-6 days

0

4

Honda 32346-ZW1-505

SEE PART DETAILS - PRI; PANEL, CONTROL

Note: (Optional).

$31.99

$

Usually ships in 3-6 days

0

5

Honda 32545-ZW1-V03

SEE PART DETAILS - PRI; HARNESS ASSY., SWITCH PANEL

Note: (Optional).

$137.99

$

Usually ships in 3-6 days

0

6

Honda 32580-ZW2-D01

SEE PART DETAILS - PRI; CABLE ASSY., SWITCH PANEL

Note: (Optional).

$258.99

$

Usually ships in 3-6 days

0

7

Honda 32823-ZV5-003

PLUG, CONNECTOR (INNER) (TROLLING CONTROL)

Note: (Optional).

$3.99

$

Usually ships in 3-6 days

0

8

Honda 32824-ZV5-003

PLUG, CONNECTOR (OUTER) (ENGINE NO.)

Note: (Optional).

$4.49

$

Usually ships in 3-6 days

0

9

Honda 32901-952-770

TIE, CABLE (NATURAL 2.4X92) Use up to Frame SN 1300359.

Note: (Optional).

$2.99

$

Usually ships in 3-6 days

0

10

Honda 35100-ZV5-003

SWITCH ASSY., COMBINATION DUAL QTY = (2) (SINGLE)

Note: (Optional).Use up to Frame SN 1004284.

$176.99

$

Usually ships in 3-6 days

0

10

Honda 35100-ZV5-013

SWITCH ASSY., COMBINATION (SINGLE) (DUAL)

Note: (Optional).Use from Frame SN 1004285.

$115.99

$

Usually ships in 3-6 days

0

11

Honda 35110-ZV5-003

KEY ASSY., COMBINATION SWITCH (35100-ZV5-003 ONLY) DUAL QTY = (4) (SINGLE)

Note: (Optional).Use up to Frame SN 1004284.

$10.99

$

Usually ships in 3-6 days

0

13

Honda 36180-ZV5-033

SEE PART DETAILS - PRI; SWITCH ASSY., EMERGENCY STOP

Note: (Optional).

$76.99

$

Usually ships in 3-6 days

0

14

Honda 36182-ZV4-651

SEE PART DETAILS - PRI; WIRE, EMERGENCY (SINGLE) (DUAL)

Note: (Optional).

$24.99

$

Usually ships in 3-6 days

0

16

Honda 37210-ZW1-702

LAMP ASSY., INDICATION (2-LED) DUAL QTY = (2) (SINGLE)

Note: (Optional).

$161.99

$

Usually ships in 3-6 days

0

17

Honda 38403-341-672

PLATE, TURN SIGNAL BUZZER DUAL QTY = (2) (SINGLE)

Note: (Optional).

$6.99

$

Usually ships in 3-6 days

0

18

Honda 38410-ZV5-003

BUZZER, WARNING DUAL QTY = (2) (SINGLE)

Note: (Optional).

$76.99

$

Usually ships in 3-6 days

0

19

Honda 38414-ZW1-V02

BRACKET, BUZZER DUAL QTY = (2) (SINGLE)

Note: (Optional).

$41.99

$

Usually ships in 3-6 days

0

20

Honda 90109-ZW5-000

SCREW, PAN (5X40) DUAL QTY = (8) (SINGLE)

Note: (Optional).

$1.99

$

Usually ships in 3-6 days

0

21

Honda 90302-921-000

NUT, HEX. (16MM) DUAL QTY = (2) (SINGLE)

Note: (Optional).

$5.99

$

In Stock, only 1 left!

0

23

Honda 90649-SC2-003

BAND, WIRE HARNESS (150MM) (NATURAL) DUAL QTY = (2) (SINGLE)

Note: (Optional).

$9.49

$

Usually ships in 3-6 days

0

24

Honda 94103-05400

WASHER, PLAIN (5MM) DUAL QTY = (8) (SINGLE)

Note: (Optional).

$1.49

$

Usually ships in 3-6 days

0

25

Honda 94111-05400

WASHER, SPRING (5MM) DUAL QTY = (8) (SINGLE)

Note: (Optional).

$1.49

$

Usually ships in 3-6 days

0

26

Honda 87120-ZW5-000

MARK, SWITCH PANEL DUAL QTY = (2) (SINGLE)
(Superseded to 87120-ZW5-010)

Note: (Optional).

$21.99

$

Usually ships in 3-6 days

0

27

Honda 17736-ZW1-000

TUBE, CORRUGATED (28MM)

Note: (Optional).

$5.49

$

Usually ships in 3-6 days

0

28

Honda 32570-ZY3-900

CABLE ASSY., REMOTE CONTROL EXTENSION Use from Frame SN 1300029.

Note: (Optional).

$213.99

$

Usually ships in 3-6 days

0

29

Honda 91058-MG9-681

BAND, SELF-LOCK Use from Frame SN 3000253.

Note: (Optional).

$2.99

$

Usually ships in 3-6 days

0
