BF75 AX XRTA (BBAL) - Honda Marine Engine, Made in Japan (SN: BBAL-4000001 - BBAL-9999999) CONTROL PANEL + LIGHTSWITCH KIT Parts Diagram

Marine Engine, Made in Japan

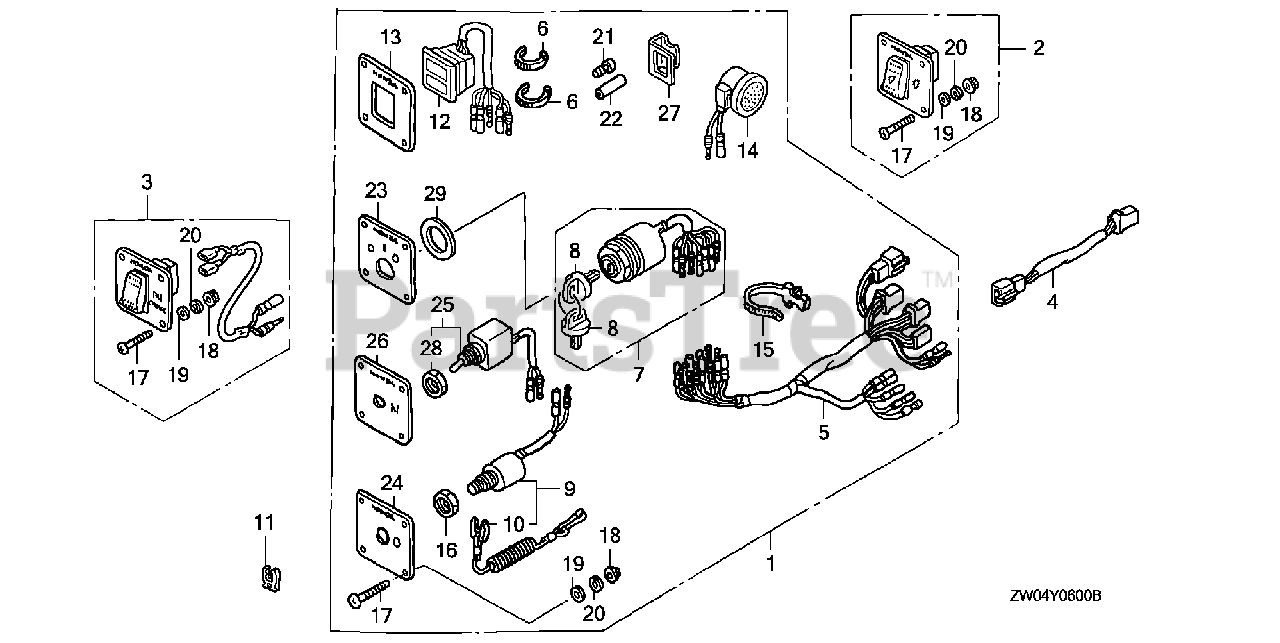

CONTROL PANEL + LIGHTSWITCH KIT Parts Diagram

  • Title

1

Honda 06323-ZW5-U02

SEE PART DETAILS - SUP; PANEL KIT, CONTROL (B)

$

$

Currently unavailable

2

Honda 06352-ZW5-U00

SWITCH KIT, LIGHT
(Superseded to 06352-ZW5-U01)

$90.99

$

Usually ships in 3-6 days

0

3

Honda 06356-ZW5-U00

SWITCH KIT, SOLENOID

$

$

Currently unavailable

4

Honda 32530-ZW5-U00

SUB-HARNESS ASSY., POWER
(Superseded to 32530-ZW7-U00)

$38.99

$

Usually ships in 3-6 days

0

5

Honda 32545-ZW1-V03

SEE PART DETAILS - PRI; HARNESS ASSY., SWITCH PANEL

$153.99

$

Usually ships in 3-6 days

0

6

Honda 32901-952-770

TIE, CABLE

$3.49

$

Usually ships in 3-6 days

0

7

Honda 35100-ZV5-003

SWITCH ASSY., COMBINATION

$201.99

$

Usually ships in 3-6 days

0

8

Honda 35110-ZV5-003

KEY ASSY., COMBINATION SWITCH

$11.99

$

Usually ships in 3-6 days

0

9

Honda 35180-ZV7-013

SEE PART DETAILS - SUP; SWITCH ASSY., EMERGENCY STOP

$

$

Currently unavailable

10

Honda 36182-ZV4-650

SEE PART DETAILS - SUP; WIRE, EMERGENCY
(Superseded to 36182-ZV4-651)

$27.99

$

Usually ships in 3-6 days

0

11

Honda 36187-ZV4-651

SEE PART DETAILS - SUP; CLIP, EMERGENCY LOCK
(Superseded to 36187-ZV4-652)

$6.49

$

Usually ships in 3-6 days

0

12

Honda 37210-ZW5-U01

LAMP ASSY., INDICATOR

$106.99

$

Usually ships in 3-6 days

0

13

Honda 37214-ZW5-U00

SEE PART DETAILS - SUP; PANEL, INDICATOR
(Superseded to 37214-ZW5-U02)

$15.99

$

Usually ships in 3-6 days

0

14

Honda 38410-ZW5-U01

BUZZER, WARNING

$79.99

$

Usually ships in 3-6 days

0

15

Honda 90302-921-000

NUT, HEX. (16MM)

$6.49

$

In Stock, only 1 left!

0

16

Honda 90649-SC2-003

BAND, WIRE HARNESS (WHITE)

$9.49

$

Usually ships in 3-6 days

0

17

Honda 93500-05040-1B

SCREW, PAN (5X40)

$1.99

$

Usually ships in 3-6 days

0

18

Honda 94050-05020

NUT, FLANGE (5MM)

$2.49

$

Usually ships in 3-6 days

0

19

Honda 94103-05200

WASHER, PLAIN (5MM)

$1.49

$

Usually ships in 3-6 days

0

20

Honda 94111-05400

WASHER, SPRING (5MM)

$1.49

$

Usually ships in 3-6 days

0

21

Honda 32823-ZV5-003

PLUG, CONNECTOR (INNER)

$4.49

$

Usually ships in 3-6 days

0

22

Honda 32824-ZV5-003

PLUG, CONNECTOR (OUTER)

$4.99

$

Usually ships in 3-6 days

0

23

Honda 35118-ZW5-U00

SEE PART DETAILS - SUP; PANEL, SWITCH

$

$

Currently unavailable

23

Honda 35118-ZW5-U01

SEE PART DETAILS - SUP; PANEL, SWITCH

$

$

Not available

24

Honda 35184-ZW5-U00

SEE PART DETAILS - SUP; PANEL, EMERGENCY STOP SWITCH

$

$

Currently unavailable

25

Honda 35630-ZW5-U11

SWITCH ASSY., SOLENOID

$80.99

$

Usually ships in 3-6 days

0

26

Honda 35634-ZW5-U11

SEE PART DETAILS - SUP; PANEL, SOLENOID

$

$

Currently unavailable

27

Honda 38414-ZW5-U00

BRACKET, BUZZER

$23.99

$

Usually ships in 3-6 days

0

28

Honda 90305-ZW1-V01

NUT, HEX. (12MM)

$5.99

$

Usually ships in 3-6 days

0

29

Honda 90513-ZW5-U00

WASHER, PLAIN

$4.99

$

Usually ships in 3-6 days

0
