BF75 A5 XRTA (BBAL) - Honda Marine Engine, Made in Japan (SN: BBAL-4700001 - BBAL-4799999) IGNITION COIL + C.D.I. UNIT Parts Diagram

Marine Engine, Made in Japan

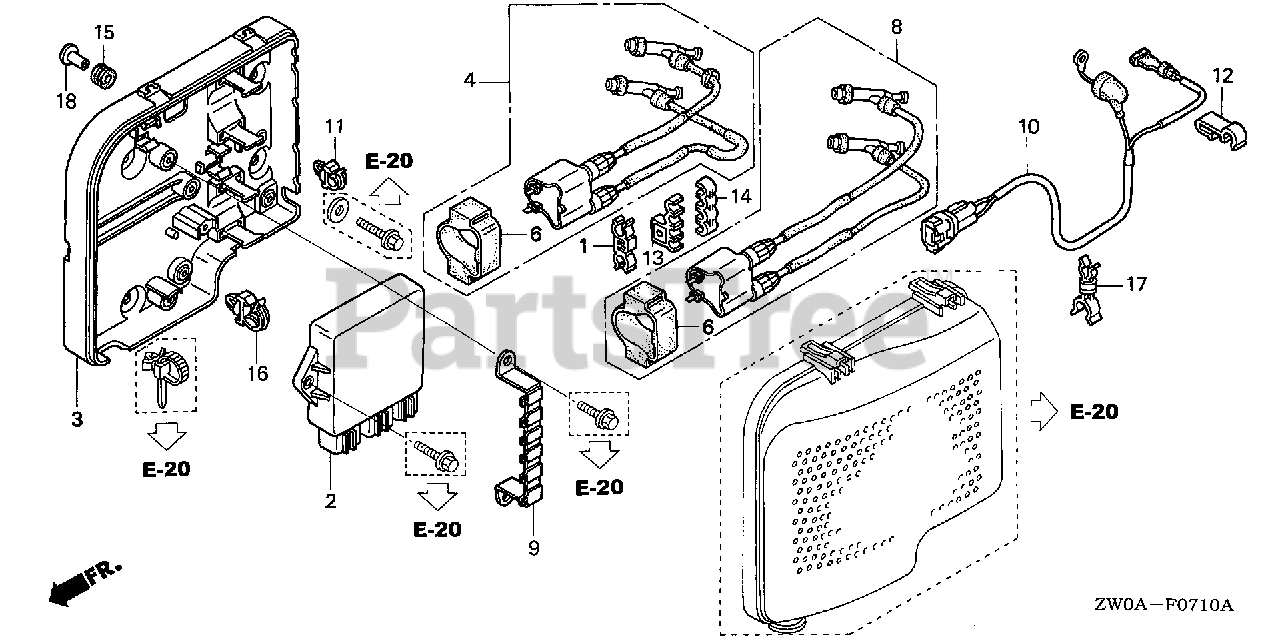

IGNITION COIL + C.D.I. UNIT Parts Diagram

  • Title

1

Honda 19787-PP8-003

CLAMP, R. INTERCOOLER

$

$

Not available

2

Honda 30400-ZW1-013

SEE PART DETAILS - PRI; MODULE, IGNITION CONTROL (CDI)

$

$

Not available

3

Honda 30416-ZW1-000

CASE, IGNITION CONTROL MODULE (CDI)

$102.99

$

Usually ships in 3-6 days

0

4

Honda 30500-ZW1-004

SEE PART DETAILS - SUP; COIL ASSY., IGNITION (1)
(Superseded to 30500-ZW1-505)

$151.99

$

Usually ships in 3-6 days

0

6

Honda 30506-ML4-003

SUSPENSION, IGNITION COIL

$7.99

$

In Stock, only 1 left!

0

8

Honda 30550-ZW1-004

SEE PART DETAILS - SUP; COIL ASSY., IGNITION (2)
(Superseded to 30550-ZW1-505)

$

$

Not available

9

Honda 32108-ZW1-010

SEE PART DETAILS - PRI; BRACKET, CONNECTOR

$

$

Not available

10

Honda 32193-ZW1-000

WIRE, SWITCH

$

$

Not available

11

Honda 32660-MJ6-710

CLAMP, WIRE

$4.99

$

In Stock, only 1 left!

0

12

Honda 32763-PA0-000

CLAMP, WIRE

$14.99

$

Usually ships in 3-6 days

0

13

Honda 32766-PM3-000

CLAMP B, IGNITION WIRE

$14.99

$

Usually ships in 3-6 days

0

14

Honda 32767-PT0-000

GROMMET, IGNITION WIRE

$

$

Not available

15

Honda 40102-ZV5-000

GROMMET, CASE (LOWER)

$3.99

$

Usually ships in 3-6 days

0

16

Honda 90682-ZV5-003

CLIP, WIRE HARNESS

$2.49

$

Usually ships in 3-6 days

0

17

Honda 91402-ZW1-003

CLIP, SWITCH CORD

$4.99

$

Usually ships in 3-6 days

0

18

Honda 91553-ZV5-010

SEE PART DETAILS - PRI; COLLAR, MODULE IGNITION CONTROL CASE (CDI)

$3.99

$

Usually ships in 3-6 days

0
