BF75 A5 LRTA (BBAL) - Honda Marine Engine, Made in Japan (SN: BBAL-4700001 - BBAL-4799999) REMOTE CONTROL (TOP MOUNT SINGLE TYPE) (LEFT) Parts Diagram

Marine Engine, Made in Japan

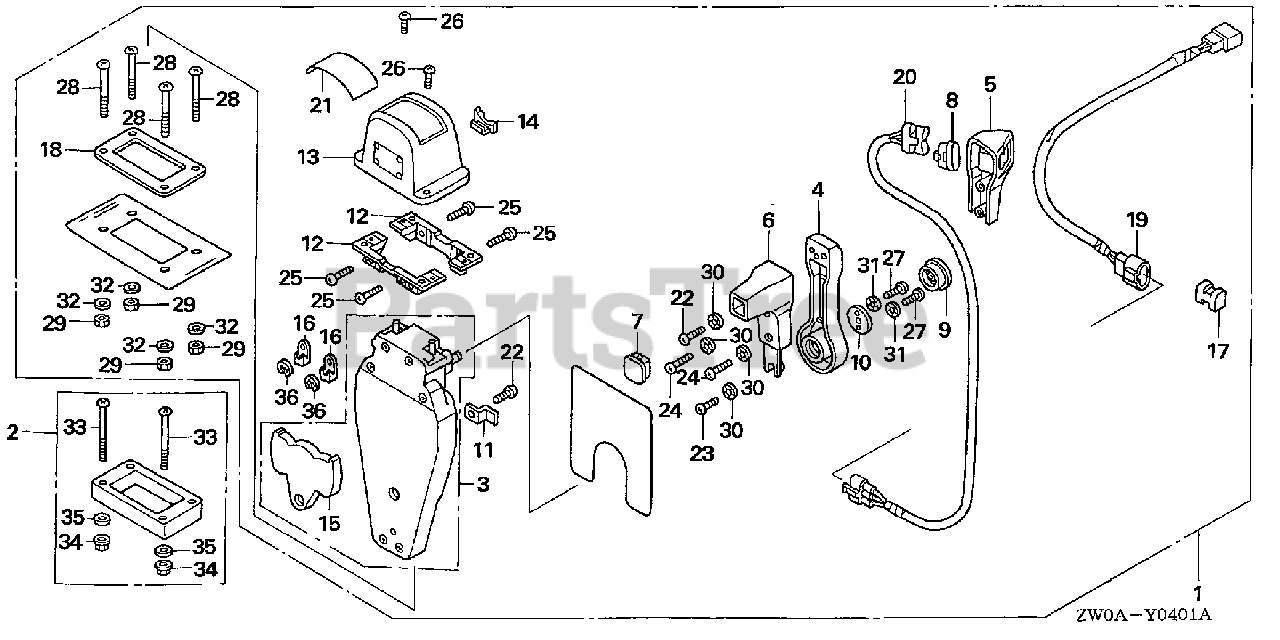

REMOTE CONTROL (TOP MOUNT SINGLE TYPE) (LEFT) Parts Diagram

  • Title

1

Honda 06240-ZW5-U50

SEE PART DETAILS - PRI; BOX KIT, REMOTE CONTROL

$

$

Not available

2

Honda 06241-ZW5-U00

SEE PART DETAILS - PRI; SPACER KIT, REMOTE CONTROL BOX

$49.99

$

Usually ships in 3-6 days

0

3

Honda 24810-ZW5-U11

HOUSING ASSY., R. (INNER)

$563.99

$

Usually ships in 3-6 days

0

4

Honda 24811-ZW5-U01

SEE PART DETAILS - PRI; HANDLE, REMOTE CONTROL

$125.99

$

Usually ships in 3-6 days

0

5

Honda 24812-ZW5-U11

SEE PART DETAILS - PRI; COVER, R. GRIP

$18.99

$

Usually ships in 3-6 days

0

6

Honda 24813-ZW5-U01

GRIP, REMOTE CONTROL HANDLE

$16.99

$

Usually ships in 3-6 days

0

7

Honda 24814-ZW5-U01

SEE PART DETAILS - PRI; CAP, GRIP

$4.99

$

Usually ships in 3-6 days

0

8

Honda 24815-ZW5-U01

SEE PART DETAILS - PRI; CAP, SWITCH

$7.49

$

Usually ships in 3-6 days

0

9

Honda 24816-ZW5-U01

SEE PART DETAILS - PRI; BUTTON, THROTTLE

$10.99

$

Usually ships in 3-6 days

0

10

Honda 24817-ZW5-U01

PLATE, HANDLE

$42.99

$

Usually ships in 3-6 days

0

11

Honda 24818-ZW5-U01

PLATE, CABLE CLAMP

$10.99

$

Usually ships in 3-6 days

0

12

Honda 24819-ZW5-U01

BRACKET, REMOTE CONTROL

$14.99

$

Usually ships in 3-6 days

0

13

Honda 24820-ZW5-U01

SEE PART DETAILS - PRI; HOUSING, REMOTE CONTROL BOX

$35.99

$

Usually ships in 3-6 days

0

14

Honda 24825-ZW5-U01

SEE PART DETAILS - PRI; HOUSING, LEAD

$3.99

$

Usually ships in 3-6 days

0

15

Honda 24826-ZW5-U01

PLATE, DWELL

$19.99

$

Usually ships in 3-6 days

0

16

Honda 24831-ZW5-U01

TERMINAL, CABLE

$11.99

$

In Stock, only 2 left!

0

17

Honda 24832-ZW5-U01

SPACER, CABLE CLAMP

$4.99

$

Usually ships in 3-6 days

0

18

Honda 24834-ZW5-U01

GASKET, SINGLE

$5.99

$

Usually ships in 3-6 days

0

19

Honda 32530-ZW7-U10

SUB-HARNESS ASSY., POWER

$35.99

$

Usually ships in 3-6 days

0

20

Honda 35370-ZW5-U12

SWITCH ASSY., POWER TRIM-TILT

$71.99

$

Usually ships in 3-6 days

0

21

Honda 87703-ZW5-U02

SEE PART DETAILS - PRI; MARK, REMOTE CONTROL (SINGLE)

$9.49

$

In Stock, only 1 left!

0

22

Honda 90101-ZW5-U00

SCREW, PAN (5X16)

$3.49

$

Usually ships in 3-6 days

0

23

Honda 90102-ZW5-U00

SCREW, PAN (5X10)

$3.49

$

Usually ships in 3-6 days

0

24

Honda 90103-ZW5-U01

SCREW, PAN (5X20)

$4.49

$

Usually ships in 3-6 days

0

25

Honda 90104-ZW5-U00

SCREW, PAN (5X18)

$1.99

$

Usually ships in 3-6 days

0

26

Honda 90105-ZW5-U01

SCREW, PAN (4X10)

$3.49

$

Usually ships in 3-6 days

0

27

Honda 90106-ZW5-U00

SCREW, PAN (6X18)

$3.49

$

Usually ships in 3-6 days

0

28

Honda 90107-ZW5-U00

SCREW, PAN (5X40)

$1.49

$

Usually ships in 3-6 days

0

29

Honda 90301-ZW5-U00

NUT, HEX. (5MM)

$1.99

$

Usually ships in 3-6 days

0

30

Honda 90501-ZW5-U00

SEE PART DETAILS - PRI; WASHER, LOCK (5MM)

$1.49

$

Usually ships in 3-6 days

0

31

Honda 90502-ZW5-U00

WASHER, LOCK (6MM)

$2.49

$

Usually ships in 3-6 days

0

32

Honda 90503-ZW5-U00

WASHER, PLAIN (5MM)

$0.99

$

Usually ships in 3-6 days

0

33

Honda 93500-05065-4J

SCREW, PAN (5X65)

$3.49

$

Usually ships in 3-6 days

0

34

Honda 94001-05490-0S

NUT, HEX. (5MM)

$1.49

$

Usually ships in 3-6 days

0

35

Honda 90502-ZV4-000

WASHER, PLAIN (5MM)

$3.99

$

In Stock, only 2 left!

0

36

Honda 94540-06029

E-RING (6MM)

$3.99

$

Usually ships in 3-6 days

0
