BF75 A2 LRTA (BBAL) - Honda Marine Engine, Made in Japan (SN: BBAL-4410001 - BBAL-4499999) CONTROL PANEL (2) Parts Diagram

Marine Engine, Made in Japan

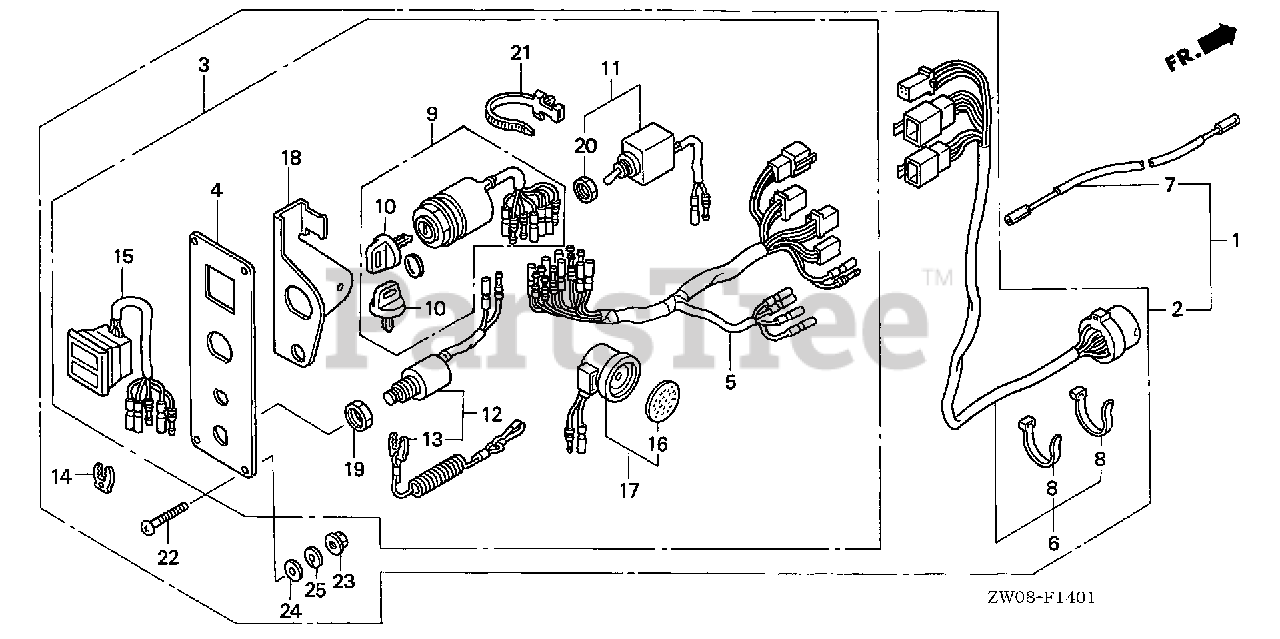

CONTROL PANEL (2) Parts Diagram

  • Title

1

Honda 06323-ZW1-V11

SEE PART DETAILS - SUP; PANEL KIT, SWITCH (DUAL)

Note: (Optional).Use up to Frame SN 4410910.

$

$

Currently unavailable

2

Honda 06323-ZW1-V13

SEE PART DETAILS - PRI; PANEL KIT, SWITCH (DUAL)

Note: (Optional).Use from Frame SN 4410911.

$

$

Not available

3

Honda 32340-ZW1-V02

SEE PART DETAILS - SUP; PANEL ASSY., CONTROL
(Superseded to 32340-ZW1-506)

Note: (Optional).Use up to Frame SN 4410910.

$

$

Not available

3

Honda 32340-ZW1-506

PANEL ASSY., CONTROL

Note: (Optional).

$

$

Not available

4

Honda 32346-ZW1-V02

PANEL, CONTROL FOR DUAL: QTY = (2)
(Superseded to 32346-ZW1-505)

Note: (Optional).

$31.99

$

Usually ships in 3-6 days

0

4

Honda 32346-ZW1-505

SEE PART DETAILS - PRI; PANEL, CONTROL

Note: (Optional).

$31.99

$

Usually ships in 3-6 days

0

5

Honda 32545-ZW1-V03

SEE PART DETAILS - PRI; HARNESS ASSY., SWITCH PANEL

Note: (Optional).

$137.99

$

Usually ships in 3-6 days

0

6

Honda 32580-ZW1-V01

SEE PART DETAILS - PRI; CABLE ASSY., SWITCH PANEL Use up to Frame SN 1300359.

Note: (Optional).Use up to Frame SN 4410917.

$

$

Not available

6

Honda 32580-ZW2-D01

SEE PART DETAILS - PRI; CABLE ASSY., SWITCH PANEL

Note: (Optional).Use from Frame SN 4410918.

$258.99

$

Usually ships in 3-6 days

0

6

Honda 32580-ZY3-000

CABLE ASSY., SWITCH PANEL Use from Frame SN 1300360.
(Superseded to 32580-ZW2-D01)

Note: (Optional).Use from Frame SN 4410918.

$258.99

$

Usually ships in 3-6 days

0

7

Honda 32600-ZW1-900

WIRE ASSY., GROUND (BONDING) Use up to Frame SN 1300354.

Note: (Optional).Use up to Frame SN 4410910.

$40.99

$

Usually ships in 3-6 days

0

8

Honda 32901-952-770

TIE, CABLE (NATURAL 2.4X92) Use up to Frame SN 1300359.

Note: (Optional).Use up to Frame SN 4410942.

$2.99

$

Usually ships in 3-6 days

0

8

Honda 32901-952-770

TIE, CABLE (NATURAL 2.4X92) Use up to Frame SN 1300359.

Note: (Optional).Use from Frame SN 4410943.

$2.99

$

Usually ships in 3-6 days

0

9

Honda 35100-ZV5-003

SWITCH ASSY., COMBINATION DUAL QTY = (2) (SINGLE)

Note: (Optional).

$176.99

$

Usually ships in 3-6 days

0

10

Honda 35110-ZV5-003

KEY ASSY., COMBINATION SWITCH (35100-ZV5-003 ONLY) DUAL QTY = (4) (SINGLE)

Note: (Optional).

$10.99

$

Usually ships in 3-6 days

0

11

Honda 35630-ZW1-V01

SWITCH ASSY., SOLENOID

Note: (Optional).

$61.99

$

Usually ships in 3-6 days

0

12

Honda 36180-ZV5-033

SEE PART DETAILS - PRI; SWITCH ASSY., EMERGENCY STOP

Note: (Optional).

$76.99

$

Usually ships in 3-6 days

0

13

Honda 36182-ZV4-651

SEE PART DETAILS - PRI; WIRE, EMERGENCY (SINGLE) (DUAL)

Note: (Optional).

$24.99

$

Usually ships in 3-6 days

0

14

Honda 36187-ZV4-651

SEE PART DETAILS - SUP; CLIP, EMERGENCY LOCK
(Superseded to 36187-ZV4-652)

Note: (Optional).

$5.99

$

Usually ships in 3-6 days

0

15

Honda 37210-ZW1-702

LAMP ASSY., INDICATION (2-LED) DUAL QTY = (2) (SINGLE)

Note: (Optional).

$161.99

$

Usually ships in 3-6 days

0

16

Honda 38403-341-672

PLATE, TURN SIGNAL BUZZER DUAL QTY = (2) (SINGLE)

Note: (Optional).

$6.99

$

Usually ships in 3-6 days

0

17

Honda 38410-ZV5-003

BUZZER, WARNING DUAL QTY = (2) (SINGLE)

Note: (Optional).

$76.99

$

Usually ships in 3-6 days

0

18

Honda 38414-ZW1-V02

BRACKET, BUZZER DUAL QTY = (2) (SINGLE)

Note: (Optional).

$41.99

$

Usually ships in 3-6 days

0

19

Honda 90302-921-000

NUT, HEX. (16MM) DUAL QTY = (2) (SINGLE)

Note: (Optional).

$5.99

$

In Stock, only 1 left!

0

20

Honda 90305-ZW1-V01

NUT, HEX. (12MM)

Note: (Optional).

$5.99

$

Usually ships in 3-6 days

0

21

Honda 90649-SC2-003

BAND, WIRE HARNESS (150MM) (NATURAL) DUAL QTY = (2) (SINGLE)

Note: (Optional).

$9.49

$

Usually ships in 3-6 days

0

22

Honda 93500-05040-1B

SCREW, PAN (5X40)

Note: (Optional).

$1.99

$

Usually ships in 3-6 days

0

23

Honda 94050-05020

NUT, FLANGE (5MM)

Note: (Optional).

$2.49

$

Usually ships in 3-6 days

0

24

Honda 94103-05200

WASHER, PLAIN (5MM)

Note: (Optional).

$0.99

$

Usually ships in 3-6 days

0

25

Honda 94111-05400

WASHER, SPRING (5MM) DUAL QTY = (8) (SINGLE)

Note: (Optional).

$1.49

$

Usually ships in 3-6 days

0
