BF75 A1 XRTA (BBAL) - Honda Marine Engine, Made in Japan (SN: BBAL-4400001 - BBAL-4409999) SHIFT SHAFT Parts Diagram

Marine Engine, Made in Japan

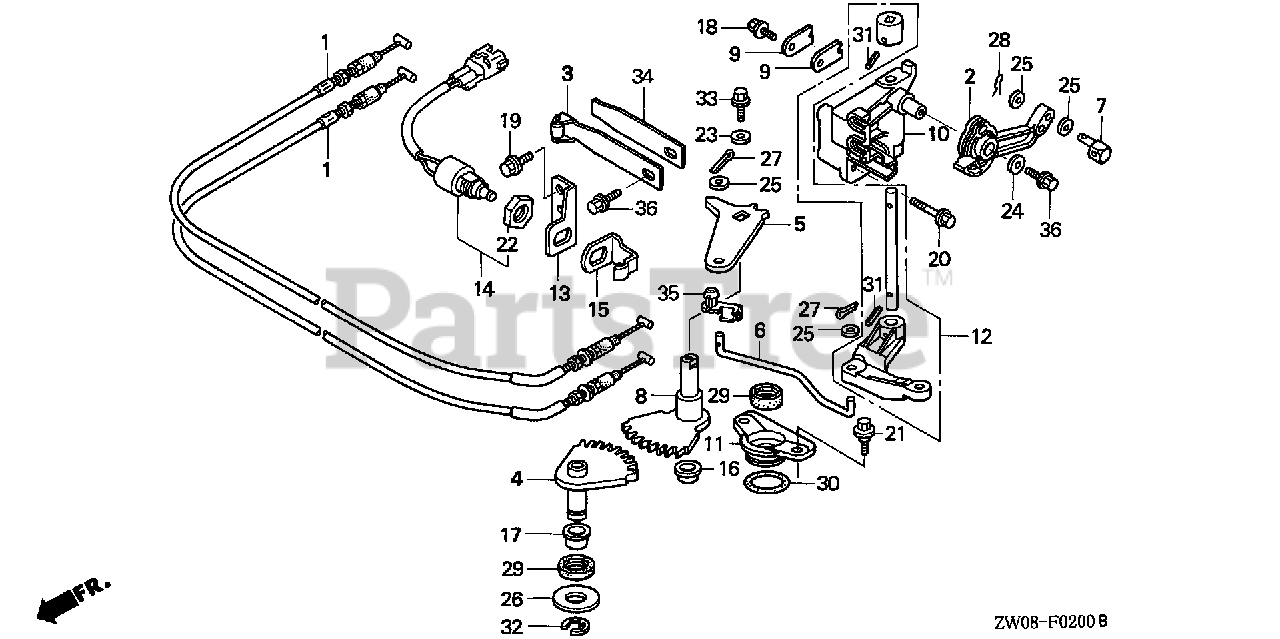

SHIFT SHAFT Parts Diagram

  • Title

1

Honda 17910-ZW1-003

CABLE, THROTTLE

$

$

Not available

2

Honda 17931-ZW1-000

ARM, THROTTLE

$31.99

$

Usually ships in 3-6 days

0

3

Honda 24210-ZW1-000

SEE PART DETAILS - SUP; SPRING, CLICK
(Superseded to 24210-ZW1-010)

$14.99

$

Usually ships in 3-6 days

0

3

Honda 24210-ZW1-010

SEE PART DETAILS - PRI; SPRING, CLICK

$14.99

$

Usually ships in 3-6 days

0

4

Honda 24610-ZW1-B01

SEE PART DETAILS - PRI; SHAFT, SHIFT (A)

$

$

Not available

5

Honda 24612-ZW1-000

SEE PART DETAILS - SUP; ARM, SHIFT
(Superseded to 24612-ZW1-010)

Note: Use up to Frame SN 4401244.

$27.99

$

Usually ships in 3-6 days

0

5

Honda 24612-ZW1-010

SEE PART DETAILS - PRI; ARM, SHIFT

Note: Use from Frame SN 4401245.

$27.99

$

Usually ships in 3-6 days

0

6

Honda 24613-ZW1-000

SEE PART DETAILS - SUP; ROD, LINK
(Superseded to 24613-ZW1-010)

Note: Use up to Frame SN 4401244.

$

$

Not available

6

Honda 24613-ZW1-010

SEE PART DETAILS - PRI; ROD, LINK

$

$

Not available

7

Honda 24618-ZV5-000

PIVOT, SHIFT

$19.99

$

Usually ships in 3-6 days

0

8

Honda 24620-ZW1-B00

SHAFT, SHIFT (B)

$

$

Not available

9

Honda 24626-ZV5-000

SEE PART DETAILS - SUP; PLATE, SHIFT SHAFT
(Superseded to 24626-ZV5-010)

$3.49

$

Usually ships in 3-6 days

0

9

Honda 24626-ZV5-010

SEE PART DETAILS - PRI; PLATE, SHIFT SHAFT

$3.49

$

Usually ships in 3-6 days

0

10

Honda 24628-ZW1-000

SEE PART DETAILS - PRI; BRACKET, SHIFT LINK

$92.99

$

Usually ships in 3-6 days

0

11

Honda 24629-ZW1-000

HOLDER, SEAL

$30.99

$

Usually ships in 3-6 days

0

12

Honda 24630-ZW1-000

LINK, SHIFT

$

$

Not available

13

Honda 35476-ZW1-010

BRACKET, NEUTRAL SWITCH

$15.99

$

Usually ships in 3-6 days

0

14

Honda 04302-ZW1-010

SET,NEUT SW

$48.99

$

Usually ships in 3-6 days

0

15

Honda 35618-ZV5-000

SEE PART DETAILS - SUP; PLATE, NEUTRAL SWITCH
(Superseded to 35618-ZW9-010)

$5.99

$

In Stock, only 1 left!

0

15

Honda 35618-ZW9-010

SEE PART DETAILS - PRI; PLATE, NEUTRAL SWITCH

$5.99

$

In Stock, only 1 left!

0

16

Honda 45125-GM9-003

BUSH, TORQUE LINK

$

$

Not available

17

Honda 57264-759-003

BUSH (14X10)

$7.99

$

Usually ships in 3-6 days

0

18

Honda 90013-ZV0-010

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200)

$2.99

$

In Stock, only 3 left!

0

19

Honda 90011-ZW9-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X14) (CT200)

$2.49

$

In Stock, only 1 left!

0

20

Honda 90014-ZV7-000

SEE PART DETAILS - SUP; BOLT, FLANGE (6X35)
(Superseded to 90014-ZV7-010)

$

$

Not available

20

Honda 90014-ZV7-010

SEE PART DETAILS - PRI; BOLT, FLANGE (6X35)
(Superseded to 90014-ZV7-040)

$2.49

$

Usually ships in 3-6 days

0

21

Honda 90108-HE0-000

BOLT, FLANGE (6MM)

$

$

Not available

22

Honda 90302-ZV5-003

NUT, HEX. (20MM) Use up to Frame SN 1300359.

$7.49

$

Usually ships in 3-6 days

0

23

Honda 90406-KV3-780

WASHER (6MM)

$3.49

$

Usually ships in 3-6 days

0

24

Honda 90403-ZW1-000

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$2.49

$

Usually ships in 3-6 days

0

25

Honda 90504-921-010

WASHER, PLAIN (6MM) Use from Frame SN 4800713.

$1.99

$

In Stock, only 1 left!

0

26

Honda 90508-ZV7-000

WASHER

$9.49

$

Usually ships in 3-6 days

0

27

Honda 90759-ZV1-000

SEE PART DETAILS - PRI; PIN, SPLIT (2.0)

$2.49

$

Usually ships in 3-6 days

0

28

Honda 90765-ZW1-000

PIN, SPECIAL LOCK (6MM)

$2.99

$

Usually ships in 3-6 days

0

29

Honda 91255-ZV4-651

SEAL, WATER (14X26X6)

$8.99

$

Usually ships in 3-6 days

0

30

Honda 91305-KF0-003

O-RING (27X2) (ARAI)

$3.99

$

Usually ships in 3-6 days

0

31

Honda 94305-30183

PIN, SPRING (3X18)

$2.49

$

Usually ships in 3-6 days

0

32

Honda 94540-12029

E-RING (12MM)

$11.99

$

Usually ships in 3-6 days

0

33

Honda 95701-06012-02

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.99

$

Usually ships in 3-6 days

0

34

Honda 24221-ZW1-000

SEE PART DETAILS - SUP; SPRING, CLICK ASSIST
(Superseded to 24221-ZW1-010)

Note: Use from Frame SN 4401245.

$

$

Not available

34

Honda 24221-ZW1-010

SEE PART DETAILS - PRI; SPRING, CLICK ASSIST

Note: Use from Frame SN 4401245.

$

$

Not available

35

Honda 24621-ZW5-000

BUSH, SHAFT

Note: Use from Frame SN 4401245.

$17.99

$

Usually ships in 3-6 days

0

36

Honda 90011-ZW9-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X14) (CT200)

$2.49

$

In Stock, only 1 left!

0
