BF75 A LA (BF75) - Honda Marine Engine, Made in Japan (SN: BF75-1200425 - BF75-1205254) EXTENSION CASE + GEAR CASE + SHIFT ROD Parts Diagram

Marine Engine, Made in Japan

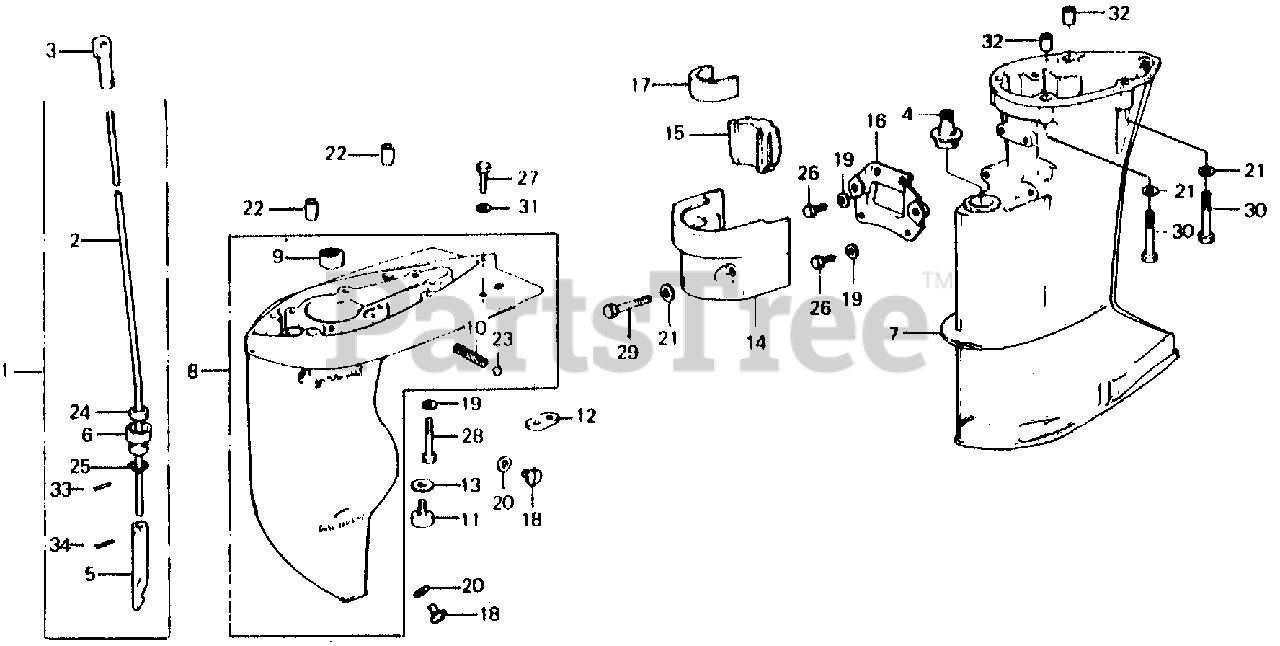

EXTENSION CASE + GEAR CASE + SHIFT ROD Parts Diagram

  • Title

1

Honda 24310-881-701

ROD, GEARSHIFT (L)

$

$

Not available

2

Honda 24311-881-700

ROD, GEARSHIFT (L)

$

$

Not available

3

Honda 24312-881-000

JOINT, GEARSHIFT ROD

$38.99

$

Usually ships in 3-6 days

0

4

Honda 24313-921-003

GROMMET, ROD (ARAI)

$

$

Not available

5

Honda 24341-ZV4-300

ROD, PUSH

$

$

Not available

6

Honda 24343-881-300

HOLDER, SEAL

$32.99

$

Usually ships in 3-6 days

0

7

Honda 40201-881-700ZA

CASE, EXTENSION *B9* (L) (ATLANTIS BLUE) (NOT AVAILABLE)

$

$

Currently unavailable

8

Honda 41100-881-000ZA

CASE, GEAR *B9* (ATLANTIS BLUE)

Note: Use up to Frame SN 1204707.

$

$

Currently unavailable

8

Honda 41100-881-010ZA

CASE, GEAR *B9* (ATLANTIS BLUE)

Note: Use from Frame SN 1204708.

$

$

Currently unavailable

9

Honda 41103-935-003

BEARING, NEEDLE (15X21X16)

$14.99

$

Usually ships in 3-6 days

0

10

Honda 41104-921-320

SCREEN, WATER

$11.99

$

Usually ships in 3-6 days

0

11

Honda 41106-881-000

METAL, ANODE (NOT AVAILABLE)

Note: Use up to Frame SN 1204707.

$

$

Not available

12

Honda 41106-935-811

METAL, ANODE
(Superseded to 41106-935-812)

Note: Use from Frame SN 1204708.

$13.99

$

Usually ships in 3-6 days

0

12

Honda 41106-935-812

METAL, ANODE

Note: Use from Frame SN 1204708.

$13.99

$

Usually ships in 3-6 days

0

13

Honda 41107-935-000

RUBBER, INSULATE (NOT AVAILABLE)

Note: Use up to Frame SN 1204707.

$

$

Currently unavailable

14

Honda 50121-881-000ZA

HOUSING, SETTING (LOWER) *B9* (ATLANTIS BLUE) (NOT AVAILABLE)

$

$

Currently unavailable

15

Honda 50151-881-000

RUBBER A, MOUNTING (LOWER)

$35.99

$

Usually ships in 3-6 days

0

16

Honda 50152-881-000

PLATE, MOUNTING (LOWER)

$

$

Not available

17

Honda 50153-881-000

RUBBER B, MOUNTING (LOWER)

$

$

Not available

18

Honda 90105-921-000

BOLT, OIL CHECK

$8.99

$

Usually ships in 3-6 days

0

19

Honda 90504-921-010

WASHER, PLAIN (6MM)

$1.99

$

In Stock, only 1 left!

0

20

Honda 90507-921-000

WASHER, NYLON (8MM)

$1.49

$

In Stock, Qty 6

0

21

Honda 90518-921-000

WASHER, PLAIN (8MM)

$1.99

$

In Stock, Qty 10

0

22

Honda 90702-881-000

PIN, DOWEL (8X10) (NOT AVAILABLE)

$

$

Not available

23

Honda 90855-921-300

PLUG, SEALING (10MM)

$3.99

$

In Stock, only 1 left!

0

24

Honda 91253-921-003

SEAL, WATER (6MM)

$16.99

$

Usually ships in 3-6 days

0

25

Honda 91303-377-000

O-RING (13.8X2.5)

$4.99

$

Usually ships in 3-6 days

0

26

Honda 92101-06012-4J

BOLT, HEX. (6X12)

$2.99

$

Usually ships in 3-6 days

0

27

Honda 92101-06016-0B

BOLT, HEX. (6X16)

Note: Use from Frame SN 1204707.

$1.99

$

Usually ships in 3-6 days

0

28

Honda 92000-06040-4J

BOLT, HEX. (6X40)

$

$

Currently unavailable

29

Honda 92101-08040-4J

BOLT, HEX. (8X40)

$5.49

$

In Stock, only 2 left!

0

30

Honda 92101-08050-4J

BOLT, HEX. (8X50)

$6.99

$

Usually ships in 3-6 days

0

31

Honda 94101-06200

WASHER, PLAIN (6MM)

Note: Use from Frame SN 1204708.

$0.99

$

Usually ships in 3-6 days

0

32

Honda 94301-10140

PIN A, DOWEL (10X14)

$3.49

$

Usually ships in 3-6 days

0

33

Honda 94305-25122

PIN, SPRING (2.5X12)

$2.49

$

Usually ships in 3-6 days

0

34

Honda 96220-25118

ROLLER (2.5X11.8)

$0.99

$

Usually ships in 3-6 days

0
