BF60 AK1 XRTA (BBFJ) - Honda Marine Engine, Made in Japan (SN: BBFJ-1100001 - BBFJ-9999999) ELECTRONIC PARTS CASE Parts Diagram

Marine Engine, Made in Japan

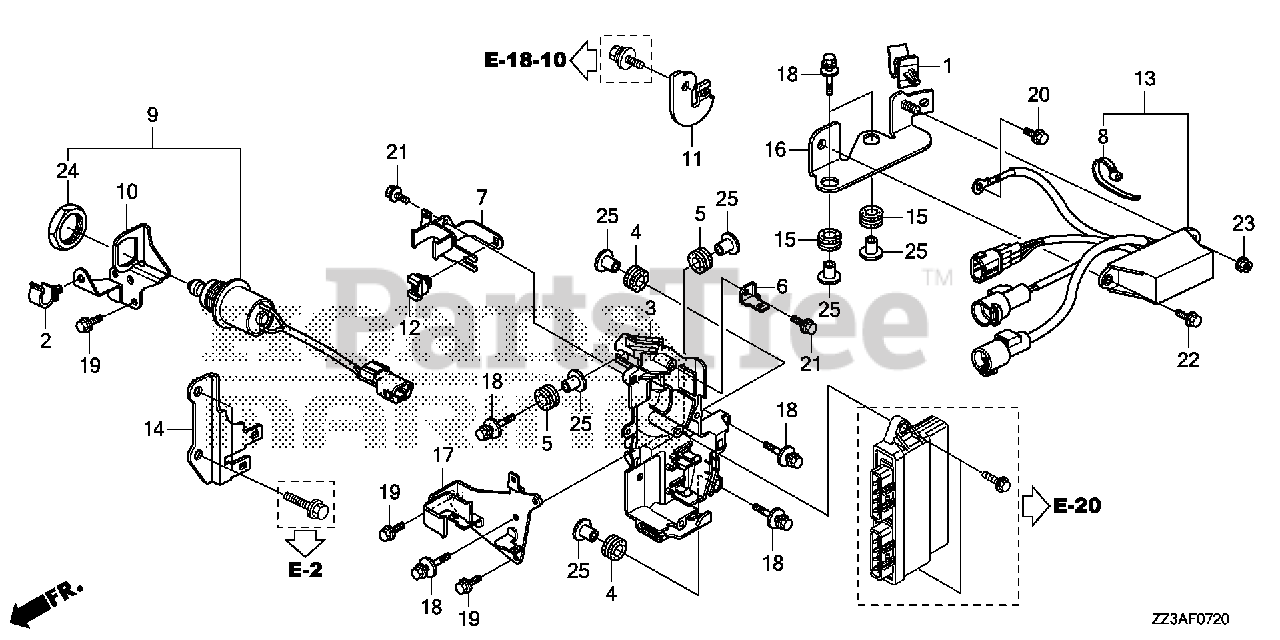

ELECTRONIC PARTS CASE Parts Diagram

  • Title

1

Honda 16446-Z0G-003

CLAMP, FUEL TUBE

$1.99

$

Usually ships in 3-6 days

0

2

Honda 16896-ZY9-003

CLAMP B, FUEL TUBE

$3.99

$

Usually ships in 3-6 days

0

3

Honda 30416-ZZ3-000

CASE, ELECTRONIC PARTS

$40.99

$

Usually ships in 3-6 days

0

4

Honda 30419-ZY9-003

GROMMET, ELECTRONIC PARTS CASE

$5.99

$

Usually ships in 3-6 days

0

5

Honda 30598-ZV5-000

GROMMET, MODULE IGNITION CONTROL CASE (CDI)(B)

$5.49

$

Usually ships in 3-6 days

0

6

Honda 32101-ZZ3-000

BRACKET, ALTERNATOR FUSE
(Superseded to 32101-ZZ3-010)

$7.49

$

Usually ships in 3-6 days

0

7

Honda 32102-ZZ3-000

BRACKET, FUSE

$17.99

$

Usually ships in 3-6 days

0

8

Honda 32901-952-770

TIE, CABLE (2.4X92) (NATURAL)

$3.49

$

Usually ships in 3-6 days

0

9

Honda 35470-ZZ3-023

SWITCH ASSY., NEUTRAL

$61.99

$

Usually ships in 3-6 days

0

10

Honda 35475-ZZ3-000

BRACKET, NEUTRAL SWITCH

$14.99

$

Usually ships in 3-6 days

0

11

Honda 35645-ZZ3-000

BRACKET, POWER TILT SWITCH CONNECTOR

$5.99

$

Usually ships in 3-6 days

0

12

Honda 38216-ZY3-003

CLIP, CONNECTOR HOLDER (B)

$3.49

$

Usually ships in 3-6 days

0

13

Honda 38550-ZZ3-003

RELAY ASSY., POWER TILT

$247.99

$

Usually ships in 3-6 days

0

14

Honda 38552-ZZ3-000

BRACKET A, POWER TILT CONNECTOR

$9.49

$

Usually ships in 3-6 days

0

15

Honda 38553-ZY9-003

GROMMET, RELAY BRACKET

$5.99

$

Usually ships in 3-6 days

0

16

Honda 38553-ZZ3-000

BRACKET, POWER TILT RELAY

$

$

Not available

17

Honda 38582-ZZ3-000

BRACKET, MAIN RELAY

$32.99

$

Usually ships in 3-6 days

0

18

Honda 90003-ZW2-000

BOLT-WASHER (6X27) (CT200)
(Superseded to 90003-ZZ5-M01)

$3.99

$

Usually ships in 3-6 days

0

19

Honda 90011-ZW9-000

BOLT, FLANGE (6X14) (CT200)

$2.49

$

In Stock, only 1 left!

0

20

Honda 90013-ZW9-000

BOLT, FLANGE (6X12)

$2.49

$

Usually ships in 3-6 days

0

21

Honda 90014-ZW9-000

BOLT, FLANGE (6X10)
(Superseded to 90103-ZZ0-M01)

$1.99

$

Usually ships in 3-6 days

0

22

Honda 90021-ZY3-000

BOLT, FLANGE (6X14)
(Superseded to 90021-ZZ5-M01)

$1.99

$

Usually ships in 3-6 days

0

23

Honda 90301-ZW2-F00

NUT, FLANGE (6MM)
(Superseded to 90201-ZZ5-M01)

$1.49

$

Usually ships in 3-6 days

0

24

Honda 90302-ZV5-003

NUT, HEX. (20MM)

$7.49

$

Usually ships in 3-6 days

0

25

Honda 91553-ZV5-010

SEE PART DETAILS - PRI; COLLAR, MODULE IGNITION CONTROL CASE (CDI)

$3.99

$

Usually ships in 3-6 days

0
