BF60 AK1 LRTA (BBFJ) - Honda Marine Engine, Made in Japan (SN: BBFJ-1100001 - BBFJ-9999999) PROPELLER SHAFT (1) Parts Diagram

Marine Engine, Made in Japan

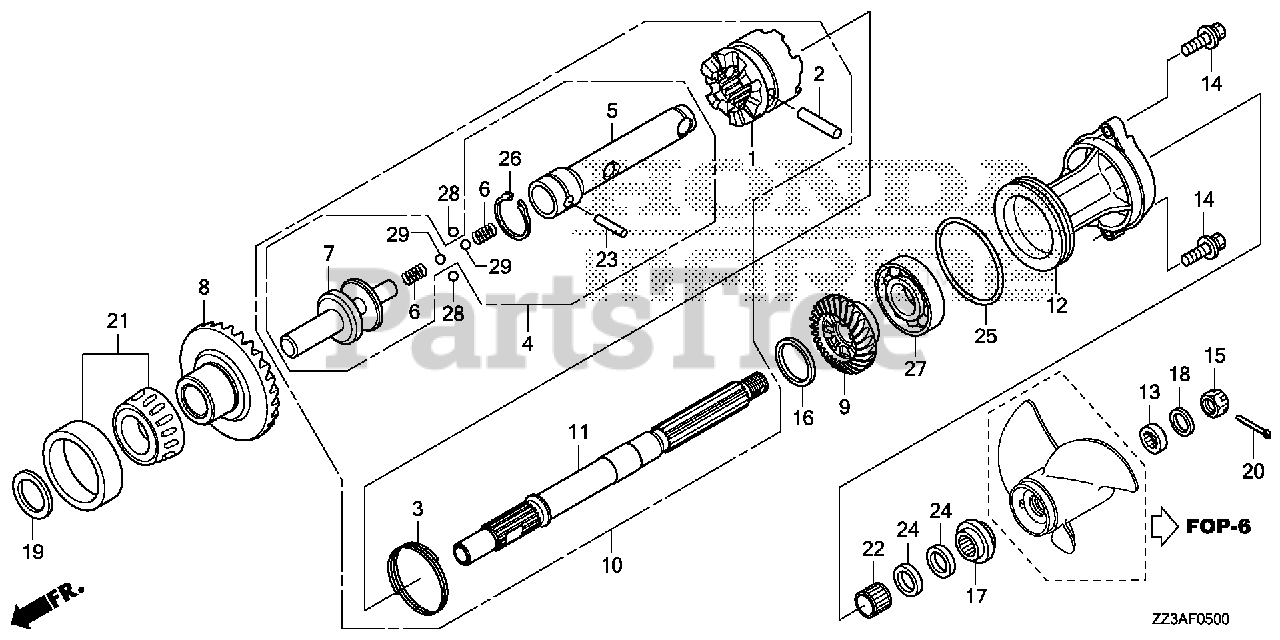

PROPELLER SHAFT (1) Parts Diagram

  • Title

1

Honda 24101-ZZ3-000

SHIFTER, CLUTCH

$105.99

$

Usually ships in 3-6 days

0

2

Honda 24102-ZV5-000

PIN, SHIFTER (6.3X33)

$4.49

$

Usually ships in 3-6 days

0

3

Honda 24103-ZV5-000

RING, CROSS PIN

$2.49

$

Usually ships in 3-6 days

0

4

Honda 24113-ZZ3-000

SLIDER, SHIFT

$100.99

$

Usually ships in 3-6 days

0

5

Honda 24122-ZZ3-000

SLIDER, SHIFT

$59.99

$

Usually ships in 3-6 days

0

6

Honda 24123-ZZ3-000

SPRING, SHIFT

$4.49

$

Usually ships in 3-6 days

0

7

Honda 24124-ZZ3-000

PLATE, SHIFT

$32.99

$

Usually ships in 3-6 days

0

8

Honda 41140-ZZ3-000

GEAR, FR. BEVEL (29T)

$215.99

$

Usually ships in 3-6 days

0

9

Honda 41151-ZZ3-000

GEAR, RR. BEVEL (29T)

$193.99

$

Usually ships in 3-6 days

0

10

Honda 41160-ZZ3-000

SHAFT ASSY., PROPELLER

$517.99

$

Usually ships in 3-6 days

0

11

Honda 41161-ZZ3-000

SHAFT, PROPELLER

$381.99

$

Usually ships in 3-6 days

0

12

Honda 41201-ZZ3-000ZC

HOLDER, PROPELLER SHAFT *NHB14M* (AQUA MARINE SILVER METALLIC)

$251.99

$

Usually ships in 3-6 days

0

13

Honda 58151-ZV5-000

SPACER (10MM)

$36.99

$

Usually ships in 3-6 days

0

14

Honda 90105-ZY6-000

BOLT-WASHER (8X30)

$8.49

$

Usually ships in 3-6 days

0

15

Honda 90301-ZV5-000

NUT, CASTLE (16MM)

$17.99

$

Usually ships in 3-6 days

0

16

Honda 90503-ZV5-000

WASHER (22MM)

$8.49

$

Usually ships in 3-6 days

0

17

Honda 90506-ZV5-020

SEE PART DETAILS - SUP; WASHER, PROPELLER THRUST
(Superseded to 90506-ZZ5-C00)

$59.99

$

Usually ships in 3-6 days

0

17

Honda 90506-ZZ5-C00

SEE PART DETAILS - PRI; WASHER, PROPELLER THRUST

$59.99

$

Usually ships in 3-6 days

0

18

Honda 90508-ZV5-000

WASHER (17MM)

$6.49

$

Usually ships in 3-6 days

0

19

Honda 90528-ZV5-000

SHIM, FR. BEVEL (51X57X0.10) (A)

$11.99

$

Usually ships in 3-6 days

0

19

Honda 90529-ZV5-000

SHIM, FR. BEVEL (51X57X0.15) (B)

$11.99

$

Usually ships in 3-6 days

0

19

Honda 90530-ZV5-000

SHIM, FR. BEVEL (51X57X0.30) (C)

$11.99

$

Usually ships in 3-6 days

0

19

Honda 90531-ZV5-000

SHIM, FR. BEVEL (51X57X0.50) (D)

$11.99

$

Usually ships in 3-6 days

0

20

Honda 90758-ZV5-000

PIN, SPLIT (4.0)

$3.49

$

Usually ships in 3-6 days

0

21

Honda 91051-ZZ5-003

BEARING (32X58X17)

$34.99

$

Usually ships in 3-6 days

0

22

Honda 91053-ZV5-003

BEARING, NEEDLE (22X28X20)

$18.99

$

Usually ships in 3-6 days

0

23

Honda 91101-ZW1-003

ROLLER (3X12.8)

$1.49

$

Usually ships in 3-6 days

0

24

Honda 91252-ZW4-003

SEAL, WATER (22X35X7)

$8.49

$

Usually ships in 3-6 days

0

25

Honda 91352-ZZ3-000

O-RING (76.5X3)

$6.49

$

Usually ships in 3-6 days

0

26

Honda 91451-ZZ3-000

CIRCLIP (14MM)

$8.99

$

Usually ships in 3-6 days

0

27

Honda 96100-60070-00

BEARING, RADIAL BALL (6007)

$27.99

$

Usually ships in 3-6 days

0

28

Honda 96211-06000

BALL, STEEL (#6) (3/16)

$0.99

$

In Stock, Qty 6

0

29

Honda 96211-07000

BALL, STEEL (#7) (7/32)

$1.99

$

Usually ships in 3-6 days

0
