BF60 A XRTA (BBFJ) - Honda Marine Engine, Made in Japan (SN: BBFJ-1000001 - BBFJ-9999999) ENGINE COVER Parts Diagram

Marine Engine, Made in Japan

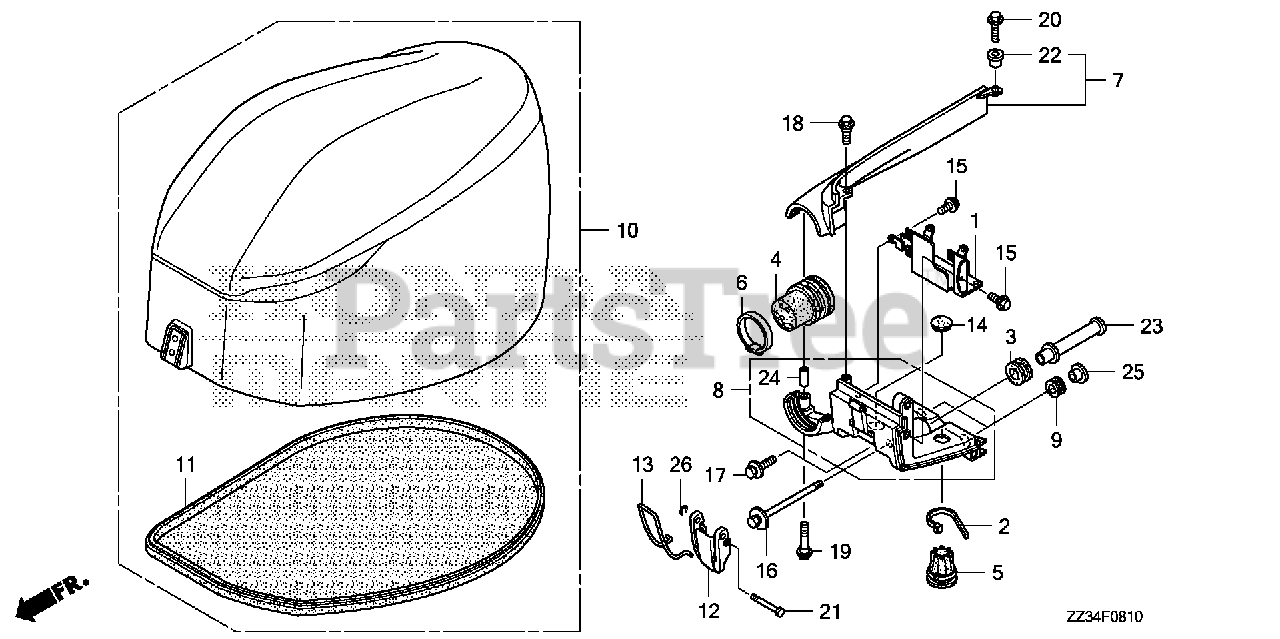

ENGINE COVER Parts Diagram

  • Title
1

Honda 32581-ZZ3-000

BRACKET, REMOTE CONTROL CABLE

$58.99

$

Usually ships in 3-6 days

0

2

Honda 35701-MG9-950

BAND (BLACK 3.5X140)

$2.49

$

Usually ships in 3-6 days

0

3

Honda 40102-ZV5-000

GROMMET, CASE (LOWER)

$3.99

$

Usually ships in 3-6 days

0

4

Honda 40105-ZZ3-000

GROMMET, REMOTE CONTROL CABLE

$34.99

$

Usually ships in 3-6 days

0

5

Honda 40107-ZW1-700

GROMMET, CASE (LOWER) (C)

$20.99

$

Usually ships in 3-6 days

0

6

Honda 40119-ZY3-003

BAND, CASE GROMMET (LOWER)

$16.99

$

Usually ships in 3-6 days

0

7

Honda 40151-ZZ3-000ZB

COVER, FR. SEPARATE *NH282MU* (OYSTER SILVER METALLIC-U)

$133.99

$

Usually ships in 3-6 days

0

8

Honda 40154-ZZ3-000ZB

BRACKET, FR. COVER (LOWER) *NH282MU* (OYSTER SILVER METALLIC-U)

$81.99

$

Usually ships in 3-6 days

0

9

Honda 61102-MB6-631

RUBBER, FENDER MOUNTING

$2.99

$

Usually ships in 3-6 days

0

10

Honda 63100-ZZ3-000ZB

COVER ASSY., ENGINE *NH282MU* (OYSTER SILVER METALLIC-U)

$1084.99

$

Usually ships in 3-6 days

0

11

Honda 63102-ZZ3-000

SEAL, ENGINE COVER

$60.99

$

Usually ships in 3-6 days

0

12

Honda 63232-ZY9-000

LEVER, FASTENER

$16.99

$

Usually ships in 3-6 days

0

13

Honda 63237-ZY9-000

WIRE, FASTENER

$10.99

$

Usually ships in 3-6 days

0

14

Honda 63515-ZC0-700

CAP, L. SIDE COVER

$7.99

$

Usually ships in 3-6 days

0

15

Honda 90014-ZW9-000

BOLT, FLANGE (6X10)
(Superseded to 90103-ZZ0-M01)

$1.99

$

Usually ships in 3-6 days

0

16

Honda 90104-ZY9-000

BOLT-WASHER (6X95)

$5.49

$

Usually ships in 3-6 days

0

17

Honda 90106-ZZ3-000

BOLT-WASHER (6X27)

$4.99

$

Usually ships in 3-6 days

0

18

Honda 90111-ZY3-000

BOLT, SPECIAL (6X17)

$2.99

$

Usually ships in 3-6 days

0

19

Honda 90132-ZY3-000

BOLT, SPECIAL (6X37)

$4.49

$

Usually ships in 3-6 days

0

20

Honda 90168-ZW4-000

BOLT, FLANGE (6X20)
(Superseded to 90068-ZZ5-M01)

$1.99

$

Usually ships in 3-6 days

0

21

Honda 90754-ZY9-000

PIN (5X44.5)

$4.49

$

Usually ships in 3-6 days

0

22

Honda 91553-ZY6-000

COLLAR, DISTANCE (6.5X9X11.5)

$5.99

$

Usually ships in 3-6 days

0

23

Honda 91553-ZY9-000

COLLAR, FR. BRACKET

$10.99

$

Usually ships in 3-6 days

0

24

Honda 91553-ZZ3-000

COLLAR, DISTANCE (6.1X9.1X20.5)

$3.99

$

Usually ships in 3-6 days

0

25

Honda 91554-ZY9-000

COLLAR, DISTANCE (6.2X7.5)

$3.99

$

Usually ships in 3-6 days

0

26

Honda 94540-04029

E-RING (4MM)

$6.99

$

In Stock, only 3 left!

0
