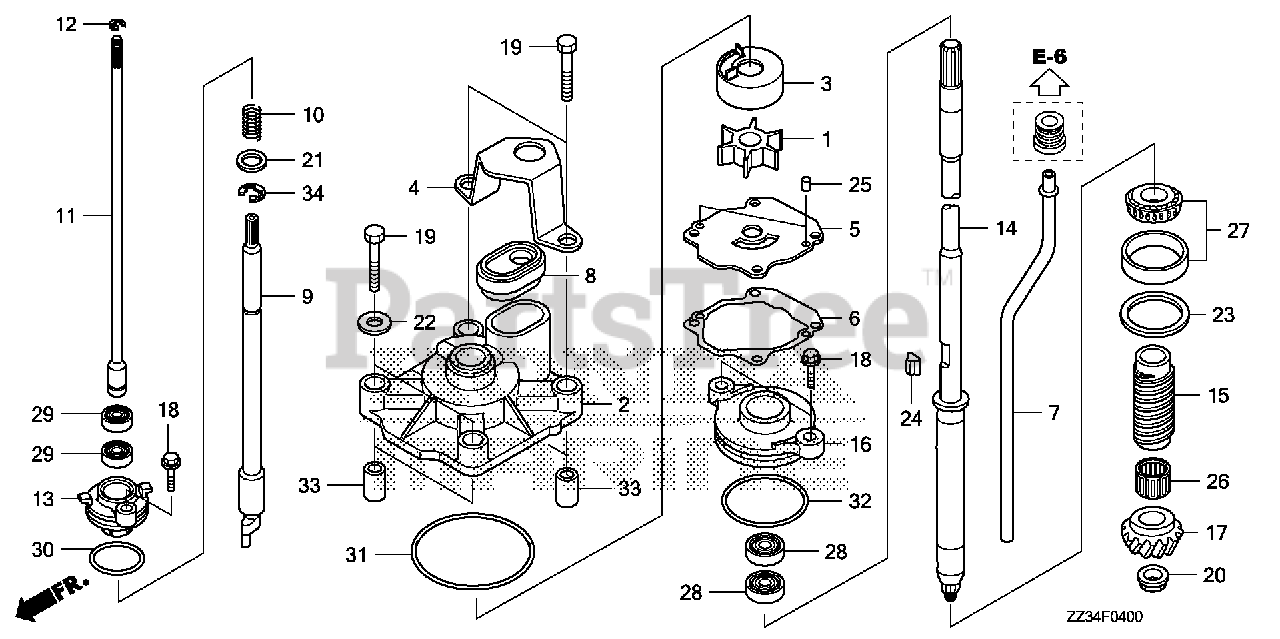

BF60 A LRTA (BBFJ) - Honda Marine Engine, Made in Japan (SN: BBFJ-1000001 - BBFJ-9999999) WATER PUMP Parts Diagram

Marine Engine, Made in Japan

WATER PUMP Parts Diagram

  • Title

1

Honda 19210-ZV5-003

IMPELLER, PUMP

$33.99

$

In Stock, only 1 left!

0

2

Honda 19221-ZZ3-000

HOUSING, IMPELLER

$44.99

$

Usually ships in 3-6 days

0

3

Honda 19223-ZZ3-000

LINER, PUMP

$23.99

$

Usually ships in 3-6 days

0

4

Honda 19228-ZZ3-000

HOLDER, WATER TUBE SEAL

$18.99

$

Usually ships in 3-6 days

0

5

Honda 19231-ZZ3-000

COVER, IMPELLER

$29.99

$

Usually ships in 3-6 days

0

6

Honda 19234-ZZ3-000

GASKET, IMPELLER

$8.49

$

Usually ships in 3-6 days

0

7

Honda 19251-ZZ3-650

TUBE, WATER (XL)

$52.99

$

Usually ships in 3-6 days

0

8

Honda 19253-ZZ3-000

RUBBER, WATER TUBE SEAL

$13.99

$

Usually ships in 3-6 days

0

9

Honda 24310-ZZ3-000

ROD, SHIFT

$256.99

$

Usually ships in 3-6 days

0

10

Honda 24318-ZY3-000

SPRING, SHIFT ROD

$3.99

$

Usually ships in 3-6 days

0

11

Honda 24320-ZY9-610

ROD A, SHIFT (XL)

$94.99

$

Usually ships in 3-6 days

0

12

Honda 24327-ZW1-000

RING, STOPPER

$2.49

$

Usually ships in 3-6 days

0

13

Honda 24343-ZZ3-000

HOLDER, SHIFT ROD

$50.99

$

Usually ships in 3-6 days

0

14

Honda 41112-ZZ3-650

SHAFT, VERTICAL (XL)

$776.99

$

Usually ships in 3-6 days

0

15

Honda 41116-ZV5-000

SLINGER, OIL

$15.99

$

Usually ships in 3-6 days

0

16

Honda 41117-ZZ3-000

HOUSING, WATER SEAL

$45.99

$

Usually ships in 3-6 days

0

17

Honda 41131-ZZ3-000

GEAR, PINION (14T)

$108.99

$

Usually ships in 3-6 days

0

18

Honda 90105-ZW9-000

BOLT, FLANGE (6X20)

$3.99

$

Usually ships in 3-6 days

0

19

Honda 90116-881-000

BOLT, HEX. (8X40)

$5.99

$

Usually ships in 3-6 days

0

20

Honda 90303-ZV5-000

NUT, SPECIAL (12MM)

$8.99

$

Usually ships in 3-6 days

0

21

Honda 90472-723-000

WASHER, PLAIN (12MM)

$1.99

$

Usually ships in 3-6 days

0

22

Honda 90514-921-000

WASHER (8MM)

$1.49

$

In Stock, Qty 9

0

23

Honda 90518-ZV5-000

SHIM, GEAR (40X46X0.10) (A)

$8.49

$

Usually ships in 3-6 days

0

23

Honda 90519-ZV5-000

SHIM, GEAR (40X46X0.15) (B)

$8.49

$

Usually ships in 3-6 days

0

23

Honda 90520-ZV5-000

SHIM, GEAR (40X46X0.30) (C)

$8.49

$

Usually ships in 3-6 days

0

23

Honda 90521-ZV5-000

SHIM, GEAR (40X46X0.50) (D)

$8.49

$

Usually ships in 3-6 days

0

24

Honda 90752-ZV5-003

KEY, WOODRUFF

$9.99

$

Usually ships in 3-6 days

0

25

Honda 90756-ZV5-000

PIN, DOWEL (6X10)

$3.99

$

Usually ships in 3-6 days

0

26

Honda 91052-ZZ3-003

BEARING, NEEDLE (7/8X11/8X1)

$31.99

$

Usually ships in 3-6 days

0

27

Honda 91054-ZV5-003

BEARING (25X47X15)

$40.99

$

Usually ships in 3-6 days

0

28

Honda 91251-ZZ3-003

SEAL, WATER (17X36X6)

$6.99

$

Usually ships in 3-6 days

0

29

Honda 91254-ZY3-003

SEAL, WATER (12X21X6)

$6.49

$

Usually ships in 3-6 days

0

30

Honda 91351-ZZ3-000

O-RING (33.7X3.5)

$3.99

$

Usually ships in 3-6 days

0

31

Honda 91356-ZZ3-000

O-RING, WATER PUMP

$4.99

$

Usually ships in 3-6 days

0

32

Honda 91359-MB0-000

O-RING (58.5X3.5)

$7.49

$

Usually ships in 3-6 days

0

33

Honda 91552-ZY6-000

COLLAR, DISTANCE

$6.49

$

Usually ships in 3-6 days

0

34

Honda 94540-10019

E-RING (10MM)

$3.99

$

Usually ships in 3-6 days

0
