BF50 D XRTA (BBEJ) - Honda Marine Engine, Made in Japan (SN: BBEJ-1000001 - BBEJ-9999999) FUEL TANK Parts Diagram

Marine Engine, Made in Japan

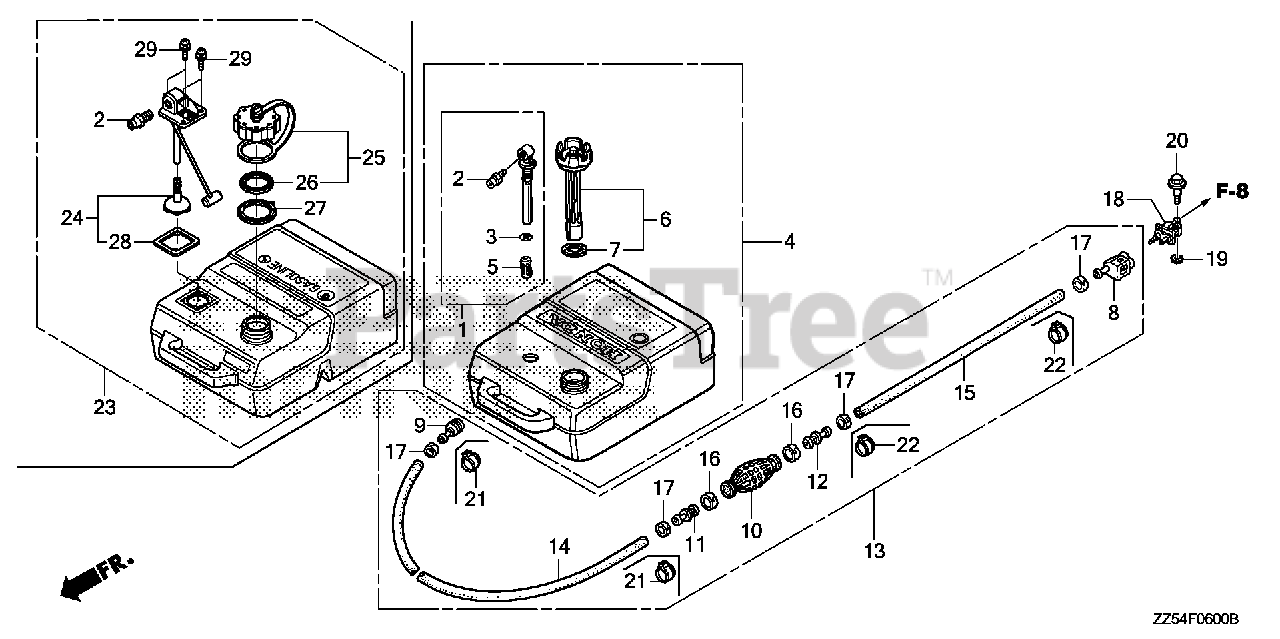

FUEL TANK Parts Diagram

  • Title

1

Honda 16900-ZV5-902

JOINT ASSY., FUEL

Note: (Optional).

$41.99

$

Usually ships in 3-6 days

0

2

Honda 16977-ZV5-A00

FITTING, QUICK DISCONNECT

Note: (Optional).

$21.99

$

Usually ships in 3-6 days

0

3

Honda 16979-ZV5-901

SEE PART DETAILS - PRI; O-RING

Note: (Optional).

$0.99

$

Usually ships in 3-6 days

0

4

Honda 17500-ZZ5-711

SEE PART DETAILS - PRI; TANK ASSY., FUEL

Note: (Optional).

$264.99

$

Usually ships in 3-6 days

0

5

Honda 17583-ZV5-901

SEE PART DETAILS - PRI; FILTER, FUEL

Note: (Optional).

$2.99

$

In Stock, only 2 left!

0

6

Honda 17620-ZV5-903

SEE PART DETAILS - PRI; CAP, FUEL FILLER

Note: (Optional).

$40.99

$

Usually ships in 3-6 days

0

7

Honda 17624-ZV5-902

GASKET, FUEL CAP

Note: (Optional).

$9.99

$

Usually ships in 3-6 days

0

8

Honda 17650-ZW9-023

CONNECTOR ASSY., FUEL (A)

$51.99

$

In Stock, only 1 left!

0

9

Honda 17660-ZW9-003

SEE PART DETAILS - PRI; CONNECTOR, FUEL

$47.99

$

Usually ships in 3-6 days

0

10

Honda 17661-ZW9-900

BULB, PRIMER

Note: Use from Frame SN 1014789.

$68.99

$

Usually ships in 3-6 days

0

10

Honda 17661-921-010

SEE PART DETAILS - PRI; BULB, PRIMER

Note: Use up to Frame SN 1014788.

$19.99

$

Usually ships in 3-6 days

0

11

Honda 17665-ZV5-000

VALVE, IN.

$17.99

$

Usually ships in 3-6 days

0

12

Honda 17680-ZV4-000

VALVE, OUTLET

$17.99

$

Usually ships in 3-6 days

0

13

Honda 17700-ZW9-030

TUBE ASSY., FUEL

Note: Use up to Frame SN 1007038.

$96.99

$

In Stock, only 1 left!

0

13

Honda 17700-ZW9-904

TUBE ASSY., FUEL TANK

Note: Use from Frame SN 1007039.

$187.99

$

Usually ships in 3-6 days

0

13

Honda 17700-ZW9-904

TUBE ASSY., FUEL TANK

Note: Use from Frame SN 1009720.

$187.99

$

Usually ships in 3-6 days

0

14

Honda 17701-ZV5-000

TUBE, FUEL LONG (7.3X2000)

Note: Use up to Frame SN 1007038.

$67.99

$

Usually ships in 3-6 days

0

14

Honda 17701-ZY9-E01

TUBE, FUEL LONG (7.3X2000)
(Superseded to 17701-ZY9-E04)

Note: Use from Frame SN 1007039 to 1014788.

$138.99

$

Usually ships in 3-6 days

0

14

Honda 17701-ZY9-E02

TUBE, FUEL LONG (7.3X2000)
(Superseded to 17701-ZY9-E04)

Note: Use from Frame SN 1009720.

$138.99

$

Usually ships in 3-6 days

0

14

Honda 17701-ZY9-E04

SEE PART DETAILS - PRI; TUBE, FUEL LONG (7.3X2000)

Note: Use from Frame SN 1014789.

$138.99

$

Usually ships in 3-6 days

0

15

Honda 17702-ZV4-000

TUBE, FUEL SHORT (6.3X500)

Note: Use up to Frame SN 1007038.

$13.99

$

Usually ships in 3-6 days

0

15

Honda 17702-ZW9-901

TUBE, FUEL SHORT (6.3X500)
(Superseded to 17702-ZW9-904)

Note: Use from Frame SN 1007039 to 1009719.

$30.99

$

Usually ships in 3-6 days

0

15

Honda 17702-ZW9-901

TUBE, FUEL SHORT (6.3X500)
(Superseded to 17702-ZW9-904)

Note: Use from Frame SN 1009720.

$30.99

$

Usually ships in 3-6 days

0

15

Honda 17702-ZW9-904

TUBE, FUEL SHORT

Note: Use from Frame SN 1009720.

$30.99

$

Usually ships in 3-6 days

0

16

Honda 17703-921-010

SEE PART DETAILS - PRI; BAND, TUBE CLIP (20MM)

$5.49

$

Usually ships in 3-6 days

0

17

Honda 17704-ZV4-010

SEE PART DETAILS - PRI; BAND, TUBE CLIP (12.5MM)

Note: Use up to Frame SN 1007038.

$3.49

$

Usually ships in 3-6 days

0

18

Honda 17710-ZW9-033

CONNECTOR ASSY., FUEL (B)

$67.99

$

Usually ships in 3-6 days

0

19

Honda 17936-921-000

WASHER, PIVOT

$1.99

$

Usually ships in 3-6 days

0

20

Honda 90112-ZY1-000

BOLT, SPECIAL (6X22) (CT200)

$4.99

$

Usually ships in 3-6 days

0

21

Honda 16895-ZW9-900

CLAMP, FUEL TUBE

Note: Use from Frame SN 1007039 to 1014788.

$5.49

$

Usually ships in 3-6 days

0

21

Honda 16897-ZW9-003

CLAMP, FUEL TUBE (14.0)

Note: Use from Frame SN 1014789.

$7.49

$

Usually ships in 3-6 days

0

22

Honda 16896-ZW9-900

CLAMP, FUEL TUBE

Note: Use from Frame SN 1007039 to 1014788.

$5.49

$

Usually ships in 3-6 days

0

22

Honda 16897-ZW9-003

CLAMP, FUEL TUBE (14.0)

Note: Use from Frame SN 1014789.

$7.49

$

Usually ships in 3-6 days

0

23

Honda 17500-ZZ5-711

SEE PART DETAILS - PRI; TANK ASSY., FUEL

Note: (Optional).

$264.99

$

Usually ships in 3-6 days

0

24

Honda 17580-ZZ5-003

FILTER KIT, FUEL

Note: (Optional).

$46.99

$

Usually ships in 3-6 days

0

25

Honda 17620-ZZ5-003

CAP, FUEL FILLER

Note: (Optional).

$49.99

$

Usually ships in 3-6 days

0

26

Honda 17624-ZZ5-003

GASKET, FUEL CAP

Note: (Optional).

$4.49

$

Usually ships in 3-6 days

0

27

Honda 17625-ZZ5-003

RETAINER, PRESSURE RELIEF

Note: (Optional).

$2.49

$

Usually ships in 3-6 days

0

28

Honda 17742-ZZ5-003

GASKET, FUEL PICK-UP

Note: (Optional).

$6.49

$

Usually ships in 3-6 days

0

29

Honda 17743-ZZ5-003

BOLT-WASHER (5MM) (SEAL)

Note: (Optional).

$4.49

$

Usually ships in 3-6 days

0
