BF50 D XRTA (BBEJ) - Honda Marine Engine, Made in Japan (SN: BBEJ-1000001 - BBEJ-9999999) EXTENSION CASE Parts Diagram

Marine Engine, Made in Japan

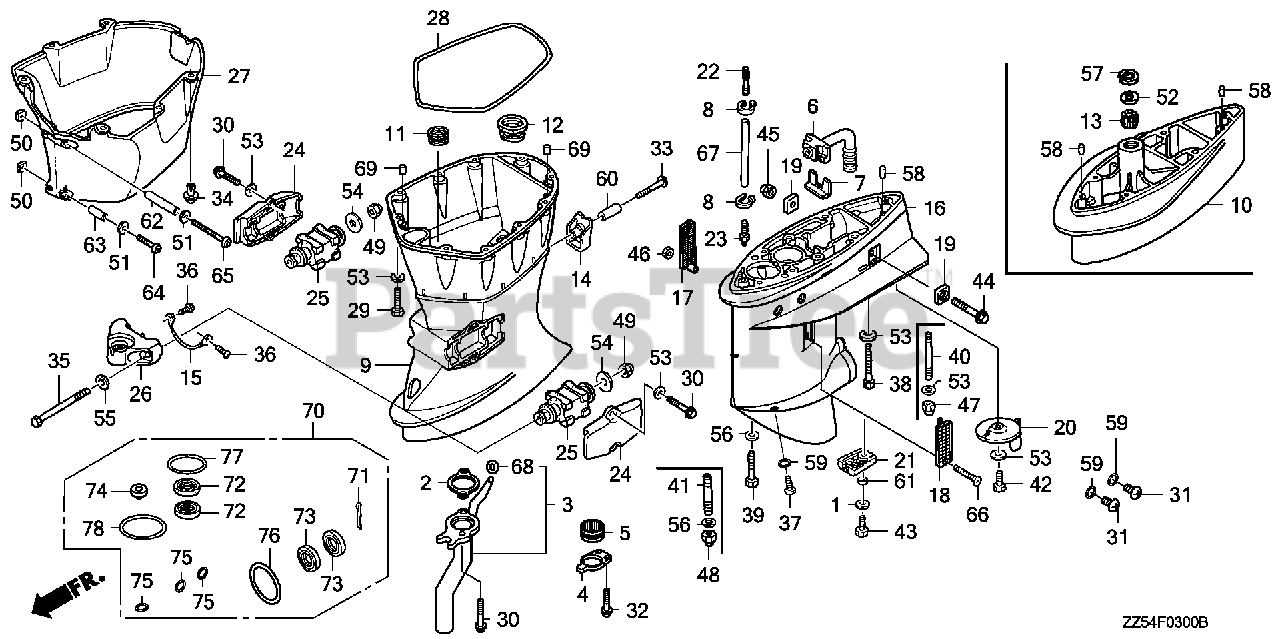

EXTENSION CASE Parts Diagram

  • Title

1

Honda 17936-921-000

WASHER, PIVOT

$1.99

$

Usually ships in 3-6 days

0

2

Honda 18291-ZV5-010

GASKET, EX. PIPE

$3.99

$

Usually ships in 3-6 days

0

3

Honda 06184-ZW4-000

PIPE KIT, EX.

$132.99

$

Usually ships in 3-6 days

0

4

Honda 18334-ZW4-000

HOLDER, EX. PIPE GROMMET

$42.99

$

Usually ships in 3-6 days

0

5

Honda 18337-ZW4-000

GROMMET, EX. PIPE

$9.49

$

Usually ships in 3-6 days

0

6

Honda 19280-ZV5-000

TUBE, WATER (LOWER)

$31.99

$

Usually ships in 3-6 days

0

7

Honda 19286-ZV5-000

PLATE, RUBBER SETTING

$6.49

$

Usually ships in 3-6 days

0

8

Honda 32161-KM3-003

BAND, WIRE

$3.99

$

Usually ships in 3-6 days

0

9

Honda 40201-ZZ5-010ZA

CASE, EXTENSION *NH282MU* (OYSTER SILVER METALLIC-U)

$634.99

$

Usually ships in 3-6 days

0

10

Honda 40202-ZV5-A10ZA

SEPARATOR, EXTENSION *NH282MU* (OYSTER SILVER METALLIC-U)

$979.99

$

Usually ships in 3-6 days

0

11

Honda 40204-ZV5-000

GROMMET, EXTENSION CASE

$4.49

$

Usually ships in 3-6 days

0

12

Honda 40209-ZV5-000

RUBBER, DRAIN PLUG

$10.99

$

Usually ships in 3-6 days

0

13

Honda 40210-ZV5-A11

BUSH, VERTICAL SHAFT

$25.99

$

Usually ships in 3-6 days

0

14

Honda 40212-ZV5-010ZA

SEE PART DETAILS - PRI; COVER, DRAIN PLUG *NH282MU* (OYSTER SILVER METALLIC-U)

$16.99

$

Usually ships in 3-6 days

0

15

Honda 40219-ZY3-013

SEE PART DETAILS - PRI; WIRE, LEAD (1.5X116MM)
(Superseded to 40219-ZY3-023)

$12.99

$

Usually ships in 3-6 days

0

16

Honda 41101-ZZ5-000ZA

CASE, GEAR *NH282MU* (OYSTER SILVER METALLIC-U)

$925.99

$

Usually ships in 3-6 days

0

17

Honda 41104-ZZ0-000

SCREEN, R. WATER

$9.99

$

Usually ships in 3-6 days

0

18

Honda 41105-ZZ0-000

SCREEN, L. WATER

$9.99

$

Usually ships in 3-6 days

0

19

Honda 41106-ZW9-000

METAL, ANODE

$11.99

$

Usually ships in 3-6 days

0

20

Honda 41107-ZZ5-000ZA

TAB, TRIM *NH282MU* (OYSTER SILVER METALLIC-U)

$49.99

$

Usually ships in 3-6 days

0

21

Honda 41108-ZV5-000

SEE PART DETAILS - SUP; SCREEN, WATER (LOWER)
(Superseded to 41108-ZV5-010)

$7.99

$

Usually ships in 3-6 days

0

21

Honda 41108-ZV5-010

SEE PART DETAILS - PRI; SCREEN, WATER (LOWER)

$7.99

$

Usually ships in 3-6 days

0

22

Honda 41171-ZV5-000

END, NIPPLE

$8.49

$

Usually ships in 3-6 days

0

23

Honda 41172-ZV5-000

NIPPLE, SENSOR

$10.99

$

Usually ships in 3-6 days

0

24

Honda 50111-ZV5-000ZA

HOUSING, R. MOUNTING (LOWER) *NH282MU* (OYSTER SILVER METALLIC-U)

$85.99

$

Usually ships in 3-6 days

0

25

Honda 50155-ZV5-000

RUBBER, MOUNT (LOWER)

$93.99

$

Usually ships in 3-6 days

0

26

Honda 50161-ZV5-010ZA

HOUSING, CENTER MOUNTING (LOWER) *NH282MU* (OYSTER SILVER METALLIC-U)

$175.99

$

Usually ships in 3-6 days

0

27

Honda 63701-ZV5-010ZA

COVER (LOWER) *NH282MU* (OYSTER SILVER METALLIC-U)

$234.99

$

Usually ships in 3-6 days

0

28

Honda 63702-ZV5-000

RUBBER, COVER (LOWER)

$10.99

$

Usually ships in 3-6 days

0

29

Honda 90009-ZV5-000

BOLT, HEX. (8X35)

$5.49

$

Usually ships in 3-6 days

0

30

Honda 90101-HW1-671

BOLT, FLANGE (8X25)

$4.99

$

Usually ships in 3-6 days

0

31

Honda 90101-ZW9-003

BOLT, OIL CHECK

$3.99

$

Usually ships in 3-6 days

0

32

Honda 90105-ZW9-000

BOLT, FLANGE (6X20)

$3.99

$

Usually ships in 3-6 days

0

33

Honda 90110-ZV5-000

SCREW, SPECIAL (6X35)

$4.49

$

In Stock, only 1 left!

0

34

Honda 90117-ZV5-003

SCREW, RIVET (8X15)

$3.49

$

Usually ships in 3-6 days

0

35

Honda 90118-ZV5-000

BOLT, HEX. (12X162)

$40.99

$

Usually ships in 3-6 days

0

36

Honda 90119-ZV5-000

SCREW, PAN (6X8)

$2.49

$

Usually ships in 3-6 days

0

37

Honda 90120-ZY3-000

BOLT, DRAIN PLUG

$19.99

$

Usually ships in 3-6 days

0

40

Honda 90124-ZV5-A10

BOLT, STUD (8X164)

$28.99

$

Usually ships in 3-6 days

0

41

Honda 90125-ZV5-A10

BOLT, STUD (10X132)

$33.99

$

Usually ships in 3-6 days

0

42

Honda 90126-ZV5-000

BOLT, HEX. (8X20)

$5.49

$

Usually ships in 3-6 days

0

43

Honda 90127-ZV4-000

BOLT, HEX. (6X16)

$2.99

$

Usually ships in 3-6 days

0

44

Honda 90205-HW1-670

BOLT, FLANGE (6X25)

$2.99

$

Usually ships in 3-6 days

0

45

Honda 90205-ZY1-000

NUT, SELF-LOCK (6MM)

$6.49

$

Usually ships in 3-6 days

0

46

Honda 90302-ZV4-000

NUT, SELF-LOCK (5MM)

$6.99

$

Usually ships in 3-6 days

0

47

Honda 90305-ZV4-000

NUT, SELF-LOCK (8MM)

$6.49

$

In Stock, only 1 left!

0

48

Honda 90306-ZV5-003

NUT, SELF-LOCK (10MM)

$4.99

$

In Stock, only 2 left!

0

49

Honda 90308-ZV5-003

NUT, SELF-LOCK (12MM)

$12.99

$

Usually ships in 3-6 days

0

50

Honda 90311-ZV5-000

NUT, PLATE (5MM)

$10.99

$

Usually ships in 3-6 days

0

51

Honda 90452-GK4-600

WASHER, PLAIN (5MM)

$1.99

$

Usually ships in 3-6 days

0

52

Honda 90501-ZV5-A10

WASHER (20MM)

$3.99

$

Usually ships in 3-6 days

0

53

Honda 90507-ZV4-000

WASHER, PLAIN (8MM)

$2.99

$

Usually ships in 3-6 days

0

54

Honda 90552-ZV5-000

WASHER, PLAIN (12MM)

$6.49

$

Usually ships in 3-6 days

0

55

Honda 90559-ZV5-000

WASHER, PLAIN (12MM)

$3.99

$

Usually ships in 3-6 days

0

56

Honda 90563-ZV5-000

WASHER, PLAIN (10MM)

$3.49

$

Usually ships in 3-6 days

0

57

Honda 90651-ZV5-A10

CIRCLIP (INNER) (30MM)

$10.99

$

Usually ships in 3-6 days

0

58

Honda 90756-ZV5-000

PIN, DOWEL (6X10)

$3.99

$

Usually ships in 3-6 days

0

59

Honda 91301-ZW4-003

O-RING (6.9X1.45)

$1.49

$

In Stock, Qty 6

0

60

Honda 91563-ZV5-000

COLLAR, DISTANCE (6X10.5X25)

$8.49

$

Usually ships in 3-6 days

0

61

Honda 91566-ZV5-000

COLLAR, WATER SCREEN (LOWER)

$6.49

$

Usually ships in 3-6 days

0

62

Honda 91568-ZV5-000

COLLAR, DISTANCE (5X7X38)

$5.49

$

Usually ships in 3-6 days

0

63

Honda 91569-ZV5-000

COLLAR, DISTANCE (5X7X23)

$6.49

$

Usually ships in 3-6 days

0

64

Honda 93500-05030-4J

SCREW, PAN (5X30)

$2.49

$

Usually ships in 3-6 days

0

65

Honda 93500-05045-4J

SCREW, PAN (5X45)

$3.49

$

Usually ships in 3-6 days

0

66

Honda 93700-05040-4J

SCREW, OVAL (5X40)

$1.99

$

Usually ships in 3-6 days

0

67

Honda 95005-50003-30M

BULK HOSE, VACUUM (5X3000) (5X300)

$31.99

$

Usually ships in 3-6 days

0

68

Honda 18338-ZZ5-000

GROMMET, EX. BREATHER PIPE

$4.99

$

Usually ships in 3-6 days

0

68

Honda 91303-ZY6-003

O-RING (15X1.9)

$1.99

$

Usually ships in 3-6 days

0

69

Honda 90756-ZZ5-000

PIN, DOWEL (6X15)

Note: Use from Frame SN 1006720.

$3.99

$

Usually ships in 3-6 days

0

69

Honda 94303-06100

PIN, DOWEL (6X10)

Note: Use up to Frame SN 1006719.

$2.99

$

Usually ships in 3-6 days

0

70

Honda 06125-ZZ5-000

CASE KIT, GEAR

Note: (Optional).

$30.99

$

Usually ships in 3-6 days

0

71

Honda 90758-ZV5-000

PIN, SPLIT (4.0)

Note: (Optional).

$2.99

$

Usually ships in 3-6 days

0

72

Honda 91251-ZV5-003

SEAL, WATER (17X30X7)

Note: (Optional).

$9.49

$

Usually ships in 3-6 days

0

73

Honda 91252-ZW4-003

SEAL, WATER (22X35X7)

Note: (Optional).

$7.99

$

Usually ships in 3-6 days

0

74

Honda 91253-ZW4-003

SEAL, WATER (7MM)

Note: (Optional).

$6.99

$

Usually ships in 3-6 days

0

75

Honda 91301-ZW4-003

O-RING (6.9X1.45)

Note: (Optional).

$1.49

$

In Stock, Qty 6

0

76

Honda 91351-ZZ5-003

O-RING (69X3.1)

Note: (Optional).

$4.49

$

Usually ships in 3-6 days

0

77

Honda 91351-740-003

O-RING (41.7X3.5)

Note: (Optional).

$2.99

$

In Stock, only 2 left!

0

78

Honda 91353-ZV5-003

O-RING (47X3.1)

Note: (Optional).

$3.99

$

In Stock, only 1 left!

0
