BF50 D LRTA (BBEJ) - Honda Marine Engine, Made in Japan (SN: BBEJ-1000001 - BBEJ-9999999) STERN BRACKET Parts Diagram

Marine Engine, Made in Japan

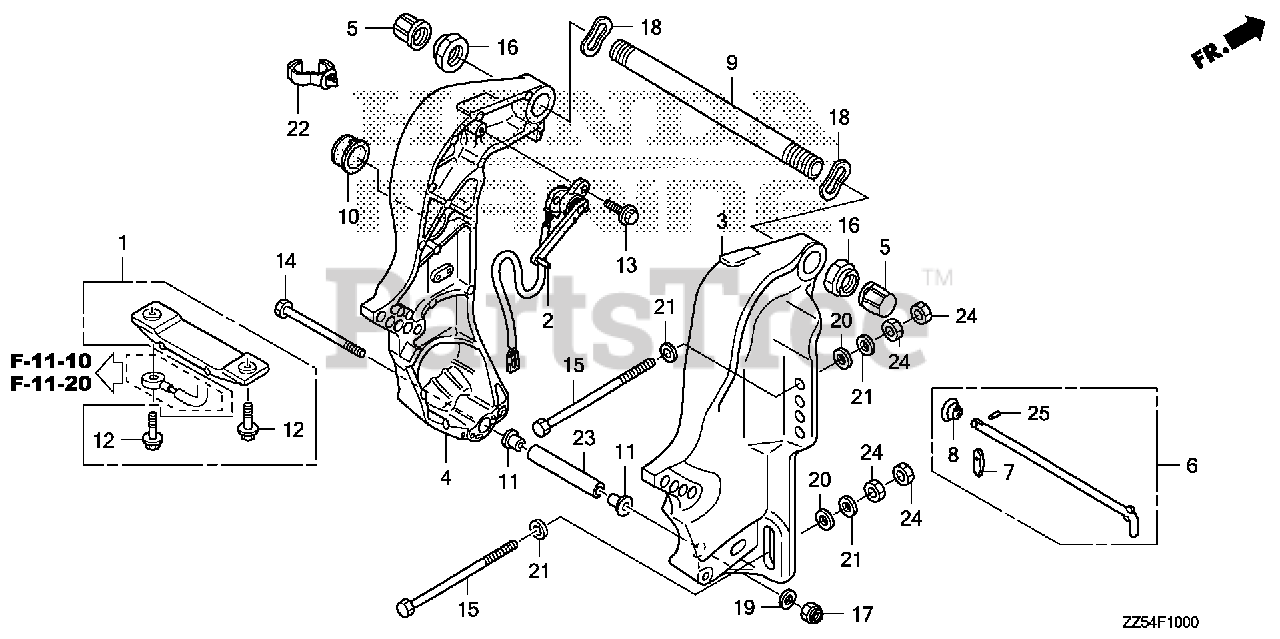

STERN BRACKET Parts Diagram

  • Title

1

Honda 06411-ZV5-020

SEE PART DETAILS - PRI; METAL KIT, ANODE

$46.99

$

Usually ships in 3-6 days

0

2

Honda 35660-ZZ5-013

SENSOR ASSY., TRIM ANGLE

$190.99

$

Usually ships in 3-6 days

0

3

Honda 50301-ZW4-H10ZA

BRACKET, R. STERN *NH282MU* (OYSTER SILVER METALLIC-U)

$345.99

$

Usually ships in 3-6 days

0

4

Honda 50311-ZZ5-010ZA

SEE PART DETAILS - PRI; BRACKET, L. STERN *NH282MU* (OYSTER SILVER METALLIC-U)

$335.99

$

Usually ships in 3-6 days

0

5

Honda 50331-ZV5-000

CAP, TILTING BOLT

$7.99

$

Usually ships in 3-6 days

0

6

Honda 50340-ZV5-010

SEE PART DETAILS - PRI; ROD, ADJUSTING

Note: (Optional). Use up to Frame SN 1004952.

$41.99

$

Usually ships in 3-6 days

0

6

Honda 50340-ZZ5-000

ROD, ADJUSTING

Note: (Optional). Use from Frame SN 1004953.

$78.99

$

Usually ships in 3-6 days

0

7

Honda 50342-ZV5-300

STOPPER, ROD

Note: (Optional).

$6.99

$

Usually ships in 3-6 days

0

8

Honda 50343-921-300

SPRING, ADJUSTING ROD

Note: (Optional).

$4.49

$

Usually ships in 3-6 days

0

9

Honda 50381-ZZ5-000

SEE PART DETAILS - PRI; SHAFT, TILTING

$101.99

$

Usually ships in 3-6 days

0

10

Honda 56118-ZV5-820

BUSH, MOTOR CODE

$11.99

$

Usually ships in 3-6 days

0

11

Honda 56513-ZV5-000

BUSH, CYLINDER (LOWER)

$5.49

$

Usually ships in 3-6 days

0

12

Honda 90009-ZW9-000

BOLT, FLANGE (6X23)

$3.99

$

Usually ships in 3-6 days

0

13

Honda 90105-ZW9-000

BOLT, FLANGE (6X20)

$3.99

$

Usually ships in 3-6 days

0

14

Honda 90108-ZV5-000

BOLT, HEX. (10X158)

$32.99

$

Usually ships in 3-6 days

0

15

Honda 90129-ZV5-850

BOLT, HEX. (12X100)

Note: Use up to Frame SN 1007230.

$31.99

$

Usually ships in 3-6 days

0

15

Honda 90129-ZZ3-000

BOLT, HEX. (12X119)

Note: Use from Frame SN 1007231.

$17.99

$

Usually ships in 3-6 days

0

16

Honda 90304-ZV5-013

SEE PART DETAILS - PRI; NUT, SELF-LOCK (7/8-14UNF)

$23.99

$

Usually ships in 3-6 days

0

17

Honda 90306-ZV5-003

NUT, SELF-LOCK (10MM)

$4.99

$

In Stock, only 2 left!

0

18

Honda 90517-ZV5-000

WASHER, WAVE (22MM)

$7.49

$

Usually ships in 3-6 days

0

19

Honda 90545-ZV5-000

WASHER, PLAIN (10MM)

$3.99

$

Usually ships in 3-6 days

0

20

Honda 90552-ZV5-000

WASHER, PLAIN (12MM)

$6.49

$

Usually ships in 3-6 days

0

21

Honda 90559-ZV5-000

WASHER, PLAIN (12MM)

$3.99

$

Usually ships in 3-6 days

0

22

Honda 90681-763-A01

CLIP, WIRE HARNESS

$10.99

$

Usually ships in 3-6 days

0

23

Honda 91556-ZV5-000

SEE PART DETAILS - SUP; COLLAR, DISTANCE (10X90)
(Superseded to 91556-ZZ5-C00)

$36.99

$

Usually ships in 3-6 days

0

23

Honda 91556-ZZ5-C00

SEE PART DETAILS - PRI; COLLAR, DISTANCE (10X90)

$36.99

$

Usually ships in 3-6 days

0

24

Honda 94001-12490-0S

NUT, HEX. (12MM)

$2.99

$

Usually ships in 3-6 days

0

25

Honda 90751-ZW6-000

PIN, SPRING (2.5X8)

Note: (Optional). Use from Frame SN 1004953.

$1.99

$

Usually ships in 3-6 days

0

25

Honda 94305-25083

PIN, SPRING (2.5X8)

Note: (Optional). Use up to Frame SN 1004952.

$1.99

$

Usually ships in 3-6 days

0
