BF50 AY SRJA (BAZS) - Honda Marine Engine, Made in Japan (SN: BAZS-3200001 - BAZS-3209999) OIL PUMP Parts Diagram

Marine Engine, Made in Japan

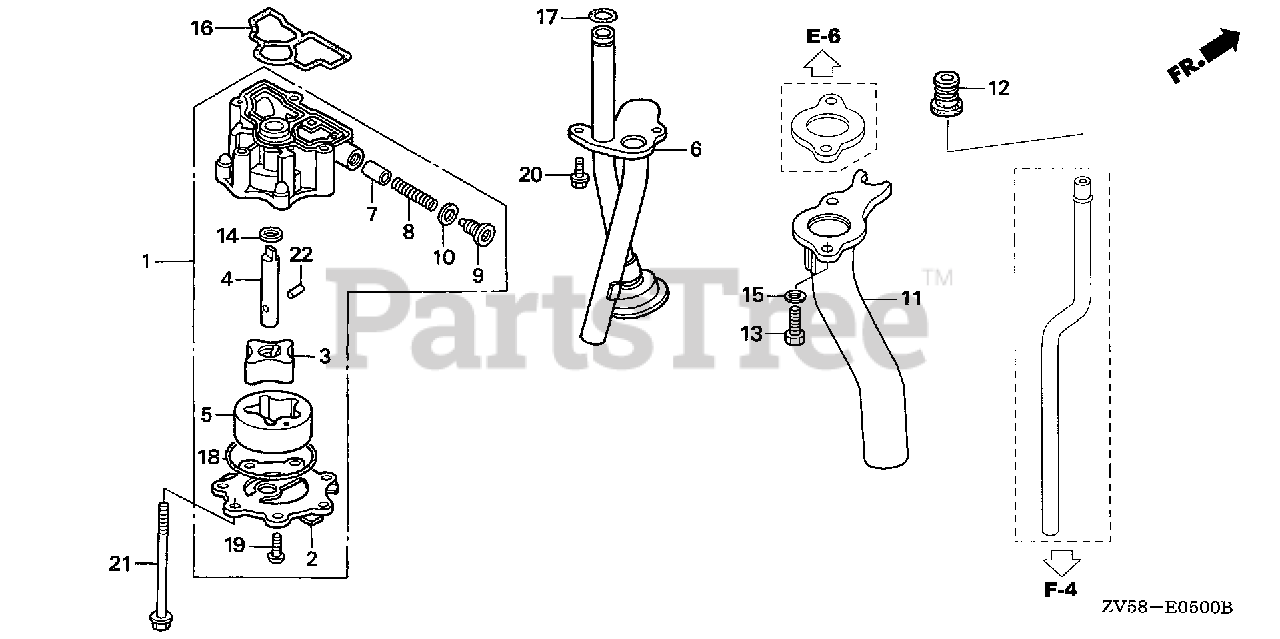

OIL PUMP Parts Diagram

  • Title
1

Honda 15100-ZV5-000

PUMP ASSY., OIL

$300.99

$

Usually ships in 3-6 days

0

2

Honda 15116-ZV5-000

COVER, OIL PUMP

$35.99

$

Usually ships in 3-6 days

0

3

Honda 15122-ME5-000

ROTOR (INNER)

$18.99

$

Usually ships in 3-6 days

0

4

Honda 15132-ZV5-000

SHAFT, OIL PUMP

$22.99

$

Usually ships in 3-6 days

0

5

Honda 15162-393-000

ROTOR A (OUTER)

$28.99

$

Usually ships in 3-6 days

0

6

Honda 15220-ZV5-000

STRAINER, OIL

$77.99

$

Usually ships in 3-6 days

0

7

Honda 15231-413-020

VALVE, RELIEF (Honda Code 0690453).

$28.99

$

Usually ships in 3-6 days

0

8

Honda 15232-KT8-000

SPRING, RELIEF VALVE

$5.49

$

Usually ships in 3-6 days

0

9

Honda 15236-ZV5-010

SEE PART DETAILS - PRI; BOLT, SEALING (14MM)

$6.49

$

Usually ships in 3-6 days

0

10

Honda 15302-PE0-300

WASHER, SEALING (14MM) (Honda Code 1600014).

$8.99

$

Usually ships in 3-6 days

0

11

$151.99

$

Usually ships in 3-6 days

0

12

Honda 19252-ZV5-000

GROMMET, WATER TUBE

$8.49

$

Usually ships in 3-6 days

0

13

Honda 90115-ZV5-000

BOLT, HEX. (8X25)

$4.99

$

Usually ships in 3-6 days

0

14

Honda 90456-MC7-000

WASHER, THRUST (12MM)

$3.49

$

Usually ships in 3-6 days

0

15

Honda 90507-ZV4-000

WASHER, PLAIN (8MM) Use up to Frame SN 4800712.

$2.99

$

Usually ships in 3-6 days

0

16

Honda 91301-ZV5-000

SEE PART DETAILS - SUP; O-RING, PUMP COVER
(Superseded to 91301-ZV5-010)

$6.49

$

Usually ships in 3-6 days

0

17

Honda 91303-377-000

O-RING (13.8X2.5)

$4.99

$

Usually ships in 3-6 days

0

18

Honda 91302-KF0-003

O-RING (54X2.4) (ARAI)

$4.99

$

In Stock, Qty 8

0

19

Honda 93500-06016-0B

SCREW, PAN (6X16)

$0.99

$

Usually ships in 3-6 days

0

20

Honda 95701-06016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16) Use from Engine SN 2056820.

$2.49

$

In Stock, only 1 left!

0

21

Honda 95701-06055-02

BOLT, FLANGE (6X55)

$2.49

$

Usually ships in 3-6 days

0

22

Honda 96220-50178

ROLLER (5X17.8)

$1.49

$

In Stock, only 1 left!

0
