BF50 AX LRA (BAZL) - Honda Marine Engine, Made in Japan (SN: BAZL-3000001 - BAZL-9999999) IGNITION COIL (2) Parts Diagram

Marine Engine, Made in Japan

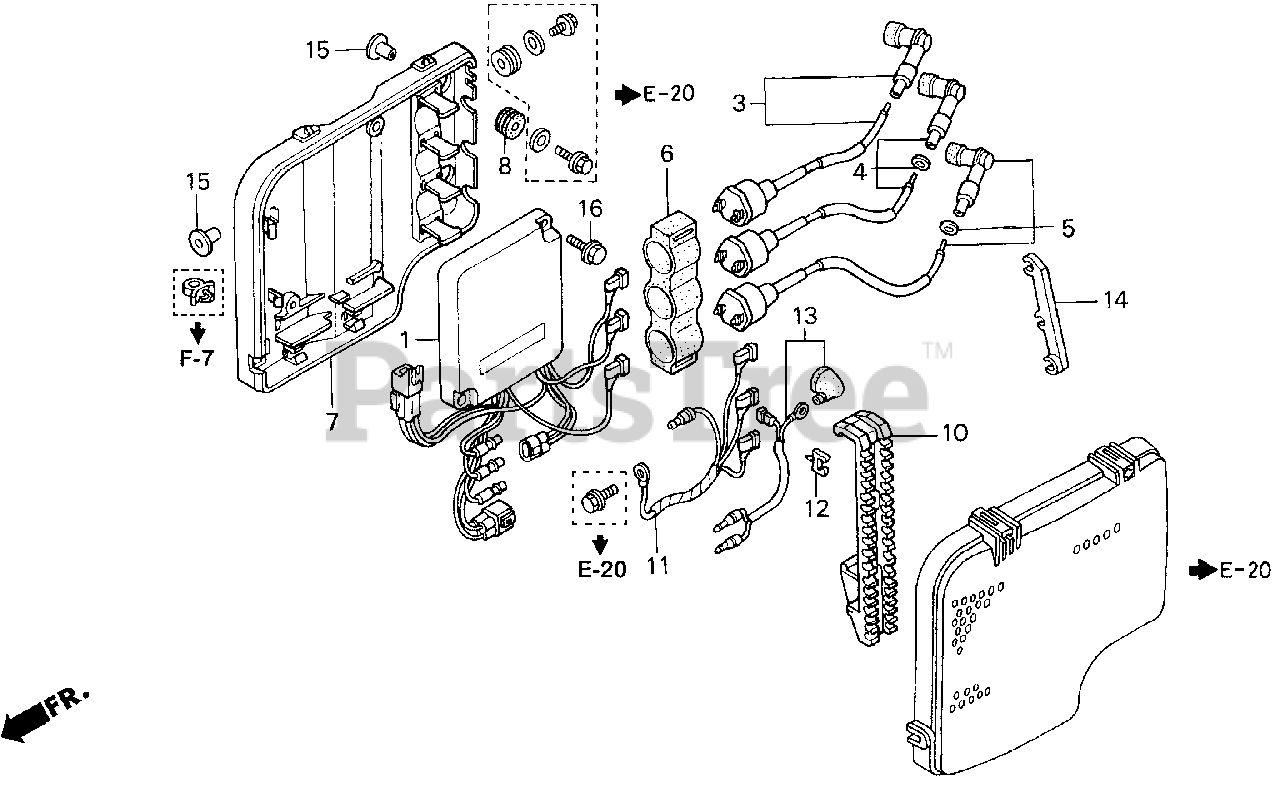

IGNITION COIL (2) Parts Diagram

  • Title

1

Honda 30580-ZV5-003

MODULE, IGNITION CONTROL (CDI)

$

$

Not available

3

Honda 30511-ZV5-003

COIL, IGNITION (1)

$59.99

$

Usually ships in 3-6 days

0

4

Honda 30512-ZV5-003

COIL, IGNITION (2)

$59.99

$

Usually ships in 3-6 days

0

5

Honda 30513-ZV5-003

COIL, IGNITION (3)

$59.99

$

Usually ships in 3-6 days

0

6

Honda 30516-ZV5-003

SUSPENSION, IGNITION COIL

$8.99

$

Usually ships in 3-6 days

0

7

Honda 30587-ZV5-003

CASE, IGNITION CONTROL MODULE

$48.99

$

Usually ships in 3-6 days

0

8

Honda 30598-ZV5-000

GROMMET, IGNITION CONTROL MODULE CASE (B)

$5.49

$

Usually ships in 3-6 days

0

10

Honda 32106-ZV5-010

SEE PART DETAILS - PRI; BRACKET, CONNECTOR (A)

$12.99

$

Usually ships in 3-6 days

0

11

Honda 32610-ZV5-000

WIRE ASSY., GROUND

$

$

Not available

12

Honda 32805-413-000

CLIP, TURN SIGNAL WIRE

$2.99

$

Usually ships in 3-6 days

0

13

Honda 37204-ZV5-000

WIRE, SWITCH

$26.99

$

Usually ships in 3-6 days

0

14

Honda 90601-ZV5-000

CLIP, IGNITION WIRE

$6.99

$

Usually ships in 3-6 days

0

15

Honda 91553-ZV5-000

SEE PART DETAILS - SUP; COLLAR, IGNITION CONTROL MODULE CASE
(Superseded to 91553-ZV5-010)

$3.99

$

Usually ships in 3-6 days

0

15

Honda 91553-ZV5-010

SEE PART DETAILS - PRI; COLLAR, MODULE IGNITION CONTROL CASE (CDI)

$3.99

$

Usually ships in 3-6 days

0

16

Honda 95701-06020-02

BOLT, FLANGE (6X20)

$1.49

$

Usually ships in 3-6 days

0
