BF50 AK0 LRTA (BAZS) - Honda Marine Engine, Made in Japan (SN: BAZS-3700001 - BAZS-3799999) TIMING BELT Parts Diagram

Marine Engine, Made in Japan

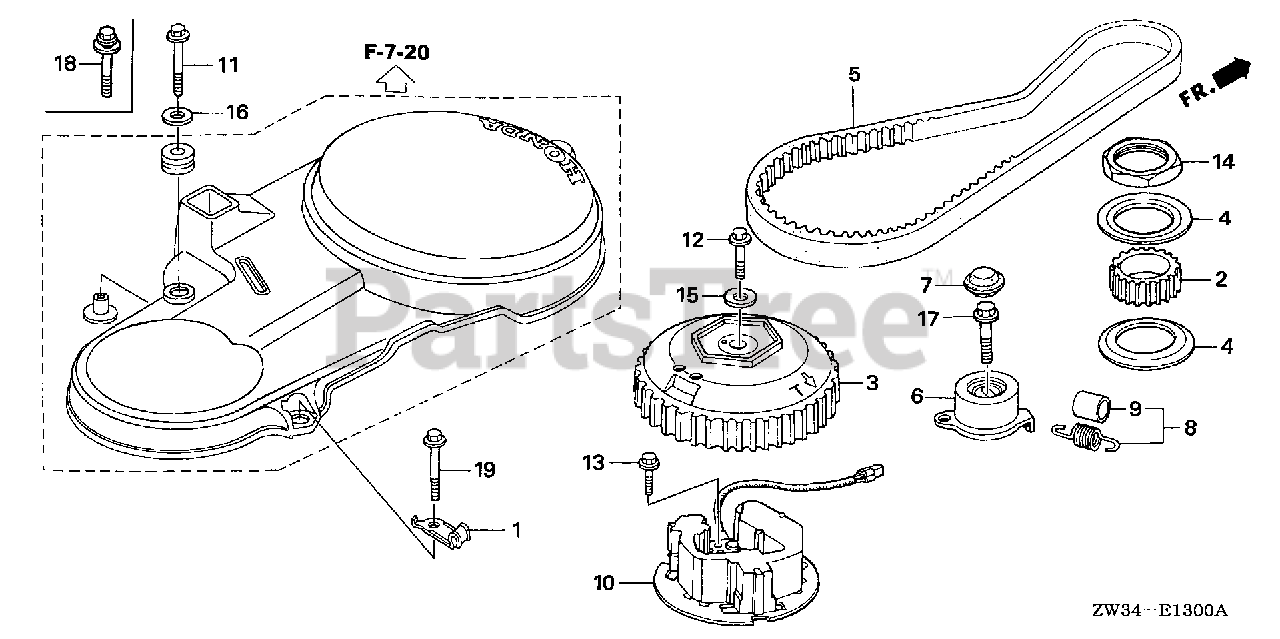

TIMING BELT Parts Diagram

  • Title

1

Honda 12328-ZV5-010

CLAMP, TUBE

$

$

Not available

2

Honda 14311-ZV5-000

PULLEY, TIMING

$89.99

$

Usually ships in 3-6 days

0

3

Honda 14320-ZW4-H00

PULLEY, CAMSHAFT

$

$

Not available

4

Honda 14323-ZV5-000

PLATE, TIMING BELT GUIDE

$14.99

$

Usually ships in 3-6 days

0

5

Honda 14400-ZV5-014

SEE PART DETAILS - PRI; BELT, TIMING

$125.99

$

Usually ships in 3-6 days

0

6

Honda 14510-ZV5-003

TENSIONER, TIMING BELT
(Superseded to 14510-ZV5-013)

$94.99

$

Usually ships in 3-6 days

0

7

Honda 14515-ZV5-000

CAP, TIMING BELT TENSIONER

$7.99

$

Usually ships in 3-6 days

0

8

Honda 14520-ZV5-020

SEE PART DETAILS - PRI; SPRING, TIMING BELT ADJUSTING

$5.99

$

Usually ships in 3-6 days

0

9

Honda 14522-ZV5-000

BOOT, SPRING

$2.99

$

Usually ships in 3-6 days

0

10

Honda 30400-ZV5-003

COIL ASSY., PULSER

$199.99

$

Usually ships in 3-6 days

0

12

Honda 90031-ZV5-010

BOLT, FLANGE (10X32)

$4.99

$

Usually ships in 3-6 days

0

13

Honda 90050-ZY3-000

BOLT, FLANGE (6X12)
(Superseded to 90050-ZZ5-M01)

$2.99

$

Usually ships in 3-6 days

0

14

Honda 90202-ZV5-000

NUT, LOCK (48MM)

$30.99

$

Usually ships in 3-6 days

0

15

Honda 90435-ZV5-010

SEE PART DETAILS - PRI; WASHER (10X28X5)
(Superseded to 90435-ZZ5-M00)

$4.99

$

Usually ships in 3-6 days

0

17

Honda 95701-10038-08

BOLT, FLANGE (10X38)

$2.99

$

Usually ships in 3-6 days

0

18

Honda 90013-ZW1-000

BOLT-WASHER (6X25)

$3.49

$

Usually ships in 3-6 days

0

19

Honda 90016-ZW9-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X25)
(Superseded to 90014-ZZ5-M01)

$2.99

$

Usually ships in 3-6 days

0
