BF50 AK0 LRTA (BAZS) - Honda Marine Engine, Made in Japan (SN: BAZS-3700001 - BAZS-3799999) REGULATOR Parts Diagram

Marine Engine, Made in Japan

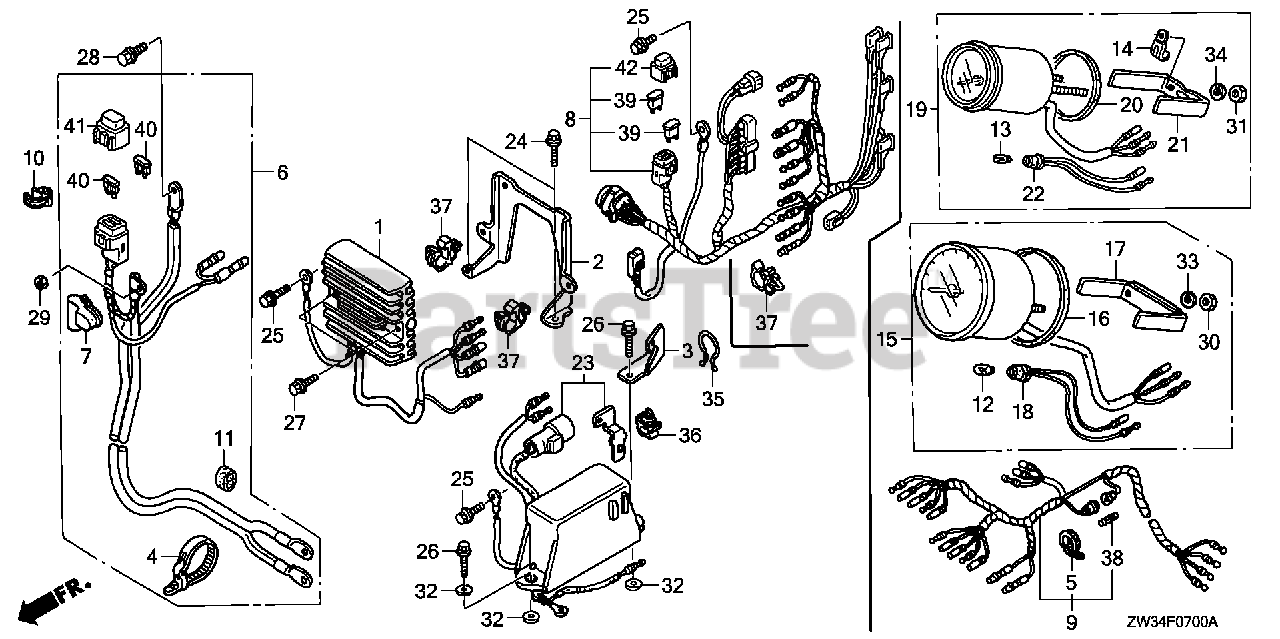

REGULATOR Parts Diagram

  • Title

1

Honda 31750-ZW4-003

RECTIFIER ASSY., REGULATOR (12A)

Note: Use up to Frame SN 3701033.

$

$

Not available

1

Honda 31750-ZW4-013

RECTIFIER ASSY., REGULATOR (12A)

Note: Use from Frame SN 3701034.

$

$

Not available

2

Honda 31604-ZW4-H00

BRACKET, REGULATOR

$31.99

$

Usually ships in 3-6 days

0

3

Honda 32114-ZV5-821

BRACKET, HARNESS CLIP

$12.99

$

Usually ships in 3-6 days

0

4

Honda 32121-HA0-003

BAND, WIRE

$10.99

$

Usually ships in 3-6 days

0

5

Honda 32161-404-000

SEE PART DETAILS - PRI; BAND B1, CABLE Use up to Frame SN 1001879.

$2.99

$

In Stock, only 4 left!

0

6

Honda 32410-ZW4-H10

CABLE ASSY., STARTER (PTT)

$

$

Not available

7

Honda 32411-ZV5-003

COVER, TERMINAL

$7.99

$

Usually ships in 3-6 days

0

8

Honda 32520-ZW4-H11

CABLE ASSY., REMOTE CONTROL (A)

Note: Use up to Frame SN 3701033.

$

$

Not available

8

Honda 32520-ZW4-H12

CABLE ASSY., REMOTE CONTROL (A)

Note: Use from Frame SN 3701034.

$

$

Not available

9

Honda 32540-ZV5-911

HARNESS ASSY., METER (A)

$60.99

$

Usually ships in 3-6 days

0

10

Honda 32660-MJ6-710

CLAMP, WIRE

$4.99

$

In Stock, only 1 left!

0

11

Honda 32903-701-000

CLAMP, IGNITION WIRE

$2.49

$

Usually ships in 3-6 days

0

23

Honda 38550-ZV5-823

RELAY ASSY., POWER TILT

$

$

Not available

24

Honda 90013-ZV0-010

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200)

$2.49

$

In Stock, only 3 left!

0

25

Honda 90013-ZW4-000

BOLT, FLANGE (6X12) (CT200)

$3.49

$

Usually ships in 3-6 days

0

26

Honda 90017-ZV0-C10

BOLT, FLANGE (6X18) (CT200)
(Superseded to 90104-ZZ5-M01)

$2.49

$

Usually ships in 3-6 days

0

27

Honda 90018-ZW5-000

BOLT, FLANGE (6X20)

$2.49

$

Usually ships in 3-6 days

0

28

Honda 90107-ZW4-000

BOLT, FLANGE (8X12)

$

$

Not available

29

Honda 90203-ZV5-000

NUT, HEX. (6MM)

$2.49

$

Usually ships in 3-6 days

0

32

Honda 90403-ZW1-000

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$2.49

$

Usually ships in 3-6 days

0

35

Honda 90630-751-000

SEE PART DETAILS - PRI; CLIP, PURSE LOCK

$2.49

$

Usually ships in 3-6 days

0

36

Honda 90659-735-921

CLIP, CORD

$3.49

$

Usually ships in 3-6 days

0

37

Honda 90682-ZV5-003

CLIP, WIRE HARNESS

$2.49

$

Usually ships in 3-6 days

0

38

Honda 98200-11000

SEE PART DETAILS - PRI; FUSE A (10A)

$1.49

$

In Stock, only 1 left!

0

39

Honda 98200-31000

FUSE, BLADE (10A)

$1.99

$

Usually ships in 3-6 days

0

40

Honda 98200-31500

FUSE, BLADE (15A) (Honda Code 1644244).

$1.99

$

In Stock, Qty 6

0

41

Honda 38216-ZV5-003

COVER ASSY., FUSE (15A)

$5.49

$

Usually ships in 3-6 days

0

42

Honda 38218-ZW5-004

COVER ASSY., FUSE (10A)

$7.99

$

Usually ships in 3-6 days

0
