BF50 A6 LRTA (BAZS) - Honda Marine Engine, Made in Japan (SN: BAZS-3600001 - BAZS-3699999) THROTTLE ROD Parts Diagram

Marine Engine, Made in Japan

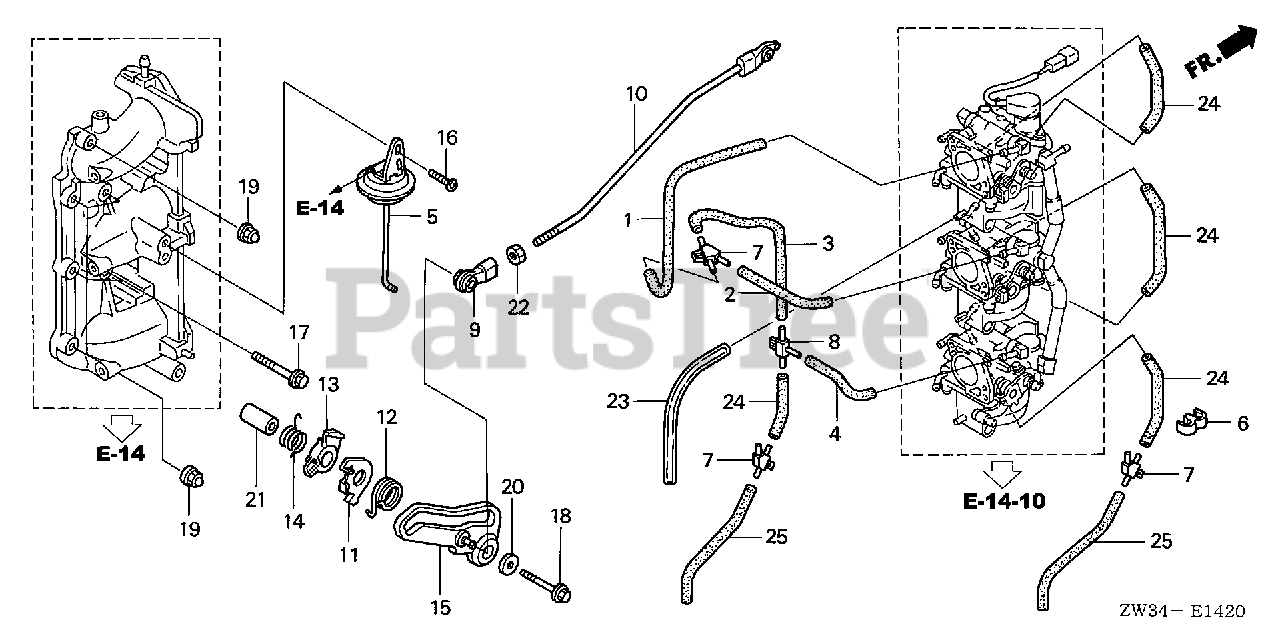

THROTTLE ROD Parts Diagram

  • Title
1

Honda 16196-ZW4-H00

TUBE A, AIR VENT

$4.49

$

Usually ships in 3-6 days

0

2

Honda 16197-ZW4-H00

TUBE B, AIR VENT

$3.49

$

Usually ships in 3-6 days

0

3

Honda 16198-ZW4-H00

TUBE C, AIR VENT

$3.99

$

Usually ships in 3-6 days

0

4

Honda 16199-ZW4-H00

TUBE D, AIR VENT

$3.99

$

Usually ships in 3-6 days

0

5

Honda 16240-ZW4-H01

DIAPHRAGM ASSY.

$70.99

$

Usually ships in 3-6 days

0

6

Honda 17205-PC6-000

CLAMP, TUBE (7.5X2)

$11.99

$

Usually ships in 3-6 days

0

7

Honda 17396-ZW1-000

JOINT, THREE WAY

$6.99

$

Usually ships in 3-6 days

0

8

Honda 17396-ZW4-H00

JOINT, THREE WAY

$6.99

$

Usually ships in 3-6 days

0

9

Honda 17838-ZV5-000

LINKAGE, PIVOT

$10.99

$

Usually ships in 3-6 days

0

10

Honda 17840-ZV5-000

ROD, THROTTLE

$

$

Not available

11

Honda 17927-ZV5-000

PLATE, ASSIST

$8.99

$

Usually ships in 3-6 days

0

12

Honda 17928-ZV5-000

SPRING, ASSIST

$4.49

$

Usually ships in 3-6 days

0

13

Honda 17937-ZV5-010

CAM, THROTTLE OPENER

$8.99

$

Usually ships in 3-6 days

0

14

Honda 17938-ZV5-000

SPRING, OPENER CAM RETURN

$3.99

$

Usually ships in 3-6 days

0

15

Honda 17946-ZV5-000

CAM, THROTTLE

$20.99

$

Usually ships in 3-6 days

0

16

Honda 90011-ZV5-003

BOLT, TORX (6X14)

$2.49

$

Usually ships in 3-6 days

0

17

Honda 90031-ZY3-000

BOLT, FLANGE (6X32)

$1.49

$

Usually ships in 3-6 days

0

18

Honda 90145-ZW4-000

BOLT, FLANGE (6X40)
(Superseded to 90045-ZZ5-M01)

$2.49

$

Usually ships in 3-6 days

0

19

Honda 90202-ZV0-000

NUT, CAP (6MM)

$3.99

$

Usually ships in 3-6 days

0

20

Honda 90512-ZV4-000

WASHER, PLAIN (6MM)

$4.49

$

Usually ships in 3-6 days

0

21

Honda 91504-ZV5-000

COLLAR (6.7X12.5X24)

$11.99

$

Usually ships in 3-6 days

0

22

Honda 94001-05490-0S

NUT, HEX. (5MM)

$1.49

$

Usually ships in 3-6 days

0

23

Honda 95003-09001-60M

BULK HOSE, VINYL (4.5X8X1000) (4.5X8X160)

$5.49

$

Usually ships in 3-6 days

0

24

Honda 95005-45001-50M

BULK HOSE, VACUUM (4.5X1000) (4.5X93)

$10.99

$

Usually ships in 3-6 days

0

25

Honda 95005-45001-50M

BULK HOSE, VACUUM (4.5X1000) (4.5X170)

$10.99

$

Usually ships in 3-6 days

0
