BF50 A6 LRTA (BAZS) - Honda Marine Engine, Made in Japan (SN: BAZS-3600001 - BAZS-3699999) OIL PAN Parts Diagram

Marine Engine, Made in Japan

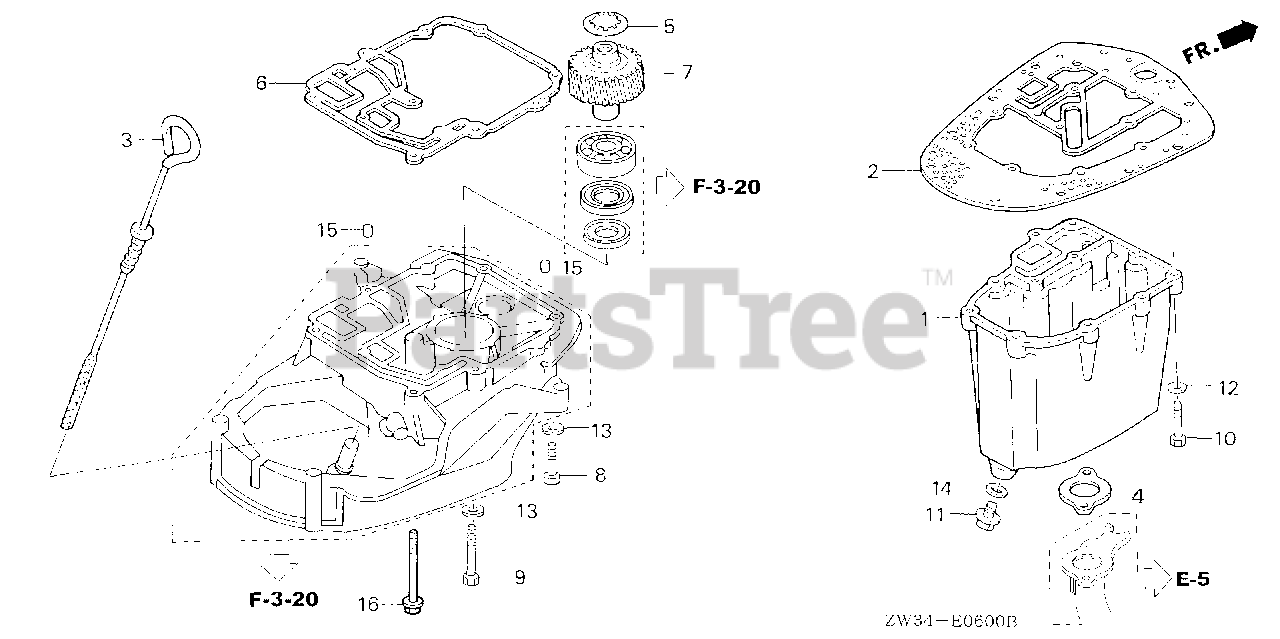

OIL PAN Parts Diagram

  • Title

1

Honda 11311-ZV5-030ZA

PAN, OIL *TGRAY* (GRAY)
(Superseded to 11311-ZV5-040ZA)

$165.99

$

Usually ships in 3-6 days

0

2

Honda 11381-ZV5-004

GASKET, OIL PAN

$57.99

$

Usually ships in 3-6 days

0

3

Honda 15650-ZV5-000

DIPSTICK, OIL

$19.99

$

Usually ships in 3-6 days

0

4

Honda 18291-ZV5-010

GASKET, EX. PIPE

$3.99

$

Usually ships in 3-6 days

0

5

Honda 23134-ZV5-000

SPRING, THRUST

$5.49

$

Usually ships in 3-6 days

0

6

Honda 23162-ZV5-024

SEE PART DETAILS - PRI; GASKET, PRIMARY GEAR CASE

$37.99

$

Usually ships in 3-6 days

0

7

Honda 23437-ZV5-000

GEAR, PRIMARY DRIVEN (33T)

$201.99

$

Usually ships in 3-6 days

0

8

Honda 90009-ZV5-000

BOLT, HEX. (8X35)

$5.49

$

Usually ships in 3-6 days

0

9

Honda 90010-ZV5-000

BOLT, HEX. (8X55)

$6.49

$

Usually ships in 3-6 days

0

10

Honda 90113-ZV5-000

BOLT, HEX. (6X25)

$3.49

$

Usually ships in 3-6 days

0

11

Honda 90131-ZV5-000

BOLT, DRAIN PLUG

$10.99

$

Usually ships in 3-6 days

0

12

Honda 90506-ZV4-000

WASHER, PLAIN (6MM)

$3.49

$

Usually ships in 3-6 days

0

13

Honda 90507-ZV4-000

WASHER, PLAIN (8MM)

$2.99

$

Usually ships in 3-6 days

0

14

Honda 90601-ZE2-000

WASHER, DRAIN PLUG (12MM)

$3.49

$

Usually ships in 3-6 days

0

15

Honda 94303-06100

PIN, DOWEL (6X10)

$2.99

$

Usually ships in 3-6 days

0

16

Honda 95701-08075-08

BOLT, FLANGE (8X75)

$3.99

$

Usually ships in 3-6 days

0
