BF50 A6 LHTA (BAZS) - Honda Marine Engine, Made in Japan (SN: BAZS-3600001 - BAZS-3699999) WATER PUMP Parts Diagram

Marine Engine, Made in Japan

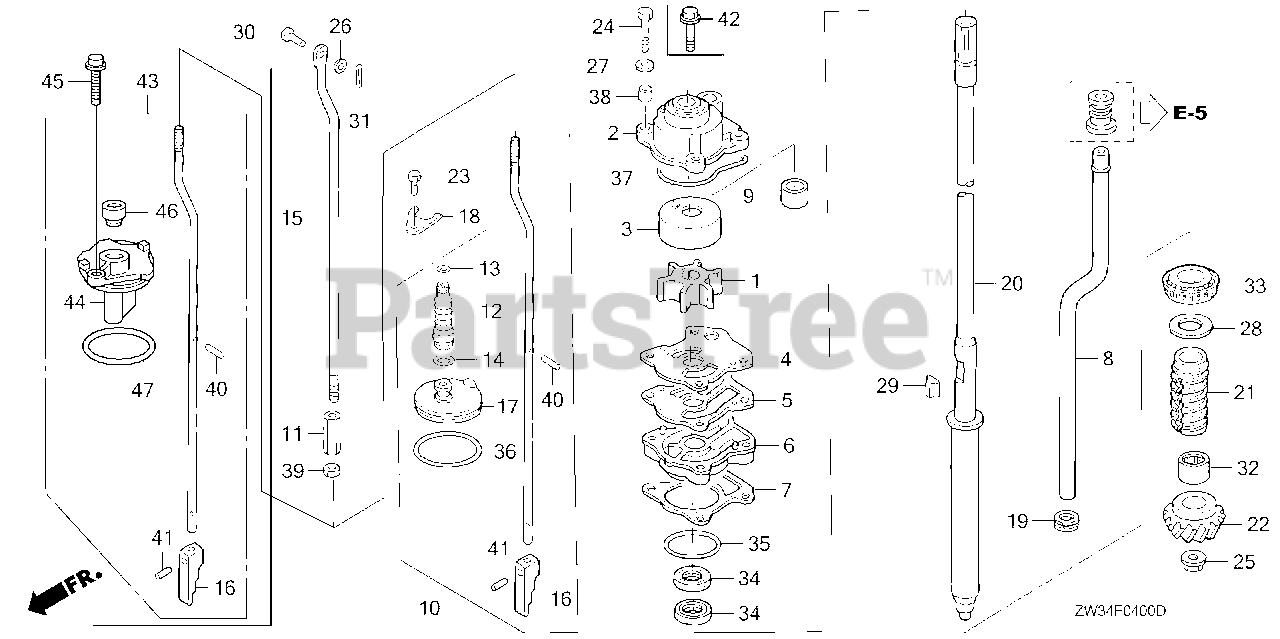

WATER PUMP Parts Diagram

  • Title

1

Honda 19210-ZV5-003

IMPELLER, PUMP

$33.99

$

In Stock, only 1 left!

0

2

Honda 19221-ZV5-000

HOUSING, IMPELLER

$34.99

$

In Stock, only 1 left!

0

3

Honda 19223-ZV5-000

LINER, PUMP

$18.99

$

Usually ships in 3-6 days

0

4

Honda 19231-ZV5-000

COVER, IMPELLER

$15.99

$

In Stock, only 1 left!

0

5

Honda 19233-ZV5-000

GASKET B, IMPELLER

$8.99

$

In Stock, only 1 left!

0

6

Honda 19241-ZV5-000

HOUSING, WATER PUMP

$34.99

$

Usually ships in 3-6 days

0

7

Honda 19242-ZV5-000

GASKET, WATER PUMP

$8.99

$

Usually ships in 3-6 days

0

8

Honda 19251-ZV5-701

SEE PART DETAILS - PRI; TUBE, WATER (L)

$55.99

$

Usually ships in 3-6 days

0

9

Honda 19253-ZV5-000

RING, WATER TUBE SEAL

$5.99

$

Usually ships in 3-6 days

0

10

Honda 24310-ZV5-701

ROD, SHIFT (L)
(Superseded to 04402-ZW4-700)

$562.99

$

Usually ships in 3-6 days

0

11

Honda 24312-ZV5-000

JOINT, SHIFT ROD

$20.99

$

Usually ships in 3-6 days

0

12

Honda 24313-ZV5-000

GROMMET, SHIFT ROD

$10.99

$

Usually ships in 3-6 days

0

13

Honda 24316-ZV5-000

BAND A, GROMMET

$3.99

$

In Stock, only 1 left!

0

14

Honda 24317-ZV5-000

BAND B, GROMMET

$3.99

$

Usually ships in 3-6 days

0

15

Honda 24320-ZV5-000

ROD A, SHIFT

$41.99

$

Usually ships in 3-6 days

0

16

Honda 24341-ZV5-701

SEE PART DETAILS - PRI; ROD, PUSH

$78.99

$

Usually ships in 3-6 days

0

17

Honda 24343-ZV5-700

HOLDER, SEAL

$15.99

$

Usually ships in 3-6 days

0

18

Honda 24344-ZV5-000

PLATE, SEAL HOLDER SETTING

$

$

Not available

19

Honda 40204-ZV5-000

GROMMET, EXTENSION CASE

$4.49

$

Usually ships in 3-6 days

0

20

Honda 41112-ZV5-701

SHAFT, VERTICAL (L)

$565.99

$

Usually ships in 3-6 days

0

21

Honda 41116-ZV5-000

SLINGER, OIL

$15.99

$

Usually ships in 3-6 days

0

22

Honda 41131-ZV5-000

GEAR, PINION

$145.99

$

Usually ships in 3-6 days

0

23

Honda 90105-881-000

BOLT, HEX. (6X12)

$2.99

$

Usually ships in 3-6 days

0

24

Honda 90114-881-000

BOLT, HEX. (6X40)

$4.49

$

Usually ships in 3-6 days

0

25

Honda 90303-ZV5-000

NUT, SPECIAL (12MM)

$8.99

$

Usually ships in 3-6 days

0

26

Honda 90452-GK4-600

WASHER, PLAIN (5MM)

$1.99

$

Usually ships in 3-6 days

0

27

Honda 90512-921-010

WASHER (6MM)

$1.49

$

Usually ships in 3-6 days

0

28

Honda 90518-ZV5-000

SHIM, GEAR (40X46X0.10) (A)

$8.49

$

Usually ships in 3-6 days

0

28

Honda 90519-ZV5-000

SHIM, GEAR (40X46X0.15) (B)

$8.49

$

Usually ships in 3-6 days

0

28

Honda 90520-ZV5-000

SHIM, GEAR (40X46X0.30) (C)

$8.49

$

Usually ships in 3-6 days

0

28

Honda 90521-ZV5-000

SHIM, GEAR (40X46X0.50) (D)

$8.49

$

Usually ships in 3-6 days

0

29

Honda 90752-ZV5-003

KEY, WOODRUFF

$9.99

$

Usually ships in 3-6 days

0

30

Honda 90754-921-010

PIN (5X17)

$11.99

$

Usually ships in 3-6 days

0

31

Honda 90756-921-000

PIN, SPLIT (1.6MM)

$1.99

$

In Stock, Qty 5

0

32

Honda 91052-ZV5-003

BEARING, NEEDLE (7/8X11/8X1)

$39.99

$

Usually ships in 3-6 days

0

33

Honda 91054-ZV5-003

BEARING (25X47X15)

$40.99

$

Usually ships in 3-6 days

0

34

Honda 91251-ZV5-003

SEAL, WATER (17X30X7)

$9.49

$

Usually ships in 3-6 days

0

35

Honda 91351-740-003

O-RING (41.7X3.5)

$2.99

$

In Stock, only 2 left!

0

36

Honda 91353-ZV5-003

O-RING (47X3.1)

$3.99

$

In Stock, only 1 left!

0

37

Honda 91356-ZV5-000

O-RING, WATER PUMP

$5.49

$

Usually ships in 3-6 days

0

38

Honda 91555-ZV5-000

COLLAR, IMPELLER HOUSING

$5.49

$

Usually ships in 3-6 days

0

39

Honda 94002-08490-0S

NUT, HEX. (8MM)

$1.99

$

Usually ships in 3-6 days

0

40

Honda 94305-20122

PIN, SPRING (2X12)

$2.49

$

In Stock, Qty 5

0

41

Honda 96220-30148

ROLLER (3X14.8)

$0.99

$

Usually ships in 3-6 days

0
