BF50 A5 SRJA (BAZS) - Honda Marine Engine, Made in Japan (SN: BAZS-3500001 - BAZS-3599999) IGNITION COIL Parts Diagram

Marine Engine, Made in Japan

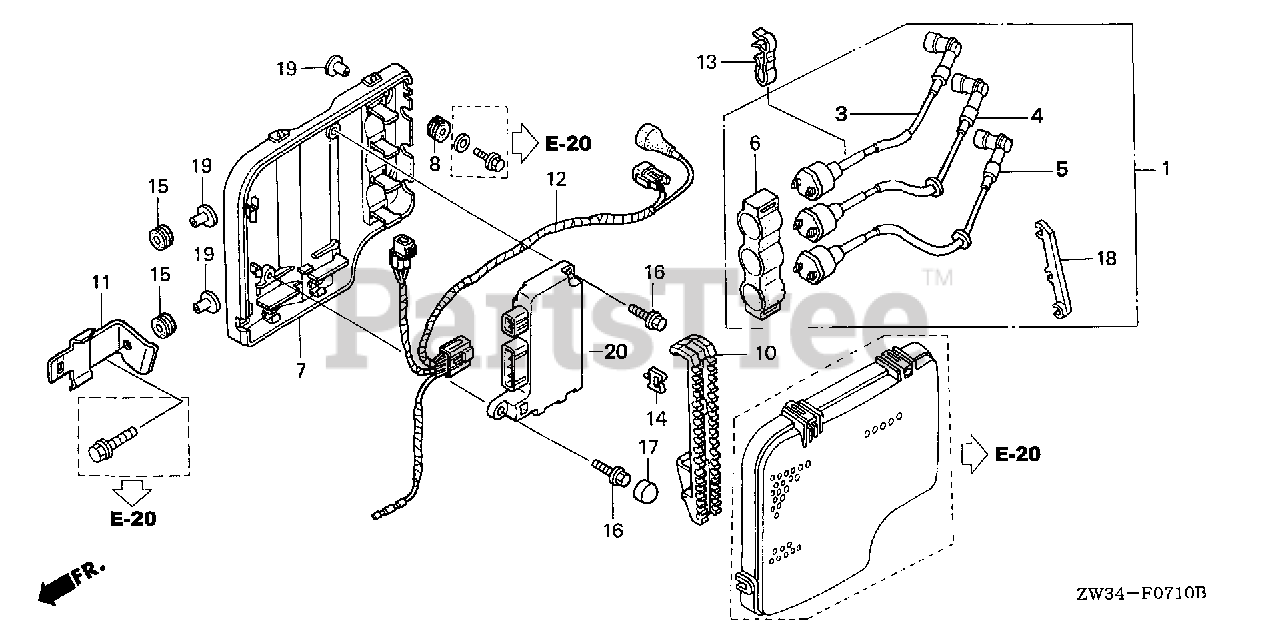

IGNITION COIL Parts Diagram

  • Title

1

Honda 30500-ZW4-H01

COIL ASSY., IGNITION

$

$

Not available

3

Honda 30511-ZV5-003

COIL, IGNITION (1)

$

$

Not available

4

Honda 30512-ZV5-003

COIL, IGNITION (2)

$

$

Not available

5

Honda 30513-ZV5-003

COIL, IGNITION (3)

$64.99

$

Usually ships in 3-6 days

0

6

Honda 30516-ZV5-003

SUSPENSION, IGNITION COIL

$9.49

$

Usually ships in 3-6 days

0

7

Honda 30587-ZV5-003

CASE, IGNITION CONTROL MODULE (CDI)

$

$

Not available

8

Honda 30598-ZV5-000

GROMMET, MODULE IGNITION CONTROL CASE (CDI)(B)

$5.49

$

Usually ships in 3-6 days

0

10

Honda 32106-ZV5-010

BRACKET, CONNECTOR (A)

$13.99

$

Usually ships in 3-6 days

0

11

Honda 32113-ZW4-H00

BRACKET, FUSE

$28.99

$

Usually ships in 3-6 days

0

12

Honda 32160-ZW4-H11

CABLE ASSY., IGNITION CONTROL MODULE (CDI)

$85.99

$

Usually ships in 3-6 days

0

13

Honda 32765-PA1-730

CLAMP, WIRE

Note: Use up to Frame SN 3502075.

$

$

Not available

14

Honda 32805-413-000

CLIP, TURN SIGNAL WIRE

$3.49

$

Usually ships in 3-6 days

0

15

Honda 40102-ZV5-000

GROMMET, CASE (LOWER)

$3.99

$

Usually ships in 3-6 days

0

16

Honda 90018-ZW5-000

BOLT, FLANGE (6X20)

$2.49

$

Usually ships in 3-6 days

0

17

Honda 90082-ZW4-H01

CAP, BOLT (6MM)

$4.99

$

Usually ships in 3-6 days

0

18

Honda 90601-ZV5-000

CLIP, HIGH TENSION CORD

$7.49

$

Usually ships in 3-6 days

0

19

Honda 91553-ZV5-010

SEE PART DETAILS - PRI; COLLAR, MODULE IGNITION CONTROL CASE (CDI)

$3.99

$

Usually ships in 3-6 days

0

20

Honda 30400-ZW4-H03

MODULE, IGNITION CONTROL (CDI)

$

$

Not available
