BF50 A5 LHTA (BAZS) - Honda Marine Engine, Made in Japan (SN: BAZS-3500001 - BAZS-3599999) CARBURETOR Parts Diagram

Marine Engine, Made in Japan

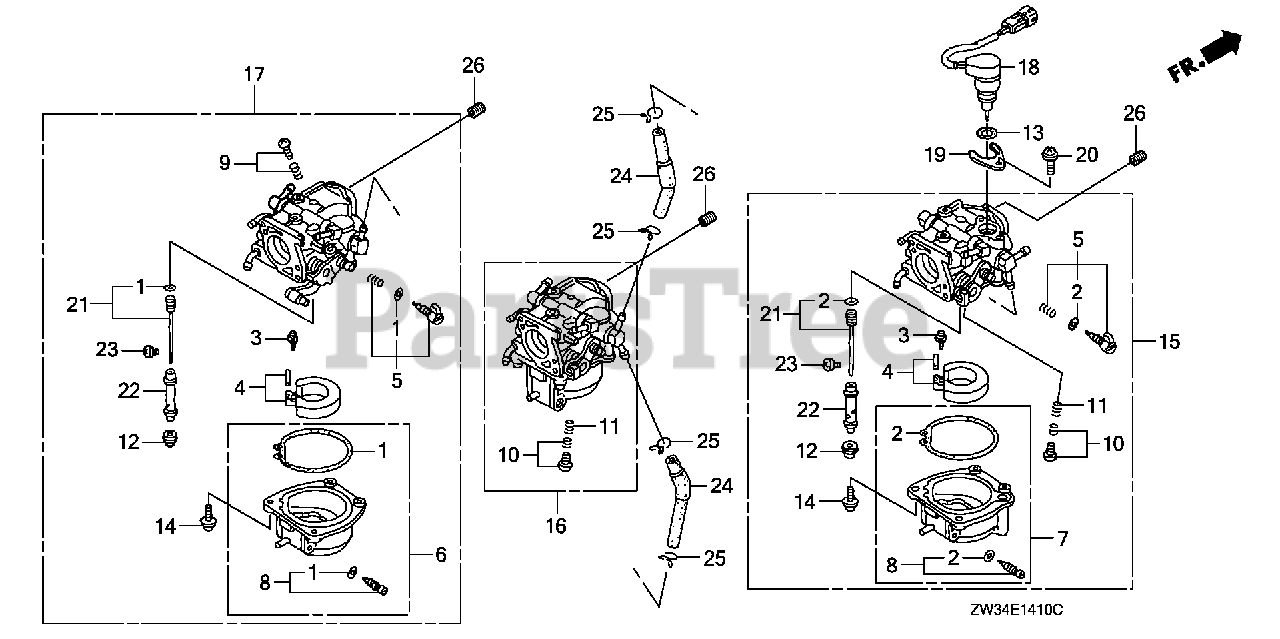

CARBURETOR Parts Diagram

  • Title

1

Honda 16010-ZV4-005

GASKET SET

$21.99

$

In Stock, only 2 left!

0

2

Honda 16010-ZW4-H01

GASKET SET

$19.99

$

Usually ships in 3-6 days

0

3

Honda 16011-ZV4-005

VALVE SET, FLOAT

$43.99

$

In Stock, only 2 left!

0

4

Honda 16013-ZW4-H01

FLOAT SET

$44.99

$

Usually ships in 3-6 days

0

5

Honda 16016-ZW4-D21

SCREW SET (CARBURETOR NO.)

$11.99

$

Usually ships in 3-6 days

0

6

Honda 16023-ZV3-000

CHAMBER SET, FLOAT

$94.99

$

Usually ships in 3-6 days

0

7

Honda 16023-ZW4-H01

CHAMBER SET, FLOAT (CARBURETOR NO.)

$

$

Not available

8

Honda 16024-881-A00

SEE PART DETAILS - SUP; SCREW SET, DRAIN
(Superseded to 16024-ZY3-000)

$17.99

$

Usually ships in 3-6 days

0

9

Honda 16028-ZV3-000

SCREW SET

$13.99

$

Usually ships in 3-6 days

0

10

Honda 16029-ZV3-000

SCREW SET

$14.99

$

Usually ships in 3-6 days

0

11

Honda 16052-KG4-003

SPRING, COMPRESSION COIL

$8.99

$

Usually ships in 3-6 days

0

12

Honda 16071-ZV4-005

SCREW, PLUG

$9.49

$

Usually ships in 3-6 days

0

13

Honda 16077-KG8-901

O-RING, BYSTARTER

$4.49

$

Usually ships in 3-6 days

0

14

Honda 16081-ZV4-650

SCREW-WASHER

$4.99

$

Usually ships in 3-6 days

0

15

Honda 16101-ZW4-F03

SEE PART DETAILS - PRI; CARBURETOR ASSY. (#1) (CARBURETOR NO.)

$

$

Not available

16

Honda 16102-ZW4-F02

SEE PART DETAILS - PRI; CARBURETOR ASSY. (#2) (CARBURETOR NO.)

$

$

Not available

17

Honda 16103-ZW4-F02

SEE PART DETAILS - PRI; CARBURETOR ASSY. (#3) (CARBURETOR NO.)

$297.99

$

Usually ships in 3-6 days

0

18

Honda 16130-ZW4-H01

BYSTARTER ASSY., AUTO (CARBURETOR NO.)

$78.99

$

Usually ships in 3-6 days

0

19

Honda 16131-ZW9-801

PLATE, SETTING

$4.49

$

Usually ships in 3-6 days

0

20

Honda 16132-ZW9-801

SCREW-WASHER

$2.49

$

Usually ships in 3-6 days

0

21

Honda 16150-ZW4-H02

SEE PART DETAILS - PRI; JET SET (#45) (CARBURETOR NO.)

$39.99

$

Usually ships in 3-6 days

0

22

Honda 16166-ZW4-000

NOZZLE, MAIN (CARBURETOR NO.)

$36.99

$

Usually ships in 3-6 days

0

23

Honda 99101-ZV5-1300

JET, MAIN (#130) (CARBURETOR NO.)

Note: (Optional).

$8.49

$

Usually ships in 3-6 days

0

23

Honda 99101-ZV5-1320

JET, MAIN (#132) (CARBURETOR NO.)

Note: (Optional).

$10.99

$

Usually ships in 3-6 days

0

23

Honda 99102-ZW1-1350

JET, MAIN (#135) (CARBURETOR NO.)

$

$

Not available

24

Honda 16133-ZW4-H01

TUBE

$6.99

$

Usually ships in 3-6 days

0

25

Honda 90604-ZV0-000

CLIP, TUBE (B12)

$2.49

$

Usually ships in 3-6 days

0
