BF50 A4 XRTA (BAZS) - Honda Marine Engine, Made in Japan (SN: BAZS-3400001 - BAZS-3499999) PROPELLER + PROPELLER SHAFT Parts Diagram

Marine Engine, Made in Japan

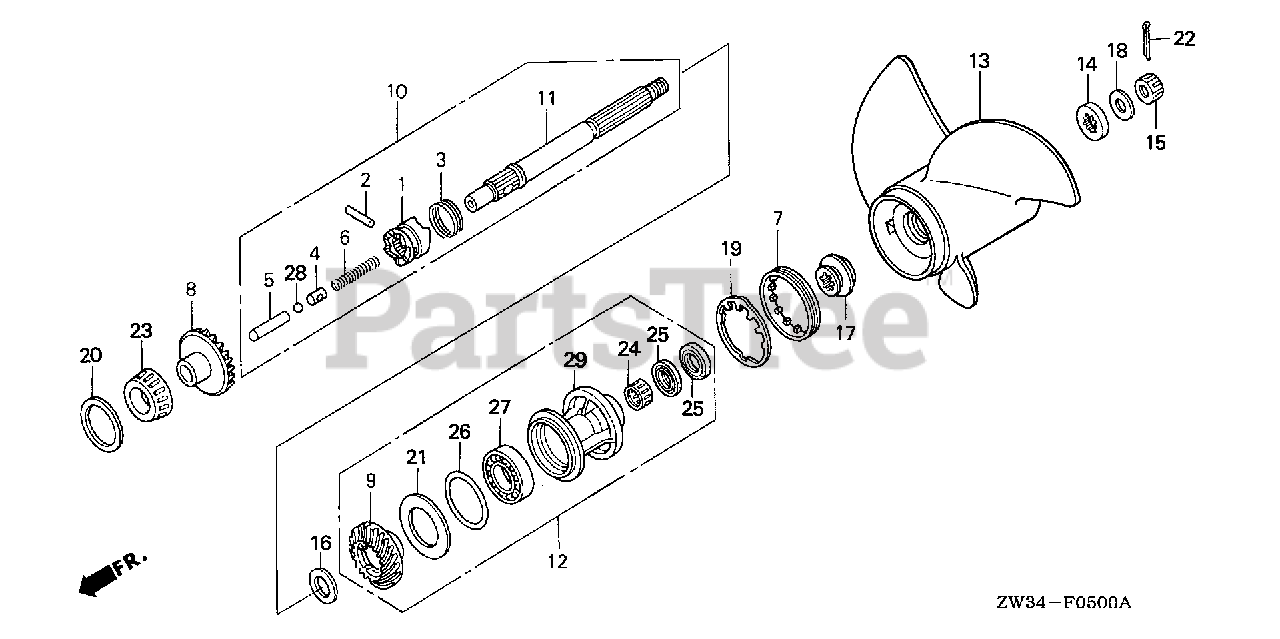

PROPELLER + PROPELLER SHAFT Parts Diagram

  • Title

1

Honda 24101-ZV5-000

SHIFTER, CLUTCH

Note: Use up to Frame SN 3403851.

$

$

Not available

1

Honda 24101-ZV5-010

SEE PART DETAILS - SUP; SHIFTER, CLUTCH
(Superseded to 24101-ZV5-020)

Note: Use from Frame SN 3403852.

$79.99

$

Usually ships in 3-6 days

0

1

Honda 24101-ZV5-020

SEE PART DETAILS - PRI; SHIFTER, CLUTCH

Note: Use from Frame SN 3403852.

$79.99

$

Usually ships in 3-6 days

0

2

Honda 24102-ZV5-000

PIN, SHIFTER (6.3X33)

$4.49

$

Usually ships in 3-6 days

0

3

Honda 24103-ZV5-000

RING, CROSS PIN

$2.49

$

Usually ships in 3-6 days

0

4

Honda 24106-ZV5-000

HOLDER, SHIFTER PIN

$10.99

$

Usually ships in 3-6 days

0

5

Honda 24122-ZV5-000

SLIDER, SHIFT

$14.99

$

Usually ships in 3-6 days

0

6

Honda 24123-ZV5-003

SPRING, SHIFT

$5.99

$

Usually ships in 3-6 days

0

7

Honda 41109-ZV5-000

NUT, GEAR CASE END

$21.99

$

Usually ships in 3-6 days

0

8

Honda 41145-ZV5-000

GEAR, FR. BEVEL

Note: Use up to Frame SN 3403851.

$225.99

$

Usually ships in 3-6 days

0

8

Honda 41145-ZV5-020

GEAR, FR. BEVEL

Note: Use from Frame SN 3403852.

$178.99

$

Usually ships in 3-6 days

0

9

Honda 41151-ZV5-000

SEE PART DETAILS - SUP; GEAR, RR. BEVEL
(Superseded to 41151-ZV5-010)

$207.99

$

Usually ships in 3-6 days

0

10

Honda 06410-ZW4-305

SEE PART DETAILS - PRI; SHAFT ASSY., PROPELLER

Note: Use up to Frame SN 3403851.

$437.99

$

Usually ships in 3-6 days

0

10

Honda 41160-ZV5-020

SHAFT ASSY., PROPELLER

Note: Use from Frame SN 3403852.

$

$

Not available

11

Honda 41161-ZV5-010

SHAFT, PROPELLER

$

$

Not available

12

Honda 41200-ZV5-030

HOLDER ASSY., PROPELLER SHAFT

$317.99

$

Usually ships in 3-6 days

0

14

Honda 58151-ZV5-000

SPACER (10MM)

$34.99

$

Usually ships in 3-6 days

0

15

Honda 90301-ZV5-000

NUT, CASTLE (16MM)

$16.99

$

Usually ships in 3-6 days

0

16

Honda 90503-ZV5-000

WASHER (22MM)

$7.99

$

Usually ships in 3-6 days

0

17

Honda 90506-ZV5-000

SEE PART DETAILS - SUP; WASHER, PROPELLER THRUST
(Superseded to 90506-ZZ5-C00)

$55.99

$

Usually ships in 3-6 days

0

17

Honda 90506-ZV5-020

SEE PART DETAILS - SUP; WASHER, PROPELLER THRUST
(Superseded to 90506-ZZ5-C00)

$55.99

$

Usually ships in 3-6 days

0

17

Honda 90506-ZZ5-C00

SEE PART DETAILS - PRI; WASHER, PROPELLER THRUST

$55.99

$

Usually ships in 3-6 days

0

18

Honda 90508-ZV5-000

WASHER (17MM)

$6.49

$

Usually ships in 3-6 days

0

19

Honda 90509-ZV5-000

WASHER, CLAW

$10.99

$

Usually ships in 3-6 days

0

20

Honda 90528-ZV5-000

SHIM, FR. BEVEL (51X57X0.10) (A)

$10.99

$

Usually ships in 3-6 days

0

20

Honda 90529-ZV5-000

SHIM, FR. BEVEL (51X57X0.15) (B)

$10.99

$

Usually ships in 3-6 days

0

20

Honda 90530-ZV5-000

SHIM, FR. BEVEL (51X57X0.30) (C)

$10.99

$

Usually ships in 3-6 days

0

20

Honda 90531-ZV5-000

SHIM, FR. BEVEL (51X57X0.50) (D)

$10.99

$

Usually ships in 3-6 days

0

21

Honda 90548-ZV5-010

WASHER, PLAIN (54MM)

$13.99

$

Usually ships in 3-6 days

0

22

Honda 90758-ZV5-000

PIN, SPLIT (4.0)

$2.99

$

Usually ships in 3-6 days

0

23

Honda 91051-ZV5-003

BEARING (32X58X17)

$48.99

$

Usually ships in 3-6 days

0

24

Honda 91053-ZV5-003

BEARING, NEEDLE (22X28X20)

$17.99

$

Usually ships in 3-6 days

0

25

Honda 91252-ZV5-003

SEAL, WATER (22X35X7)

Note: Use up to Frame SN 3403875.

$11.99

$

Usually ships in 3-6 days

0

25

Honda 91252-ZW4-003

SEAL, WATER (22X35X7)

Note: Use from Frame SN 3403876.

$7.99

$

Usually ships in 3-6 days

0

26

Honda 91351-ZV5-003

O-RING (66X5.7)

$5.99

$

Usually ships in 3-6 days

0

27

Honda 96100-60070-00

BEARING, RADIAL BALL (6007)

$26.99

$

Usually ships in 3-6 days

0

28

Honda 96211-11000

BALL, STEEL (#11) (11/32)

$1.49

$

Usually ships in 3-6 days

0

29

Honda 41201-ZV5-000

HOLDER, PROPELLER SHAFT

$97.99

$

Usually ships in 3-6 days

0
