BF50 A2 SRJA (BAZS) - Honda Marine Engine, Made in Japan (SN: BAZS-3220001 - BAZS-3299999) ENGINE COVER@LOWER CASE Parts Diagram

Marine Engine, Made in Japan

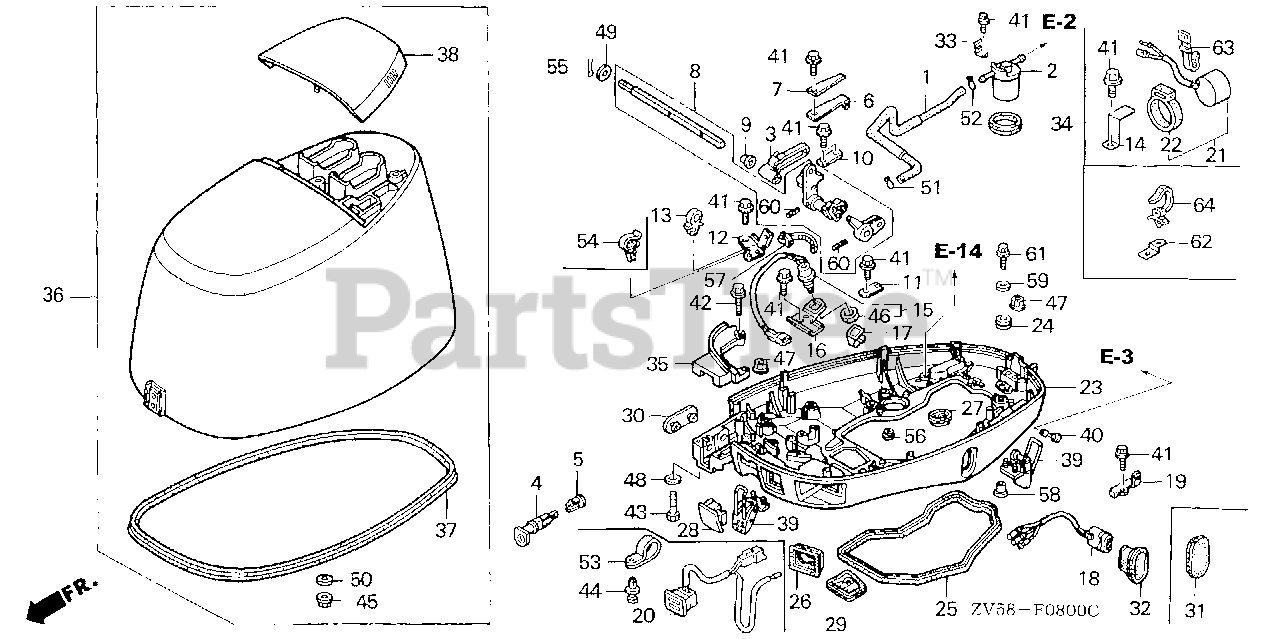

ENGINE COVER@LOWER CASE Parts Diagram

  • Title

1

Honda 16850-ZV5-000

TUBE, FUEL

$

$

Not available

2

Honda 16900-SA5-004

STRAINER, FUEL (TOYO ROKI)

$15.99

$

In Stock, only 1 left!

0

3

Honda 17930-ZV5-000

ARM, THROTTLE

$24.99

$

Usually ships in 3-6 days

0

4

Honda 17951-ZV5-000

KNOB, CHOKE

$14.99

$

Usually ships in 3-6 days

0

5

Honda 17953-ZV5-000

GUIDE, CHOKE KNOB

$8.99

$

Usually ships in 3-6 days

0

6

Honda 24210-ZV1-010

SEE PART DETAILS - PRI; SPRING, CLICK

$13.99

$

Usually ships in 3-6 days

0

7

Honda 24221-ZV4-010

SEE PART DETAILS - PRI; SPRING, CLICK ASSIST

$9.99

$

Usually ships in 3-6 days

0

8

Honda 24610-ZV5-010

SEE PART DETAILS - PRI; SHAFT, SHIFT

$65.99

$

Usually ships in 3-6 days

0

9

Honda 24621-ZV4-010

BUSH, SHAFT

$5.99

$

Usually ships in 3-6 days

0

10

Honda 24625-ZV5-000

SEE PART DETAILS - SUP; PLATE, SHIFT
(Superseded to 24625-ZV5-010)

$2.99

$

In Stock, only 1 left!

0

10

Honda 24625-ZV5-010

SEE PART DETAILS - PRI; PLATE, SHIFT

$2.99

$

In Stock, only 1 left!

0

11

Honda 24626-ZV5-000

SEE PART DETAILS - SUP; PLATE, SHIFT SHAFT
(Superseded to 24626-ZV5-010)

$2.99

$

Usually ships in 3-6 days

0

11

Honda 24626-ZV5-010

SEE PART DETAILS - PRI; PLATE, SHIFT SHAFT

$2.99

$

Usually ships in 3-6 days

0

12

Honda 32112-ZV5-000

SEE PART DETAILS - SUP; BRACKET, CABLE CLIP (S)
(Superseded to 32112-ZV5-010)

$

$

Not available

12

Honda 32112-ZV5-010

SEE PART DETAILS - PRI; BRACKET, CABLE CLIP (S)

$

$

Not available

13

Honda 32660-MJ6-710

CLAMP, WIRE

$4.99

$

In Stock, only 1 left!

0

15

Honda 04304-ZW9-010

SEE PART DETAILS - PRI; SWITCH ASSY., NEUTRAL
(Superseded to 04304-ZW9-020)

$39.99

$

Usually ships in 3-6 days

0

16

Honda 35616-ZV5-000

SEE PART DETAILS - SUP; BRACKET, NEUTRAL SWITCH
(Superseded to 35616-ZV5-010)

$11.99

$

Usually ships in 3-6 days

0

16

Honda 35616-ZV5-010

SEE PART DETAILS - PRI; BRACKET, NEUTRAL SWITCH

$11.99

$

Usually ships in 3-6 days

0

17

Honda 35618-ZV5-000

SEE PART DETAILS - SUP; PLATE, NEUTRAL SWITCH
(Superseded to 35618-ZW9-010)

$5.99

$

In Stock, only 1 left!

0

17

Honda 35618-ZW9-010

SEE PART DETAILS - PRI; PLATE, NEUTRAL SWITCH

$5.99

$

In Stock, only 1 left!

0

23

Honda 40101-ZV5-000ZA

CASE, ENGINE (LOWER) *NH282MU* (OYSTER SILVER METALLIC-U)

$

$

Not available

24

Honda 40102-ZV5-000

GROMMET, CASE (LOWER)

$3.99

$

Usually ships in 3-6 days

0

25

Honda 40103-ZV5-000

SEAL, CASE (LOWER)

$31.99

$

Usually ships in 3-6 days

0

26

Honda 40106-ZV5-000

GROMMET, CASE (LOWER) (B)

$10.99

$

Usually ships in 3-6 days

0

27

Honda 40107-ZV5-000

GROMMET, CASE (LOWER) (C)

$7.99

$

Usually ships in 3-6 days

0

28

Honda 40108-ZV5-000

GROMMET, CASE (LOWER) (D)

$

$

Not available

29

Honda 40109-ZV5-000

GROMMET, CASE (LOWER) (E)

$18.99

$

Usually ships in 3-6 days

0

30

Honda 40113-ZV5-000

GROMMET, CASE (LOWER) (F)

$

$

Not available

31

Honda 40114-ZV5-010

SEE PART DETAILS - PRI; GROMMET, CASE (LOWER)

$8.99

$

Usually ships in 3-6 days

0

33

Honda 40145-ZV5-000

RETAINER, FUEL STRAINER

$

$

Not available

34

Honda 40146-ZV5-000

GROMMET, FUEL STRAINER

$10.99

$

Usually ships in 3-6 days

0

35

Honda 40151-ZV5-000ZA

CASE, SEPARATE *NH282MU* (OYSTER SILVER METALLIC-U)

$70.99

$

Usually ships in 3-6 days

0

36

Honda 63100-ZV5-010ZA

SEE PART DETAILS - PRI; COVER, ENGINE *NH282MU* (OYSTER SILVER METALLIC-U)

$1013.99

$

Usually ships in 3-6 days

0

37

Honda 63102-ZV5-300

SEAL, ENGINE COVER

$78.99

$

Usually ships in 3-6 days

0

38

Honda 63105-ZV5-000ZA

HANDLE, TILT *NH282MU* (OYSTER SILVER METALLIC-U)

$

$

Not available

39

Honda 63240-ZV5-000

LEVER, FASTENER

$51.99

$

Usually ships in 3-6 days

0

40

Honda 82873-ZV5-000

GROMMET, WATER CHECK
(Superseded to 82873-ZV5-003)

$7.99

$

Usually ships in 3-6 days

0

41

Honda 90013-ZV0-010

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200)

$2.49

$

In Stock, only 3 left!

0

42

Honda 90015-ZV0-C10

BOLT, FLANGE (6X28) (CT200)
(Superseded to 90103-ZZ5-M01)

$2.99

$

Usually ships in 3-6 days

0

43

Honda 90120-ZV4-010

SEE PART DETAILS - PRI; BOLT, HEX. (6X40)

$3.49

$

Usually ships in 3-6 days

0

45

Honda 90301-473-003

NUT, U (6MM) (FUSE RASHI)

$5.99

$

Usually ships in 3-6 days

0

46

Honda 90302-ZV5-003

NUT, HEX. (20MM) Use up to Frame SN 1300359.

$7.49

$

Usually ships in 3-6 days

0

47

Honda 90205-PP9-020

NUT, SELF-LOCK (6MM)

$11.99

$

Usually ships in 3-6 days

0

48

Honda 90506-ZV4-000

WASHER, PLAIN (6MM) Use up to Frame SN 4800342.

$3.49

$

Usually ships in 3-6 days

0

49

Honda 90508-ZV1-000

WASHER (7.5MM)

$4.99

$

Usually ships in 3-6 days

0

50

Honda 90512-921-010

SEE PART DETAILS - PRI; WASHER (6MM)

$1.49

$

Usually ships in 3-6 days

0

51

Honda 90603-ZV4-000

CLIP, TUBE (B10)

$1.99

$

Usually ships in 3-6 days

0

52

Honda 90604-ZV0-000

SEE PART DETAILS - PRI; CLIP, TUBE (B12)

$1.99

$

Usually ships in 3-6 days

0

55

Honda 90756-881-000

SEE PART DETAILS - SUP; PIN, SPLIT
(Superseded to 90759-ZV1-000)

$1.99

$

Usually ships in 3-6 days

0

55

Honda 90759-ZV1-000

SEE PART DETAILS - PRI; PIN, SPLIT (2.0)

$1.99

$

Usually ships in 3-6 days

0

56

Honda 90801-SB0-000

PLUG, CHANGE REINFORCEMENT

$4.99

$

Usually ships in 3-6 days

0

57

Honda 91547-SF4-003

BAND, WIRE HARNESS (123.5MM) (BLUE)

$8.49

$

Usually ships in 3-6 days

0

58

Honda 91553-ZV5-000

SEE PART DETAILS - SUP; COLLAR, MODULE IGNITION CONTROL CASE (CDI)
(Superseded to 91553-ZV5-010)

$3.99

$

Usually ships in 3-6 days

0

58

Honda 91553-ZV5-010

SEE PART DETAILS - PRI; COLLAR, MODULE IGNITION CONTROL CASE (CDI)

$3.99

$

Usually ships in 3-6 days

0

59

Honda 90508-ZY3-000

WASHER, PLAIN (6MM)
(Superseded to 90508-ZZ5-M01)

$2.49

$

Usually ships in 3-6 days

0

60

Honda 94305-30203

PIN, SPRING (3X20)

$1.99

$

Usually ships in 3-6 days

0

61

Honda 90016-ZY3-000

BOLT, FLANGE (6X28)
(Superseded to 90016-ZZ5-M01)

$1.99

$

Usually ships in 3-6 days

0
