BF5 DH SHNA (BADC) - Honda Outboard Engine, Made in China (SN: BADC-1000001 - BADC-9999999) OIL PAN Parts Diagram

Outboard Engine, Made in China

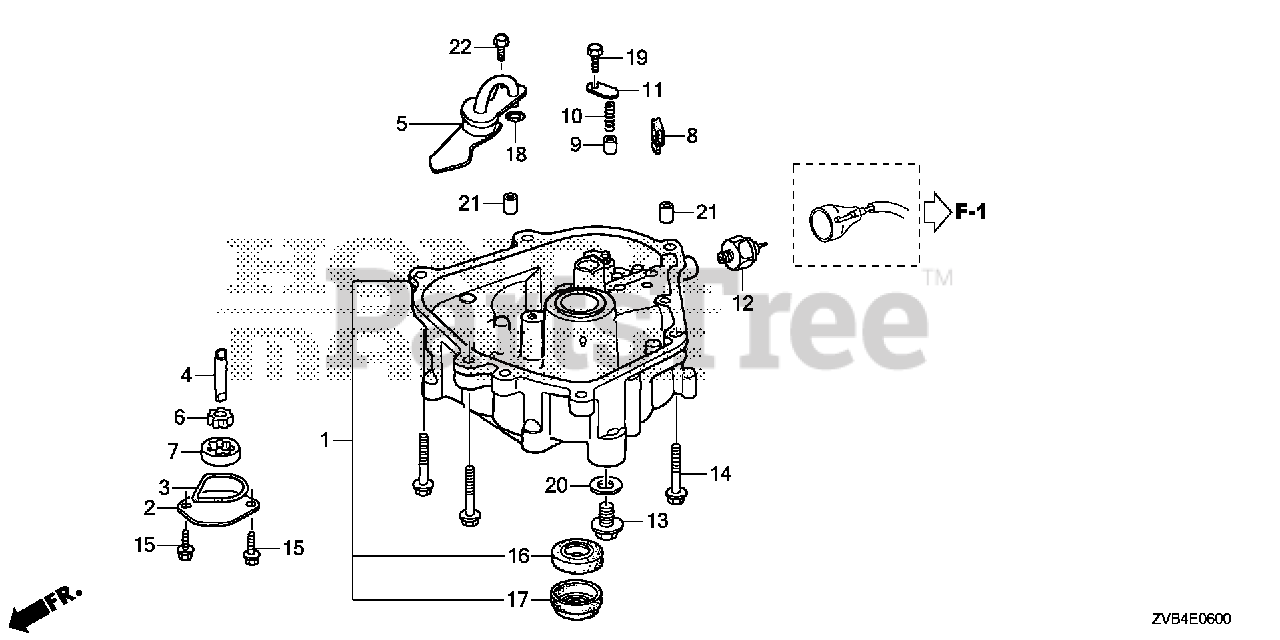

OIL PAN Parts Diagram

  • Title

1

Honda 11300-ZVD-000ZA

PAN ASSY., OIL *NH8* (DARK GRAY)

$187.99

$

Usually ships in 3-6 days

0

2

Honda 15130-ZVD-000

COVER, OIL PUMP

$7.49

$

Usually ships in 3-6 days

0

3

Honda 15131-ZVD-000

O-RING, PUMP COVER

$2.49

$

Usually ships in 3-6 days

0

4

Honda 15136-ZVD-000

SHAFT, OIL PUMP

$8.49

$

Usually ships in 3-6 days

0

5

Honda 15220-ZVD-000

STRAINER, OIL

$45.99

$

Usually ships in 3-6 days

0

6

Honda 15331-KRF-S00

ROTOR, OIL PUMP (INNER)

$17.99

$

Usually ships in 3-6 days

0

7

Honda 15332-KRF-S00

ROTOR, OIL PUMP (OUTER)

$21.99

$

Usually ships in 3-6 days

0

8

Honda 15335-ZVD-000

RUBBER, OIL RETURN

$2.99

$

Usually ships in 3-6 days

0

9

Honda 15473-ZVD-000

VALVE, CHECK

$7.49

$

Usually ships in 3-6 days

0

10

Honda 15474-ZVD-000

SPRING, CHECK VALVE

$3.99

$

Usually ships in 3-6 days

0

11

Honda 15475-ZVD-000

PLATE, CHECK VALVE

$3.49

$

Usually ships in 3-6 days

0

12

Honda 35490-ZW9-003

SWITCH ASSY., OIL PRESSURE

$46.99

$

In Stock, only 1 left!

0

13

Honda 90004-ZVD-000

BOLT, DRAIN PLUG (12MM)

$7.99

$

Usually ships in 3-6 days

0

14

Honda 90036-ZVD-000

BOLT, FLANGE (8X32)

$2.99

$

Usually ships in 3-6 days

0

15

Honda 90117-ZVA-000

BOLT, FLANGE (6X12)

$2.99

$

Usually ships in 3-6 days

0

16

Honda 91201-ZG9-U71

SEE PART DETAILS - PRI; OIL SEAL (25X38X7) (Honda Code 5230073).

$4.99

$

In Stock, Qty 7

0

16

Honda 91252-888-003

SEE PART DETAILS - SUP; OIL SEAL (25X38X7) (ARAI) (Honda Code 0671628).
(Superseded to 91201-ZG9-U71)

$4.99

$

In Stock, Qty 7

0

17

Honda 91255-ZV1-003

SEAL, COUPLING (25X40X14)

$15.99

$

Usually ships in 3-6 days

0

18

Honda 91309-ML7-003

SEE PART DETAILS - PRI; O-RING (9.6X2.6) (ARAI)

$3.49

$

Usually ships in 3-6 days

0

19

Honda 92101-06012-0A

SEE PART DETAILS - PRI; BOLT, HEX. (6X12) (Honda Code 3591500).

$1.99

$

Usually ships in 3-6 days

0

20

Honda 94109-12000

SEE PART DETAILS - PRI; WASHER, DRAIN PLUG (12MM) (Honda Code 0171868).

$1.99

$

In Stock, Qty 20+

0

21

Honda 94301-08140

SEE PART DETAILS - PRI; PIN A, DOWEL (8X14) (Honda Code 0069310).

$3.49

$

In Stock, Qty 8

0

22

Honda 96300-06012-00

BOLT, FLANGE (6X12)

$1.49

$

Usually ships in 3-6 days

0
