BF5 DH SHNA (BADC) - Honda Outboard Engine, Made in China (SN: BADC-1000001 - BADC-9999999) CAMSHAFT Parts Diagram

Outboard Engine, Made in China

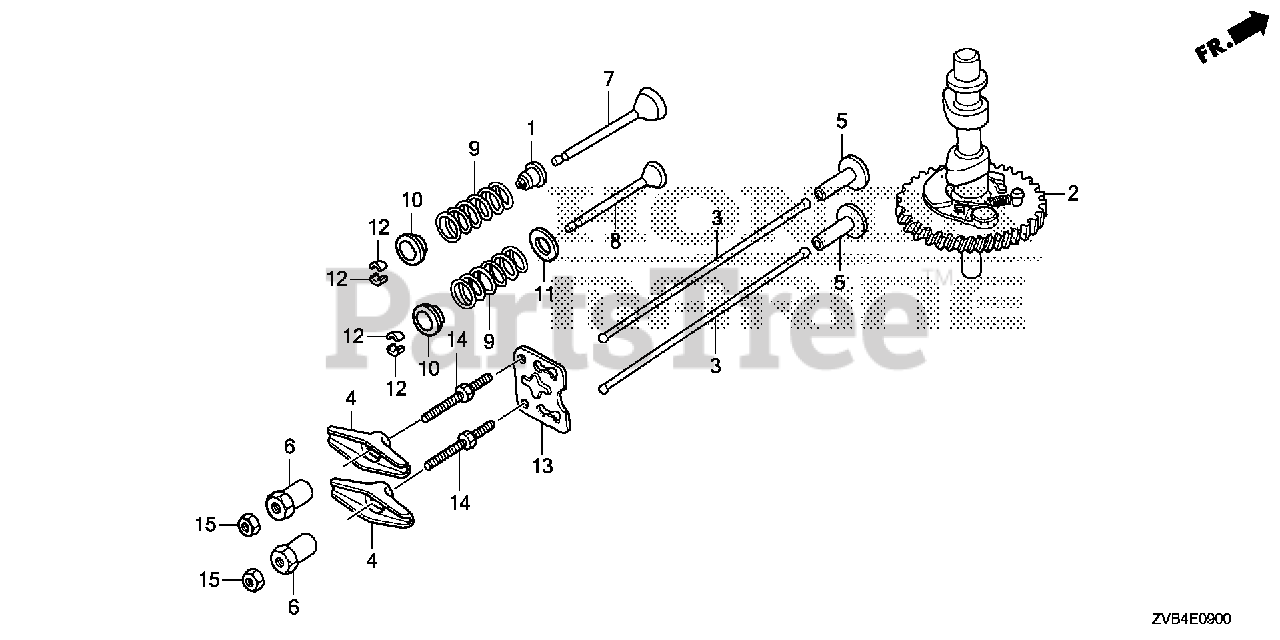

CAMSHAFT Parts Diagram

  • Title

1

Honda 12209-ZVD-G01

SEAL, VALVE STEM

$15.99

$

Usually ships in 3-6 days

0

2

Honda 14100-ZVD-000

CAMSHAFT ASSY.

$116.99

$

Usually ships in 3-6 days

0

3

Honda 14410-ZE1-010

SEE PART DETAILS - PRI; ROD, PUSH (Honda Code 3352655).

$8.49

$

In Stock, only 1 left!

0

4

Honda 14431-ZE1-000

ARM, VALVE ROCKER (Honda Code 1426824).

$7.99

$

In Stock, only 1 left!

0

5

Honda 14441-ZE1-010

SEE PART DETAILS - PRI; LIFTER, VALVE (Honda Code 5181383).

$14.99

$

Usually ships in 3-6 days

0

6

Honda 14451-Z7E-000

PIVOT, ROCKER ARM

$4.99

$

Usually ships in 3-6 days

0

7

Honda 14711-ZVD-000

VALVE, IN.

$21.99

$

Usually ships in 3-6 days

0

8

Honda 14721-ZVD-000

VALVE, EX.

$31.99

$

Usually ships in 3-6 days

0

9

Honda 14751-ZVD-000

SPRING, VALVE

$5.99

$

Usually ships in 3-6 days

0

10

Honda 14771-ZVD-000

RETAINER, VALVE SPRING

$6.49

$

Usually ships in 3-6 days

0

11

Honda 14775-ZVD-000

SEAT, VALVE SPRING

$1.99

$

Usually ships in 3-6 days

0

12

Honda 14781-107-003

COTTER, VALVE (SANKO)

$3.49

$

Usually ships in 3-6 days

0

13

Honda 14791-ZE1-010

PLATE, PUSH ROD GUIDE (Honda Code 1899947).

$4.49

$

Usually ships in 3-6 days

0

14

Honda 90012-ZE0-010

BOLT, PIVOT (8MM) (Honda Code 1756964).

$8.49

$

Usually ships in 3-6 days

0

15

Honda 90206-ZE1-000

NUT, PIVOT ADJ. (Honda Code 1431287).

$4.49

$

In Stock, Qty 6

0
